EGL 250cc Engine parts
MSIED -  www.LeMeilleurDuQuad.com

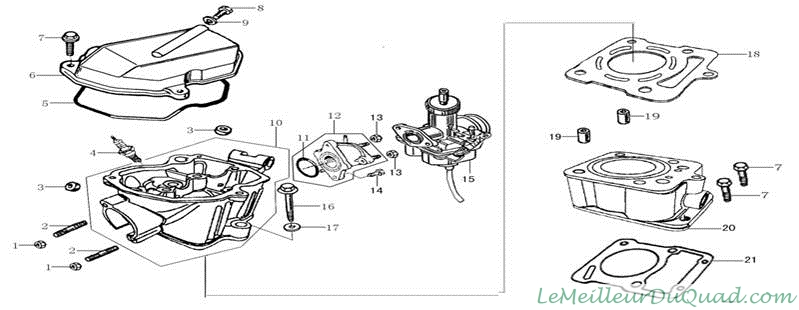

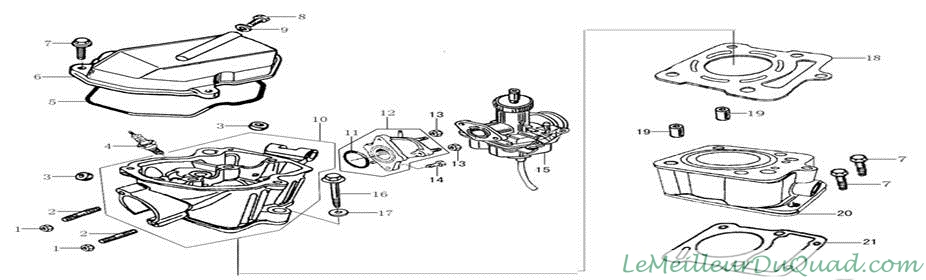

E-1 气缸 Cylinder Assembly
NO.	PARTS NO.	Accessory name	Description
1	B06170000800009	GB6170 nuts M8	NUT M8
2	91138-G012-0000	AX100 cylinder head exhaust port stud M8 × 36	STUD M8×36
3	1572B-I008-0000	CG125D gear oil cover combination	VALVE STEM SEAL  ASSY
4	81300-I006-0000	The CB125 spark plug (D8TC)	SPARK PLUG  (D8TC)
5	90103-LA51-0000	The SB200 cylinder head cover seals	SEAL RING, CYLINDER HEAD UPPER COVER
6	11226-LA73-0000	CG200-A water-cooled cylinder head cover	CYLINDER HEAD UPPER COVER
7	B05789000600287	Bolt M6 × 28	BOLT M6×28
8	B05789000600127	Bolt M6 × 12	BOLT M6×12
9	93301-70651012000	Aluminum gasket 6.5 × 1 × 12	WASHER 6.5×1×12
10	1122B-MA97-1000	CG250 water-cooled cylinder head assembly	CYLINDER HEAD ASSY
11	90101-20335000300	O-ring 33.5 x 3	O-RING 33.5×3
12	15800-L044-41HB	CB200 intake manifold combinations (JQ-41HB)	PIPE COMP,INTAKE (JQ-41)
13	B06170000600009	GB6170 nut M6	NUT M6
14	B0578300060020700	Bolt M6, × 20	BOLT M6×20
15	17100-MA97-0000	Carburettor	CARBURETOR ASSY
E-1 气缸 Cylinder Assembly
NO.	PARTS NO.	Accessory name	Description
16	91104-MA95-0000	CG250 cylinder head and cylinder bolts M8 × 86	BOLT M8×82
17	93301-80852218000	Copper washers 8.5 × 2.2 × 18	WASHER 8.5×2.2×18
18	9022B-MA97-0000	CG250 water-cooled cylinder head gasket combination	GASKET ASSY,CYLINDER HEAD
19	91521-10002000000	Locating pin 10 × 20	DOWEL PIN 10×20
20	1110B-MA97-0000	CG250 water-cooled cylinder block parts	CYLINDER BLOCK  COMP
21	90205-LA73-0000	Cylinder block gasket	GASKET,CYLINDER BLOCK

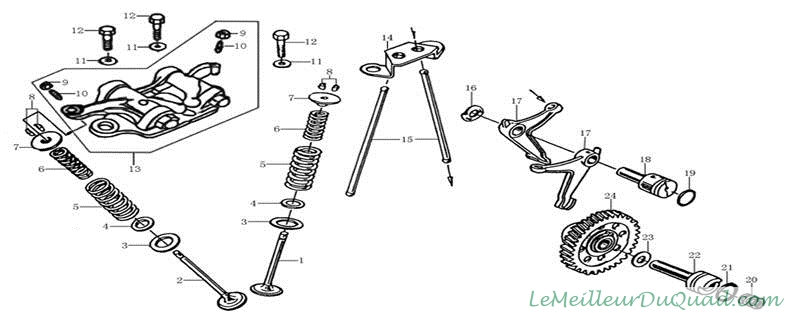

E-2 配气机构 Camshaft & Valves
NO.	PARTS NO.	Accessory name	Description
1	15701-LA01-0000	CB200-A oil cooling the intake valve	INLET VALVE
2	15702-LA01-0000	CB200-A oil cooled exhaust valve	OUTLET VALVE
3	15706-I008-0000	CG125D gas door spring seat	SPPING SEAT VALVE
4	15708-I008-0000	CG125D valve spring seat	INNER SPRING SEAT,VALVE
5	15703-I008-0000	CG125D gas outside the spring	OUTER SPRING
6	15704-I008-0000	CG125D valve within the spring	INNER SPRING
7	15705-I006-0000	CB125 valve spring bearing (Theravada)	RETAINER,VALVE SPRING
8	15707-I006-0000	CB125 gas door lock folder	VALVE COTTER
9	15403-I008-0000	CG125D valve clearance adjusting nut	ADJUSTING NUT,VALVE CLEARANGE
10	15404-I008-0000	CG125D valve clearance adjusting screw	ADJUSTING SCREW,VALVE CLEARANGE
11	93301-80852218000	Copper washers 8.5 × 2.2 × 18	WASHER 8.5×2.2×18
12	91180-IA20-0000	SB125 on the rocker arm bolts M8 × 33	BOLT M8×33
13	1540A-IA20-0000	SB125 valve rocker arm combination	ARM ROCKER ASSY
14	15501-LA73-0000	CG200-A water-cooled push rod guide tube	PUSH LEVER STAND
15	1532A-MA95-0000	CG250 putter Package	PUSH LEVER COMP
E-2 配气机构 Camshaft & Valves
NO.	PARTS NO.	Accessory name	Description
16	93303-51230220900	Wave washers, 12.3 × 0.2 × 20.9	WAVE WASHER 12.3×0.2×20.9
17	15407-I008-0000	CG125D under the rocker arm	LOWER ROCKER ARM
18	15408-I008-0000	CG125D under the rocker shaft	SHAFT,LOWER ROCKER ARM
19	90101-20180000250	O-ring 18 × 2.5	O-RING 18×2.5
20	15109-I008-0000	CG125D with camshaft spring	SPRING
21	90101-20200000250	O-ring 20 × 2.5	O-RING 20×2.5
22	15105-J034-0000	CG150D with gas cam mandrel	AIR MLET  CAM  SHAFT
23	93301-51421024000	Camshaft washer 14.2 × 1 × 24	THRUST WASHER 14.2×1×24
24	1510A-I008-0000	CG125D being driven gear parts	TIMING DRIVEN SPROCKET COMP

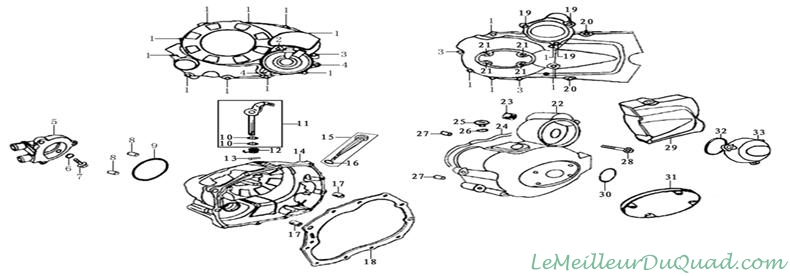

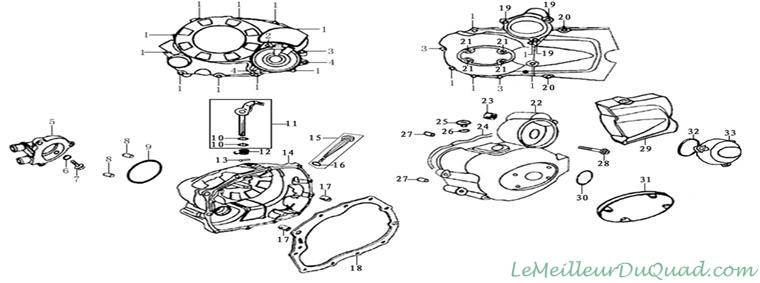

E-3 曲轴箱盖  Crankcase  Cover
NO.	PARTS NO.	Accessory name	Description
1	B166740A0600407	Small cap bolt M6 × 40	BOLT M6×40
2	B166740A0600167	Small cap bolt M6 × 16	BOLT M6×16
3	B166740A0600507	Small cap bolt M6 × 50	BOLT M6×50
4	B166740A0600257	Small cap bolt M6 × 25	BOLT M6×25
5	19001-IA20-0003	The SB125 pump cover	WATER PUMP COVER
6	90101-30085000190	O-ring 8.5 × 1.9 (fluorine rubber)	O-RING  8.5×1.9
7	91132-IA20-0000	SB125 water pump cover water bolts M8 × 10	BOLT M8×10
8	91521-08001200063	Locating pin 8 × 12 × 6.3	DOWEL PIN 8×12
9	90101-30630000265	O-ring 63 x 2.65 (fluorine rubber)	O-RING  65×2.65
10	90101-10090000180	O-ring 9 × 1.8	O-RING9×1.8
11	2242A-I006-0300	CB125-3 clutch operating arm combination	CLUTCH LEVER ASSY
12	22427-I006-0000	CB125 clutch operating arm spring	CLUTCH LEVER  SPRING3*12
13	B0087901030120000	GB879.1 pin 3 × 12	POSITION PIN
14	12421-IA20-0501	SB125 right crankcase cover -4 # only charged to start	R.CRANKCASE COVER ASSY
15	14301-I006-0000	CB125 oil foot combination	OIL RULER ASSY
E-3 曲轴箱盖  Crankcase  Cover
NO.	PARTS NO.	Accessory name	Description
16	90101-10180000300	O-ring 18 x 3	O-RING 18×3
17	91521-08001400000	Locating pin 8 × 14	DOWEL PIN 8×14
18	90206-I008-0000	CG125D right crankcase cover gasket	GASKET,R.CRANKCASE COVER
19	B166740A0600207	Small cap bolt M6 × 20	BOLT M6×20
20	B166740A0600287	Small cap bolt M6 × 28	BOLT  M6×28
21	B00818000600122	Screw M6 × 12	SCREW M6×12
22	12301-I008-1000	CG125D left crankcase cover (whale paragraph)	L.CRANKCASE COVER
23	92102-000HK101410	Needle bearing (HK101410,)	NEEDLE BEARING (HK101410)
24	90204-I008-0000	CG125D left crankcase front cover gasket	GASKET，L.CRANKCASE COVER
25	12303-G011-0000	C100 overlooked manhole covers	CAP, SMALL  SIGHT HOLE
26	90101-10132000265	O-ring 13.2 × 2.65	O-RING  13.2×2.65
27	91521-10001400000	Locating pin 10 × 14	DOWEL PIN 10×14
28	B166740A0600257	Small cap bolt M6 × 25	BOLT  M6×25
29	12302-I008-1000	CG125D left crankcase cover (whale models)	BACK COVER,L.CRANKCASE
30	90101-10274000265	O-ring 27.4 × 2.65	O-RING 27.4×2.65
E-3 曲轴箱盖  Crankcase  Cover
NO.	PRRTS NO.	Accessory name	Description
31	12307-I008-1000	CG125D left crankcase cover the decorative cover (whale paragraph)	DECORATE  COVER ,L.CRANKCASE
32	90101-10620000300	O-ring 62 x 3	O-RING 62×3
33	12308-I008-1000	CG125D double gear cover (whale paragraph)	COVER,REDUCTION GEAR

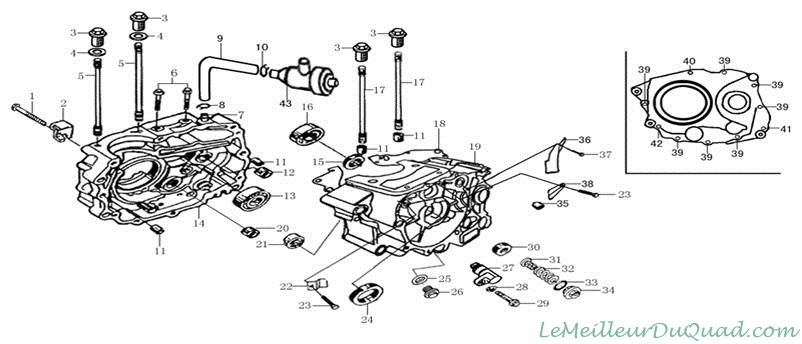

E-4 曲轴箱 Crankcase
NO.	PARTS NO.	Accessory name	Description
1	B166740A0600657	Small cap bolt M6 × 65	BOLT  M6×65
2	22422-I006-0001	CB125-2 # clutch wire rope bracket	CLUTCH CABLE  STAND
3	91212-I008-0000	CG125D nut M8 × 32	NUT  M8×32
4	93301-C125202200B	Flat washers 12.5 × 2 × 22	WASHER 12.5×2×22
5	91102-MA95-0000	CG250 cylinder stud B	STUD B
6	B05789000600287	Bolt M6 × 28	BOLT M6×28
7	12109-I006-0000	CB125 through the tracheal connector	BREATHER TUBE
8	16157-I008-0300	CG125D exhaust gas recirculation pipe clamp 15.3 (steel belt	BREATHER TUBE
9	12105-J034-0000	CG150D snorkel	BREATHER TUBE
10	16157-I008-0100	CG125D exhaust gas circulation pipe clamp 15.3	BREATHER TUBE
11	91521-10001400000	Locating pin 10 × 14	DOWEL PIN 10×14
12	92102-000NK152712	Needle Roller Bearings (NK152712)	NEEDLE BEARING (NK152712)
13	92102-00000006006	Bearings (6006)	BEARING (6006)
14	1222B-MA97-0000	CG250 water-cooled friction reverse right crankcase combination	R.CRANKCASE ASSY
15	90303-I006-0000	The CB125 Vice shaft seal 20 × 34 × 7	OIL SEAL 20×34×7
E-4 曲轴箱 Crankcase
NO.	PARTS NO.	Accessory name	Description
16	92102-00000006204	Bearings (6204)	BEARING (6204)
17	91101-MA95-0000	CG250 cylinder stud A	STUDA
18	90208-LA73-0000	CG200-A water-cooled crankcase gasket	GASKET,CRANKCASE
19	1212B-MA97-0000	CG250 water-cooled friction reverse left crankcase combination	L.CRANKCASE ASSY
20	92102-00000HK2110	Needle Roller Bearings (HK2110)	NEEDLE BEARING (HK2110)
21	92102-0000006202Z	Bearing (6202Z)	BEARING (6202Z)
22	12102-I008-0000	CG125D gear positioning plate	GEAR LOCATING PLATE
23	B05783000600127	Bolt M6 × 12	BOLT M6×12
24	90302-I008-0000	CG125D crankshaft oil seal 34 × 50 × 7	OIL SEAL 34×50×7
25	93301-71251520000	Aluminum washer 12.5 × 1.5 × 20	WASHER 12.5×1.5×20
26	91103-D002-0000	70 oil drain plug M12 × 1.5	DRAIN PLUG  M12x1.5
27	1213B-MA95-0000	The CG250 pressure off body combination	PRESSING PIN ASSY
28	93301-60671014400	Thrust washer 6.7 × 1 × 14.4	THRUST WASHER 6.7×1×14.4
29	B05783000600257	Bolt M6 × 25	BOLT M6×25
30	90301-I006-0000	The CB125 shift arm oil seal 14 × 28 × 7	OIL SEAL 14×28×7
E-4 曲轴箱 Crankcase
NO.	PARTS NO.	Accessory name	Description
31	1431B-I006-0000	CB125 oil filter combinations	OIL MESH SCREEN COMP
32	14221-I006-0000	CB125 oil filter spring	SPRING,OIL MESH SCREEN
33	90101-20350000300	O-ring 35 x 3	O-RING 35×3
34	11230-I006-0000	CB125 valve chamber cover	VALVE COVER
35	92102-00000HK101410	Needle bearing (HK101410,)	NEEDLE BEARING  (HK101410)
36	12103-I008-0000	CG125D block line piece	PLATE
37	B166740A0600127	Small cap bolts M6 x 12	BOLT M6×12
38	15108-I008-0000	CG125D camshaft baffle	POSITION PLATE ，CAMSHAFT
39	B166740A0600507	Small cap bolt M6 × 50	BOLT M6×50
40	B166740A0601007	Small cap bolt M6 × 100	BOLT M6×100
41	B166740A0600707	Small cap bolt M6 × 70	BOLT M6×70
42	B166740A0600607	Small cap bolt M6 × 60	BOLT M6×60
43	12162-MA75-0000	The LY250 oil and gas separator	SEPARATOR, FUEL AND AIR
E-5 机油泵 Oil Pump
NO.	PARTS NO.	Accessory name	Description
1	14200-IA20-0100	SB125-2 # oil filter parts	OIL FILTER COMP
2	14201-I006-0000	CB125 flowlines	EX-TUBE,OIL
3	B00820000500122	Screw M5 x 12	SCREW M5×12
4	14202-I006-0000	CB125 oil filter tubing spring	SPRING,EX TUBE
5	14207-I006-0000	CB125 oil filter cover	COVER,OIL FILTER
6	14208-I006-0000	CB125 oil filter cotter pin	COTTER PIN,OIL FILTER
7	90209-IA20-0000	The SB125 filter end cap seal	GASKET,FILTER HEAD COVER
8	14203-IA20-0100	SB125-2 # oil filter rotor components	OIL FILTER BODY
9	23101-I006-0000	CB125 driving gear	DRIVE GEAR
10	B00819010600302	Screw M6, × 30	SCREW  M6×30
11	14107-LA73-0000	CG200-A water-cooled gear drive shaft	DRIVE SHAFT, GEAR
12	14102-LA73-0000	CG200-A water-cooled machine oil pump gear	DRIVE GEAR,OIL PUMP
13	14110-LA73-0000	CG200-A water-cooled machine pump housing	OIL PUMP CASING
14	14112-LA73-0000	CG200-A water-cooled oil pump outer rotor	OUTER ROTOR,OIL PUMP
15	14111-LA73-0000	CG200-A water-cooled oil pump inner rotor	INNER ROTOR,OIL PUMP
E-5 机油泵 Oil Pump
NO.	PARTS NO.	Accessory name	Description
16	14108-I006-0000	The CB125 machine oil pump cover	OIL PUMP COVER
17	B00819000400122	Screw M4 x 12	SCREW M4×12
18	90101-10094000240	O-ring 9.4 × 2.4	O-RING 9.4×2.4
19	14100-LA73-0000	CG200-A water-cooled machine pump parts	OIL PUMP ASSY

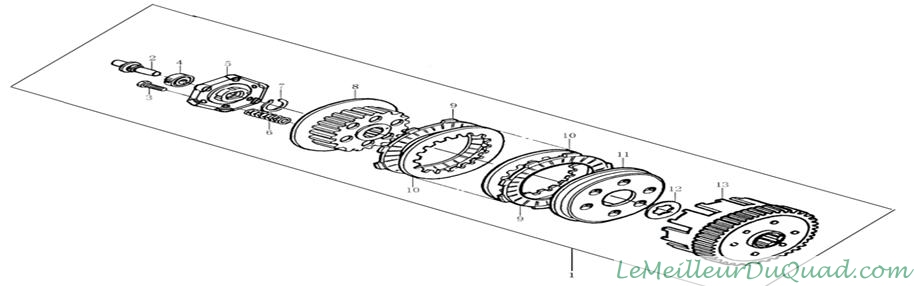

E-6 离合器 Clutch
NO.	PARTS NO.	Accessory name	Description
1	22000-MA96-0000	CB250 clutch assembly	CLUTCH COMP
2	22403-I006-0000	CB125 clutch putt	PUSH ROD,CLUTCH
3	91129-I008-0000	CG125D clutch flange bolt M6 × 25	BOLT M6×25
4	92102-00000016003	Bearings (16003)	BEARING (6001)
5	22121-LA12-0000	CG200-B clutch end cap combination	END COVER,CLUTCH
6	22142-LA73-0000	CG200-A water-cooled clutch spring	SPRING,CLUTCH
7	91403-I008-0000	CG125D clutch retaining ring 20	CIRCLIP 20
8	22105-LA73-0000	CG200-A water-cooled clutch center	CENTRAL SLEEVE.,CLUTCH
9	22214-LA73-0000	CG200-A water-cooled clutches active friction plate	FRICTION PLATE ASSY
10	22215-LA73-0000	CG200-A water-cooled clutch friction plate	FRICTION PLATE ASSY
11	22122-LA73-0100	CG200-A water-cooled clutch pressure plate	CLUTCH PRESSING PLATE
12	22002-I006-0000	CB125 clutch flower key washers	SPLINE WASHER
13	22150-LA73-0100	CG200-A water-cooled clutch housing combination	CLUTCH OUTER CASE COMP

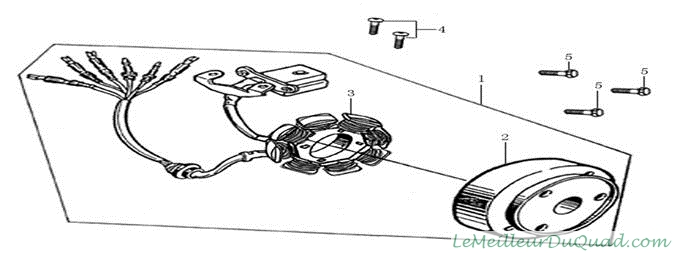

E-7磁电机总成Magneto Comp
NO.	PARTS NO.	Accessory name	Description
1	82100-I008-0000	CG125D magnetic motor	MAGNETO
2	82130-I008-0000	CG125D magneto rotor combination	ROTOR ASSY,MAGNETO
3	82120-I008-0100	CG125D magneto stator combination	STATOR ASSY,MAGNETO
4	B00823000500162	Screw M5 x 16	SCREW M5×16
5	B05783000500257	Bolt M5 × 25	BOLT M5×25

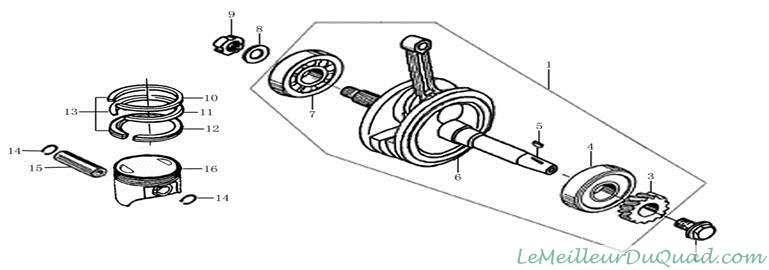

E-8 曲轴、活塞、连杆部件 Crankshaft 、 Piston、Connecting rod comp
NO.	PARTS NO.	Accessory name	Description
1	1320B-MA97-0000	CG250 water-cooled crankshaft connecting rod parts	CRANKSHAFT CONNECTING ROD ASSY
2	91106-I008-0000	CG125D magnetic motor mounting bolts M10 × 36	BLOT M10×36
3	13222-I008-0000	CG125D crankshaft driving gear	CRANKSHAFT TIMING GEAR
4	92102-0063-28-1RS	Bearing (63/28-1RS,)	BEARING (63/28-1RS)
5	91601-I006-0000	CB125 magneto Woodruff Key 25 × 14 × 4	SEMICIRCLE KEY 25×14×4
6	13220-MA97-0000	CG250 water-cooled crankshaft connecting rod combination	CONNECTING ROD COMP 3
7	92102-0063-28-1P5	Bearing (63/28/1P5,)	BEARING(63/28/1P5)
8	22004-I006-0000	CB125 clutch dish washer	DISH WASHER
9	91203-I008-0000	CG125D oil filter nut	NUT, OIL FILTER
10	13103-L067-0000	LY200 piston ring 1	PISTON RING 1
11	13104-L067-0000	LY200 piston ring 2	PISTON RING 2
12	13120-L067-0000	Oil ring combination	OIL RING ASSY
13	1310A-L067-0000	LY200 piston ring assembly	PISTON RING COMP
14	91401-L067-0000	LY200 piston pin circlip	CLIPCLIP, PISTON PIN
15	13102-LA51-0000	SB200 piston pin	PISTON PIN
16	13101-MA95-0000	CG250 piston	PISTON

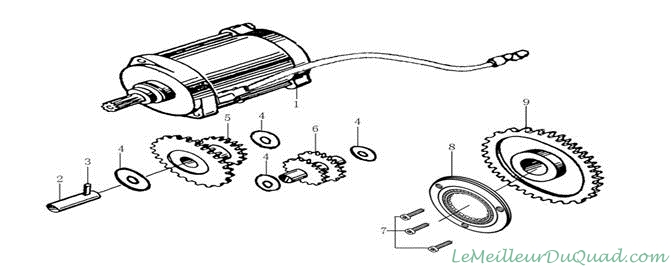

E-9电启动机构  ELECTRIC STARTING MECHANISM
NO.	PARTS NO.	Accessory name	Description
1	82200-LA73-0002	CG200-A water-cooled starter motor parts	STARTING MOTOR ASSY
2	21402-I008-0000	CG125D double gear shaft	GEARSHAFT,CONNECTED
3	91522-03000600000	Double gear shaft locating pin 3 × 6	LOCATING PIN 3×6
4	93301-51050518000	Washer 10.5 × 0.5 × 18	WASHER 10.5×0.5×18
5	2140A-I008-0000	CG125D double gear (a)	GEAR,CONNECTED,1
6	21401-I008-0000	CG125D double gear (2)	GEAR,CONNECTED,2
7	B0070010800187	Screw the M8 x 18	SCREW  M8×18
8	21300-LA73-0000	CG200-A water-cooling start clutch assembly	STARTER CLUTCH COMP.
9	21422-LA73-0000	CG200-A water-cooling start gear	STARTER GEAR

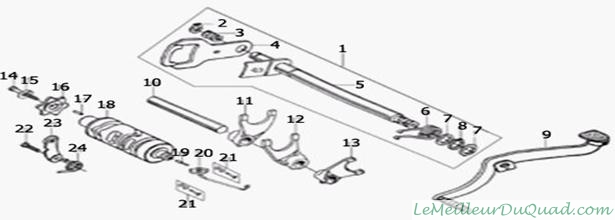

E-10变速机构 GEARSHIFT MECHANISM
NO.	PARTS NO.	Accessory name	Description
1	24300-LA73-0100	CG200-A water-cooled shift arm parts	ASSEMBLY, GEARSHIFT LEVER
2	B0089401120000000	Retaining ring 12	CIRCLIP 12
3	24303-I006-0000	The CB125 shift plate spring	SPRING, GEARSHIFT LEVER
4	24319-I008-0000	CG125D shift plate	LEVEL, GEARSHIFT
5	24301-LA73-0000	CG200-A water-cooled shift axis combination	GEARSHIFT SHAFT
6	24302-I008-0000	CG125D shift return spring	RETURN SPRING, GEARSHIFT LEVER
7	93301-51400520000	Shift arm washer 14 × 0.5 × 20	WASHER 14×0.5×20
8	B0089401140000000	Retaining ring 14	CIRCLIP 14
9	24400-I008-0016	CG125D variable speed pedal (BT-16)	PEDAL, GEARSHIFT  (BT-16)
10	24107-I006-0000	CB125 shift fork shaft	SHAFT, FORK
11	24104-I006-0000	The CB125 Vice right axis shift fork	RIGHT FORK, COUNTERSHAFT
12	24106-I006-0000	CB125 spindle Plectrum	CENTER FORK, MAINSHAFT
13	24105-MZ01-0000	The layshaft friction and the protection CG250D reverse left shift fork	LEFT FORK, COUNTERSHAFT
14	B05783000600257	Bolt M6 × 25	BOLT M6×25
15	B00093000600000	Elastic cushion 6	WASHER 6
E-10变速机构 GEARSHIFT MECHANISM
NO.	PARTS ORDER	Accessory name	Description
16	24202-I008-0600	CG125D five-star board	STOPPING PLATE
17	B0011901040100000	Pin 4 × 10	PIN  4×10
18	24213-MZ01-0000	The Friction protection CG250D reverse variable speed drum	GEARSHIFT DRUM
19	88004-JZ02-0000	Friction the protection CG150D reverse file obviously moving contact	CONTACT，CEARINDICATION
20	88031-JZ02-0000	Friction protect CG150D reverse file significantly harness combination	CABLE ASSEMBLY, GEAR INDICATION
21	9115B-JZ02-0000	Friction protect CG150D reverse file significantly screw combination	BOLTM5×20
22	91115-I008-00000B	CG125D stalls positioning plate bolts	BOLTM6×20
23	2434A-I008-0100	CG125D positioning plate combination	LOCATING PLATE UNIT
24	24304-I006-0000	CB125 positioning plate return spring	RETURN SPRING, LOCATING PLATE

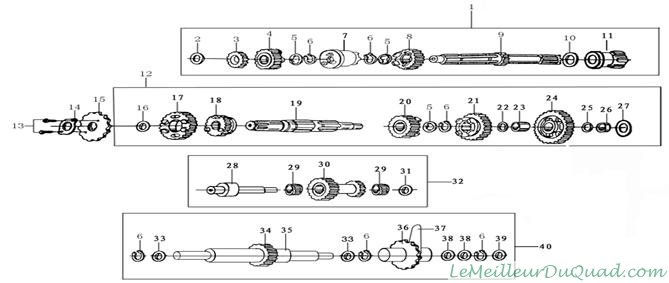

E-11传动机构 TRANSMISSION MECHANISM
NO.	PARTS NO.	Accessory name	Description
1	23220-MZ01-0000	Friction to protect CG250D reverse spindle combination	MAIN SHAFT ASSY
2	93301-E1521002500	Spindle thrust washers 15.2 × 1 × 25	THRUST WASHER 15.2×1×25
3	23222-LA73-0002	CG200-A water-cooled spindle gear	MAINSHAFT 2ND SPEED GEAR
4	23222-MZ01-0000	Friction and protect the CG250 electric reverse gear spindle 4 speed gear	MAINSHAFT 4ND SPEED GEAR
5	23223-I006-0000	The CB125 gear spacer 17.3 (20) × 1.6 × 26	SPACER WASHER17.3(20)×1.6×26
6	91402-D002-0100	70 start shaft retaining ring φ18.5 × 1.2 × φ22.1	CIRCLIP 18.5×1.2×φ22.1
7	23229-MZ01-0000	Friction to protect CG250D reverse spindle slider	REVERSE GEAR,COUNTERSHAFT
8	23222-LA73-0003	CG200-A water-cooled spindle gear	MAINSHAFT 3TH SPEED GEAR
9	23221-LA73-0000	CG200-A water-cooled spindle mandrel	PIVOT, MAINSHAFT
10	93301-62020527000	The CB125 spindle thrust washers 20.2 × 0.5 × 27	THRUST WASHER  20×0.5×27
11	23231-JZ02-0000	The friction protect CG150D reverse starter gear combinations	ASSEMBLY, STARTING GEAR
12	23240-MZ01-0000	The layshaft combination of the friction the protection CG250D reverse	ASSEMBLY, COUNTERSHAFT
13	B0578300060010700	Bolt M6 × 10	BOLT M6×10
14	23402-I006-0000	CB125 initiative sprocket fixing plate	FIXING PLATE, DRIVE SPROCKET
15	23401-I008-0008	CG125D initiative sprocket (428.15)	DRIVE SPROCKET

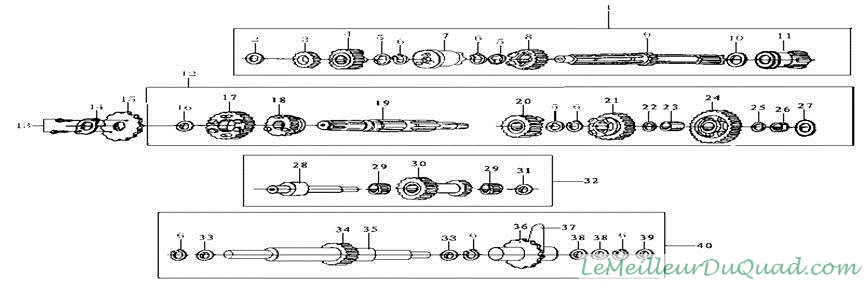

E-11传动机构 TRANSMISSION MECHANISM
NO.	PARTS NO.	Accessory name	Description
16	93301-61521030000	CB125 layshaft thrust washer 15.2 × 1 × 30	THRUST WASHER 20×1×27
17	23242-LA73-0002	CG200-A water-cooled, vice-axis gear	COUNTERSHAFT 2ND SPEED GEAR
18	23242-MZ01-0004	Friction the protection CG250D reverse gear layshaft gear	4ND SPEED GEAR
19	23241-MZ01-0000	Friction the protection CG250D reverse, vice-axis mandrel	PIVOT, COUNTERSHAFT
20	23243-MZ01-0000	The Friction protection CG250D reverse gear	REVERSE GEAR,COUNTERSHAFT
21	23242-MZ01-0003	Friction the protection CG250D reverse gear layshaft gear	COUNTERSHAFT 3RD SPEED GEAR
22	93301-E1650524000	Thrust washers	THRUST WASHER 15×1×30
23	23203-I006-0001	CB125 Vice shaft gear bushing	COUNTERSHAFT 4TH SPEED GEAR
24	23242-LA73-0001	CG200-A water-cooled, vice-axis gear	SPACER WASHER
25	93301-61650524000	CG125D layshaft thrust washer 16.5 × 0.5 × 24	BUSH,COUNTERSHAFT 1ST SPEED GEAR
26	23247-JZ02-0000	Friction the protection CG150D reverse countershaft gear sleeve	COUNTERSHAFT 1ST SPEED GEAR
27	93301-61521030000	CB125 layshaft thrust washer 15.2 × 1 × 30	BUSH, STARTING GEAR, COUNTERSHAFT
28	23608-JZ02-0000	Friction protection CG150D reverse double gear shaft	SHAFT,REDUCTION GEAR
29	92102-000HK121810	Needle bearing (HK121810,)	NEEDLE  BEARING
30	23607-MZ01-0000	Friction and protect the CG250 electric reverse double gear	GEAR,REOULTION

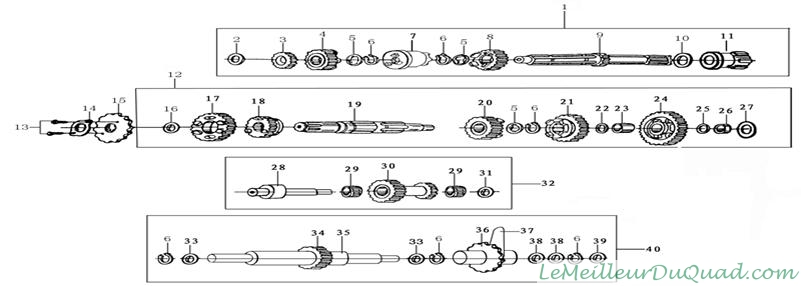

E-11传动机构 TRANSMISSION MECHANISM
NO.	PARTS NO.	Accessory name	Description
31	93301-61201018000	Double-toothed washer 12 × 1 × 18	SHAFT,REDUCTION O-PING
32	2360B-MZ01-0000	Double axis of combination of friction protection CG250D reverse	GEAR,REOULTION ASSEMBLY
33	23223-I008-0000	CG125D gear spacer	THRUST WASHER
34	23604-MZ01-0000	The friction the protection CG250D reverse idler	IDLE GEAR CONP
35	23602-JZ02-0000	Friction protection CG150D reverse idler	IDLE GEAR CONP STARTEAR
36	23236-MZ01-0000	Friction to protect CG250D reverse friction gear	COUNTERSHAFT 1ST SPEED
37	23245-JZ02-0000	The friction protect CG150D reverse the lock plate	LOCK UP PLY
38	93301-52020527000	Thrust washers 20.2 × 0.5 × 27	THRUST WASHER 20.2×0.5×27
39	93301-61201018000	Friction and protect the reverse double-axis washer 12 × 1 × 18	WASHER
40	23601-MZ01-0000	The friction the protection CG250D reverse idler combination	ASSEMBLY IDLE GEAR CONP
