300cc Four-valve engine
Engine Parts Service Manual （REVERSE） |
| |
|
MSIED -
www.LeMeilleurDuQuad.com |
|
|
|
|
|
|

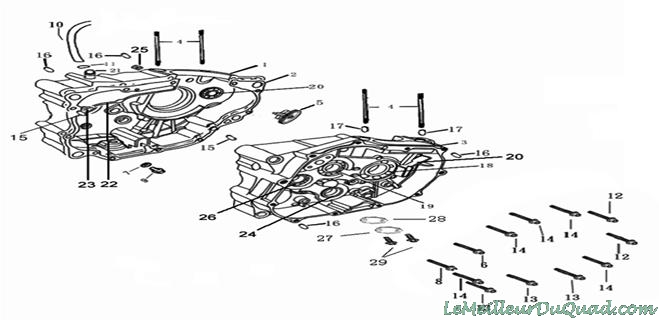

| A-01 曲轴箱 CRANKCASE |
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 1 |
M10-111100-00 |
Left crankshaft box |
LEFT CRANKCASE
ASSY |
73A-01201-00-00 |
|
|
|
|
|
| 2 |
M10-110001-00 |
Crankcase gasket |
SEAL
COVER,CRANKCASE |
73A-08201-00-00 |
|
|
|
|
|
| 3 |
M10-112100-00 |
Right crankshaft box |
RIGHT
CRANKCASE ASSY |
73A-01101-00-00 |
|
|
|
|
|
| 4 |
M40-120001-00 |
Cylinder head stud |
STUD,CYLINGDER |
73A-02422-00-00 |
|
|
|
|
|
| 5 |
M10-133100-00 |
Balance shaft
components |
BALANCE
SHAFT ASSY |
73A-17320-00-00 |
|
|
|
|
|
| 6 |
GB/T16674 |
Hexagon bolts with
flange M6 × 85 |
HEXAGON
FLANGE BOLT |
S-6001-06085-07 |
|
|
|
|
|
| 7 |
GB/T97.1-12 |
Aluminum washer |
ALUMINIUM
SEAL COVER |
S-4101-12225-40 |
|
|
|
|
|
| 8 |
GB/T16674 |
Hexagon bolts with
flange M6 × 80 |
HEXAGON
FLANGE BOLT |
S-2800-12015-07 |
|
|
|
|
|
| 9 |
M10-112001-00 |
Oil drain plug M12 ×
1.5 × 15 |
SEAL,JETTISON |
S-2800-12015-01 |
|
|
|
|
|
| 10 |
M10-111001-00 |
Exhaust pipe 01 |
BREATHER
TUBE.01 |
73A-01241-00-00 |
|
|
|
|
|
| 11 |
M10-111002-00 |
Exhaust pipe clip |
WASTE
PIPE CLAMP |
A-4201-15120-00 |
|
|
|
|
|
| 12 |
GB/T16674 |
Hexagon bolts with
flange M6 x 35 |
HEXAGON
FLANGE BOLT |
S-6001-06035-07 |
|
|
|
|
|
| 13 |
GB/T16674 |
Hexagon bolts with
flange M6 × 55 |
HEXAGON
FLANGE BOLT |
S-6001-06055-07 |
|
|
|
|
|
| 14 |
GB/T16674 |
Hexagon bolts with
flange M6 × 70 |
HEXAGON
FLANGE BOLT |
S-6001-06070-07 |
|
|
|
|
|
| 15 |
M10-110004-00 |
Locating pin 10 × 14 |
PILOT
PIN 10×14 |
S-4301-10140-00 |
|
|
|
|
|
| A-01 曲轴箱 CRANKCASE |
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 16 |
M10-110004-00 |
Locating pin 8 × 14 |
PILOT PIN 8×14 |
S-4301-08120-00 |
|
|
|
|
|
| 17 |
M10-110007-00 |
Locating pin 12 × 16 |
PILOT
PIN 12×16 |
S-4301-12160-00 |
|
|
|
|
|
| 18 |
GB/T276 |
Bearing 63/28 |
BEARING
63/28 |
S-6120-06328-00 |
|
|
|
|
|
| 19 |
GB/T276 |
Bearing 6204N |
BEARING
6203 |
S-6120-06204-00 |
|
|
|
|
|
| 20 |
GB/T276 |
Bearing 6301 |
BEARING
6301 |
S-6120-06301-00 |
|
|
|
|
|
| 21 |
|
Snorkel connector |
BREATHER
JOINT |
73A-01111-00-00 |
|
|
|
|
|
| 22 |
GB/T276 |
Bearing 6 202-2RS |
BEARING
6202-2RS |
S-6120-06202-40 |
|
|
|
|
|
| 23 |
GB/T276 |
Bearing 62/22 ×
1-RS6204DU |
BEARING
62/22×１-ＲＳ 6204DU |
S-6120-06204-30 |
|
|
|
|
|
| 24 |
GB/T290 |
Needle Roller
Bearings HK202610 |
ROLLING
BEARING HK2010 |
S-6130-02010-40 |
|
|
|
|
|
| 25 |
GB/T290 |
Needle Roller
Bearings HK101410 |
ROLLING
BEARING HK101410 |
S-6130-01010-40 |
|
|
|
|
|
| 26 |
GB/T276 |
Bearing 6203 |
BEARING
6204N |
S-6120-06203-00 |
|
|
|
|
|
| 27 |
M10-112101-00 |
External
filter cover |
|
|
|
|
|
|
|
| 28 |
M10-112102-00 |
Rubber
gasket |
|
|
|
|
|
|
|
| 29 |
GB/T16674 |
Hexagon bolts with
flange M6 × 20 |
HEXAGON
FLANGE BOLT |
|
|
|
|
|
|

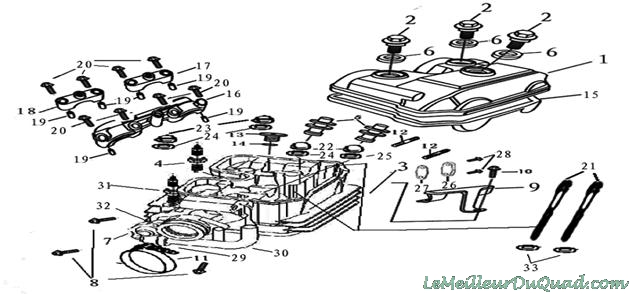

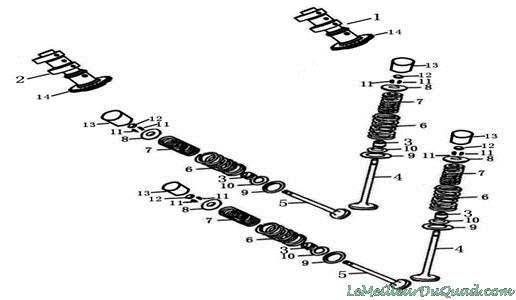

| A-02
气缸头、气缸头盖 CYLINDER HEAD,CYLINDER HEAD COVER |
|
| 序号 |
零部件代号 |
Parts name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 1 |
M40-121001-00 |
Cylinder head
cover |
COVER,CYLINDER
HEAD |
73A-02310-00-00 |
|
|
|
|
|
| 2 |
M40-121038-00 |
Cylinder
head cover bolts |
CYLINDER
COVER BOLT |
73A-02341-00-00 |
|
|
|
|
|
| 3 |
M40-121100-00 |
Cylinder
Head |
CYLINDER
HEAD |
73A-02101-00-00 |
|
|
|
|
|
| 4 |
M40-121400-00 |
Spark
plug |
SPARK PLUG |
73A-23111-02-00 |
|
|
|
|
|
| 5 |
M40-121043-00 |
Cylinder
head nylon plug |
NYLON
SEAL,CYLINDER HEAD |
73A-02107-00-00 |
|
|
|
|
|
| 6 |
M40-121039-00 |
Cylinder
head cover bolt seals |
BOLT
SEAL,CYLINDER |
73A-08214-00-00 |
|
|
|
|
|
| 7 |
M40-121301-00 |
Intake
manifold components |
INLET
PIPE |
|
|
|
|
|
|
| 8 |
GB/T16674 |
Hexagon
bolts with flange M6 × 20 |
HEXAGON
FLANGE BOLT |
S-6000-06020-07 |
|
|
|
|
|
| 9 |
M40-144006-00 |
Chain
guide frame |
LEADING
BOGIE,CHAIN |
73A-03122-00-00 |
|
|
|
|
|
| 10 |
GB/T16674 |
Hexagon
bolts with flange M6 × 16 |
HEXAGON
FLANGE BOLT |
S-6000-06016-07 |
|
|
|
|
|
| 11 |
M40-121302-00 |
Into
the tracheal clamp |
CLAMP,INLET
PIPE |
|
|
|
|
|
|
| 12 |
M10-121008-00 |
Muffler
stud 8 × 45 |
STUP,MUFFLER 8×45 |
S-2716-08045-40 |
|
|
|
|
|
| 13 |
|
Hexagon
head bolt plug M18X1.2 |
STUB
BOLT 8X45
汽缸头自带 |
73A-02144-00-00 |
|
|
|
|
|
| 14 |
|
O-ring
18X1.8 |
BOLT
18X1.2
汽缸头自带 |
S-1305-18180-00 |
|
|
|
|
|
| 15 |
M40-121002-00 |
Cylinder
head cover seals |
SEAL,CYLINDER
HEAD COVER |
73A-02311-00-00 |
|
|
|
|
|
| 16 |
M40-121041-00 |
Camshaft
gland |
CAMSHAFT
COVER |
73AA03142-00-00 |
|
|
|
|
|
| A-02
气缸头、气缸头盖 CYLINDER HEAD,CYLINDER HEAD COVER |
|
| 序号 |
零部件代号 |
Parts name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 17 |
M40-121042-00 |
Exhaust
camshaft gland |
OUTLET
CAMSHAFT COVER |
73AA03144-00-00 |
|
|
|
|
|
| 18 |
M40-121042-00 |
Into
the gas camshaft gland |
INLET
CAMSHAFT COVER |
73AA03143-00-00 |
|
|
|
|
|
| 19 |
M40-110006-00 |
Locating
pin 8 × 14 |
PIN
8×14 |
S-4301-08140-00 |
|
|
|
|
|
| 20 |
GB/T16674 |
Hexagon
bolts with flange M6 × 40 |
HEXAGON
FLANGE BOLT |
S-6001-06040-07 |
|
|
|
|
|
| 21 |
GB/T16674 |
Hexagon
bolts with flange M6 × 140 |
HEXAGON
FLANGE BOLT |
S-6001-06140-03 |
|
|
|
|
|
| 22 |
GB/T6187.1-10 |
Flange
locking nuts M10x1.25 |
Locknut
M10x1.25 |
S-4051-10000-03 |
|
|
|
|
|
| 23 |
GB/T6187.1-10 |
Flange
locking nuts M10x1.25 |
Locknut
M10x1.25 |
S-4006-10000-07 |
|
|
|
|
|
| 24 |
GB/T97.1 |
Washer
10 × 18 × 2 |
ALUMINIUM
SEAL |
S-4101-10186-23 |
|
|
|
|
|
| 25 |
M40-120005-00 |
White
zinc, iron copper washers 10 × 18 × 2 |
Washer,
cuprum 10x18x2 |
S-4101-10186-23 |
|
|
|
|
|
| 26 |
M40-121044-00 |
Secondary
air intake cover |
LOCK
PLATE AIR CLEANER |
73A-18117-00-00 |
|
|
|
|
|
| 27 |
M40-121025-00 |
Secondary
Air Inlet gasket |
LOCK
WASHER AIR CLEANER |
73A-18119-00-00 |
|
|
|
|
|
| 28 |
GB/T16674 |
Hexagon
bolts with flange M6 × 16 |
HEXAGON
FLANGE BOLT |
S-6000-06016-07 |
|
|
|
|
|
| 29 |
GB/T3452.1 |
Pipe
joint seals |
SEAL,OUTLET
PIPE |
|
|
|
|
|
|
| 30 |
M40-190001-00 |
Pipe
joints |
OUTLET
PIPE |
|
|
|
|
|
|
| 31 |
M40-190300-00 |
Water
temperature sensor |
Water
temperature sensor |
|
|
|
|
|
|
| 32 |
M40-090016-00 |
Section
temperature control ring |
O-RING |
|
|
|
|
|
|

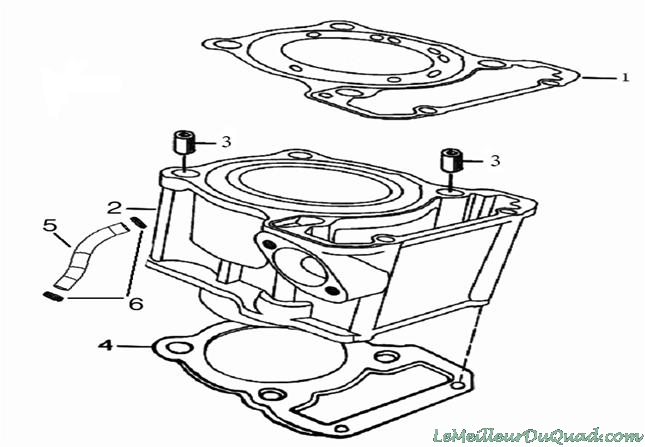

| A-03 气缸体 CYLINDER BODY |
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 1 |
M40-121200-00 |
The cylinder
head gasket (TW) single |
SEAL CYLINDER
HEAD |
73A-02412-00-00 |
|
|
|
|
|
| 2 |
M40-122100-00 |
Cylinder
block Package |
CYLINDER
COMP |
73A-02400-00-00 |
|
|
|
|
|
| 3 |
M10-110007-00 |
Locating
pin 12 × 18 |
PIN
12×18 |
S-4301-12200-00 |
|
|
|
|
|
| 4 |
M10-122001-00 |
Cylinder
block gasket |
SEAL
CYLINDER |
73A-08216-00-00 |
|
|
|
|
|
| 5 |
M10-190002-00 |
Cooling
water pipe A |
COOLING
PIDE.A |
73A-06514-00-00 |
|
|
|
|
|
| 6 |
QC/T619-1999 |
Water
pipe clamp |
CLAMP |
F01-06524-00-00 |
|
|
|
|
|
| A-04 配气机构 AIR INLET
EXHAUSH |
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 1 |
M40-142110-00 |
The intake camshaft components |
IN. CAMSHAFT COMP |
73A-03140-00-00 |
|
|
|
|
|
| 2 |
M40-142120-00 |
Exhaust camshaft
components |
EX. CAMSHAFT COMP |
73A-03141-00-00 |
|
|
|
|
|
| 3 |
G10-141300-00 |
Gear oil cover
components |
OIL-SEAL |
73A-03411-00-00 |
|
|
|
|
|
| 4 |
M40-141001-00 |
The intake valve |
INLET VALVE |
73A-02301-00-00 |
|
|
|
|
|
| 5 |
M40-141002-00 |
Exhaust valve |
OUTLET VALVE |
73A-03301-00-00 |
|
|
|
|
|
| 6 |
M40-141005-00 |
Gas outside the
spring |
OUTER SPRING,VALVE |
73A-03413-00-00 |
|
|
|
|
|
| 7 |
M40-141004-00 |
Valve spring in the |
INNER SPRING,VALVE |
73A-03414-00-00 |
|
|
|
|
|
| 8 |
M40-141008-00 |
Valve on the spring
seat |
UPPER SPRING
SUPPORT,VALVE |
73A-03421-00-00 |
|
|
|
|
|
| 9 |
M40-141011-00 |
Valve under the
outer washer spring seat |
OUTER SRPING
SUPPORT,VALVE |
73A-03423-00-00 |
|
|
|
|
|
| 10 |
M40-141012-00 |
Valve under the
spring seat washer |
INNER SPRING
SUPPORT,VALVE |
73A-03424-00-00 |
|
|
|
|
|
| 11 |
M40-141007-00 |
Air lock folder |
LOCK CLIP,VALVE |
73A-03427-00-00 |
|
|
|
|
|
| 12 |
M40-143003-00 |
Valve top tube |
DRUM,VALVE |
73A-03631-00-00 |
|
|
|
|
|
| 13 |
M40-143008-00 |
Valve adjustment pad |
BUSH,VALVE |
73A-03632-00-00 |
|
|
|
|
|
| 14 |
M40-142002-00 |
Timing driven
sprocket |
ADJUST DRIVEN CHAIN
WHEEL |
|
|
|
|
|
|

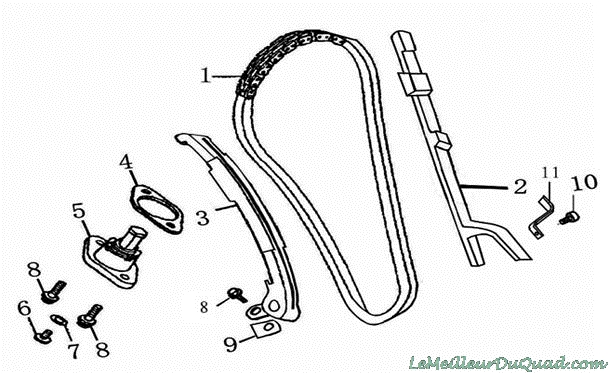

| A-05
正时链、张紧轮 CHAIN, TENSION
PULLEY |
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
|
(TW)Part No. |
|
|
|
|
|
| 1 |
M40-142200-00 |
Timing chain |
CHAIN 7×126 |
73A-03121-00-00 |
|
|
|
|
|
| 2 |
M40-144002-00 |
The chain guide
plate |
GUIDE PLATE,CHAIN |
73A-03814-00-00 |
|
|
|
|
|
| 3 |
M40-144400-00 |
Chain adjustment
plate |
REGULATING
PLATE,CHAIN |
73A-03811-00-00 |
|
|
|
|
|
| 4 |
M10-144001-00 |
Tensioner gasket |
SEAL BUSH,TENSIONER |
73A-03824-00-00 |
|
|
|
|
|
| 5 |
M10-144100-00 |
Tensioner |
TENSIONER |
73A-03830-00-00 |
|
|
|
|
|
| 6 |
M10-144101-00 |
Tensioner cover
screws M6 × 8 |
SCREW 6×6 张紧器自带 |
S-3530-06060-03 |
|
|
|
|
|
| 7 |
GB/T3452.1 |
O-ring φ10 ×
1.8 |
O-STYLE SEAL RING张紧器自带 |
S-1305-15095-00 |
|
|
|
|
|
| 8 |
GB/T16674 |
Hexagon bolts with
flange M6 × 16 |
BOLT M6×16 |
S-6000-16016-07 |
|
|
|
|
|
| 9 |
M10-112003-00 |
Bearing plate |
BEARING PLATE |
73A-03879-00-00 |
|
|
|
|
|
| 10 |
GB/T16674 |
Hexagon bolts with
flange M6 x 12 |
FLANGE BOLT 6×12(TW)压板处无 |
S-6000-16012-07 |
|
|
|
|
|
| 11 |
M40-144002-00 |
Deflector plate |
Guide,protector |
73AA03836-00-00 |
|
|
|
|
|

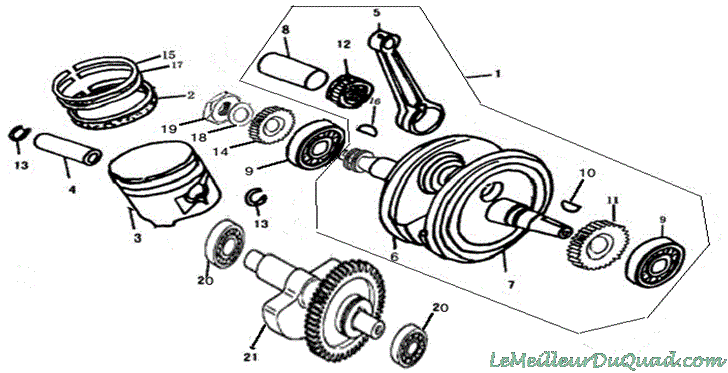

| A-06
曲柄连杆、活塞 CRANK CONNECTING ROD 、PISTON |
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
|
(TW)Part No. |
|
|
|
|
|
| 1 |
M40-131000-00 |
Crank and
connecting rod Package |
CRANK SHAPT ASSY |
73A-04100-00-00 |
|
|
|
|
|
| 2 |
M40-132110-00 |
Oil
ring combination |
OIL RING COMP |
73A-02623-00-00 |
|
|
|
|
|
| 3 |
M40-132001-00 |
Piston |
PISTON |
73A-02611-00-00 |
|
|
|
|
|
| 4 |
M40-132002-00 |
Piston
pin |
PISTON PIN |
73A-02631-00-00 |
|
|
|
|
|
| 5 |
M40-132006-00 |
Link |
CONNECTION ROD |
73A-04114-00-00 |
|
|
|
|
|
| 6 |
M40-131001-00 |
Right
crank |
RIGHT CRANKSHAFT |
73A-04111-00-00 |
|
|
|
|
|
| 7 |
M40-131002-00 |
Left
crank |
LEFT CRANKSHAFT |
73A-04112-00-00 |
|
|
|
|
| 8 |
M40-131008-00 |
Crankshaft
pin |
CRANK PIN COMP |
73A-04131-00-00 |
|
|
|
|
|
| 9 |
GB/T276 |
Deep
groove ball bearings (63/28) |
GEAR |
S-6120-06328-00 |
|
|
|
|
|
| 10 |
M10-131005-00 |
Left
semi-circular key |
SEMI CIRCLE KEY |
73A-04151-00-00 |
|
|
|
|
|
| A-06
曲柄连杆、活塞 CRANK CONNECTING ROD 、PISTON |
|
| 序号 |
零部件代号 |
Parts name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 11 |
M10-172303-00 |
Balance
shafts initiative gears |
BALANCE AXIS MAIN
GEAR |
73A-17312-00-00 |
|
|
|
|
|
| 12 |
GB/T290 |
Needle
Roller Bearings |
ROLLING BEARING |
73A-04115-00-00 |
|
|
|
|
|
| 13 |
M10-132003-00 |
Piston
pin circlip |
CIRCLIP,PISTON PIN |
S-4601-10170-00 |
|
|
|
|
|
| 14 |
M10-172303-00 |
Driving
gear |
MAIN GEAR |
73A-17313-00-00 |
|
|
|
|
|
| 15 |
M40-132101-00 |
Piston
ring (one ring) |
PISTON RING 1 |
73A-02621-00-00 |
|
|
|
|
|
| 16 |
M40-131004-00 |
Driving
gear flat key |
MAIN GEAR KEY |
73A-04161-00-00 |
|
|
|
|
|
| 17 |
M40-132102-00 |
Piston
ring (second ring) |
PISTON RING 2 |
73A-02622-00-00 |
|
|
|
|
|
| 18 |
M10-172008-00 |
Washer
φ18 × φ28 × 2.3 |
SEAL
COVER 18×28×2.3 |
S-4101-18235-20 |
|
|
|
|
|
| 19 |
M10-172011-00 |
Hexagon
nut The M18 × 1 |
U NUT M18×1 |
73A-11177-00-00 |
|
|
|
|
|
| 20 |
GB/T276 |
Bearing 6301 |
BEARING
6301 |
S-6120-06301-00 |
|
|
|
|
|
| 21 |
M10-133100-00 |
Balance shaft
components |
BALANCE
SHAFT ASSY |
73A-17320-00-00 |
|
|
|
|
|
| A-07 离合器 CLUTCH |
|
| 序号 |
零部件代号 |
Parts name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 1 |
M10-172303-00 |
Driving gear |
Driving gear |
|
|
|
|
|
|
| 2 |
M10-172008-00 |
Washer
18x28x2.3 |
Washer
18x28x2.3 |
|
|
|
|
|
|
| 3 |
M10-172009-00 |
Washer
16x26x3 |
Washer
16x26x3 |
S-4101-16267-20 |
|
|
|
|
|
| 4 |
M10-172300-00 |
Housing
combination |
Clutch
housing cover |
73AA11140-00-00 |
|
|
|
|
|
| 5 |
M10-172002-00 |
Clutch
sleeve |
Guide,
clutch center |
73A-11147-00-00 |
|
|
|
|
|
| 6 |
M10-172510-00 |
Clutch center sets |
Clutch
center piece comp |
73A-11121-00-00 |
|
|
|
|
|
| 7 |
M10-172520-00 |
Clutch |
Friction
plate assy |
73AA11127-00-00 |
|
|
|
|
|
| 8 |
M10-172504-00 |
Clutch iron tablets |
Friction
iron plate |
73AA11128-00-00 |
|
|
|
|
|
| 9 |
M10-172503-00 |
Clutch pressure
plate |
Pressing
disk,clutch |
73A-11124-00-00 |
|
|
|
|
|
| 10 |
M10-172501-00 |
L board |
Clutch
separating plate |
73A-11126-00-00 |
|
|
|
|
|

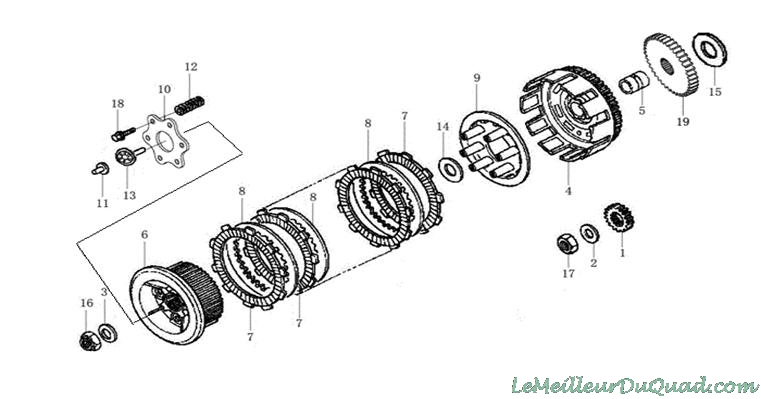

| A-07 离合器 CLUTCH |
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 11 |
M10-172013-00 |
Clutch push
rod |
Separating
rod,clutch |
|
|
|
|
|
|
| 12 |
M10-172502-00 |
Clutch
spring |
Spring,
clutch |
73AA11129-00-00 |
|
|
|
|
|
| 13 |
M10-172600-00 |
Clutch bearing
assembly |
Bearing
comp |
73A-11190-00-00 |
|
|
|
|
|
| 14 |
M10-172007-00 |
Washer
20x37x3.5 |
Washer
20x37x3.5 |
73A-11135-00-00 |
|
|
|
|
|
| 15 |
M50-166002-00 |
Washer
20x36x4 |
Washer
20x36x4 |
|
|
|
|
|
|
| 16 |
M10-172012-00 |
Flange
round nut |
Round
nut |
|
|
|
|
|
|
| 17 |
M10-172011-00 |
Hexagon
nuts |
Locknut |
|
|
|
|
|
|
| 18 |
GB/T
5789-1986 |
Hexagon
flange bolts M6x22 |
Bolt
M6x22 |
|
|
|
|
|
|
| 19 |
M50-166001-00 |
Reverse
initiative gears |
Reverse
driving gear |
|
|
|
|
|
|
| A-08 变档机构 I GEAR-CHANGE SYSTEM I (
倒档) |
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 1 |
M50-161101-00 |
Spindle |
Main shaft |
|
|
|
|
|
|
| 2 |
M10-162207-00 |
Vice-axis
short axis short |
Drive
shaft |
|
|
|
|
|
|
| 2 |
M10-162207-01 |
Vice-axis
long axis long shaft |
Drive
shaft |
|
|
|
|
|
|
| 3 |
M10-162201-00 |
Reverse
the driven gear |
Driven
gear, reverse |
|
|
|
|
|
|
| 4 |
M10-162208-00 |
Vice
shaft sleeve A |
Bush,A |
|
|
|
|
|
|
| 5 |
M50-161117-00 |
A
file of the driving gear |
Driving
gear,1st |
|
|
|
|
|
|
| 6 |
M50-162201-00 |
Speed
driven gear |
Driven
gear, 1st |
|
|
|
|
|
|
| 7 |
M10-162209-00 |
Vice
shaft sleeve B |
Bush,B |
|
|
|
|
|
|
| 8 |
M50-161118-00 |
Two
third gear driving gear |
Driving
gear,2nd、3rd |
|
|
|
|
|
|
| 9 |
M50-162202-00 |
Two-speed
driven gear |
Driven
gear, 2nd |
|
|
|
|
|
|
| 10 |
M50-162203-00 |
Third
gear the driven gear |
Driven
gear, 3rd |
|
|
|
|
|
|
| 11 |
M10-161105-00 |
Fourth
gear initiative gears |
Driving
gear,4th |
|
|
|
|
|
|
| 12 |
M10-162205-00 |
Fourth
gear the driven gear |
Driven
gear, 4th |
|
|
|
|
|
|
| 13 |
M10-161106-00 |
Five-speed
driving gear |
Driving
gear,5th |
|
|
|
|
|
|

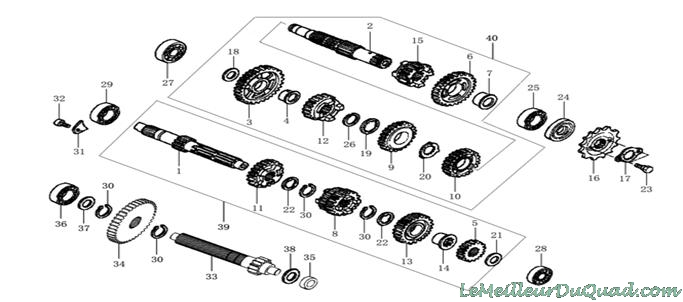

| A-08 变档机构 I GEAR-CHANGE SYSTEM I |
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 14 |
M10-161115-00 |
Spline bushing |
Spline bush |
|
|
|
|
|
|
| 15 |
M10-162206-00 |
Five-speed
driven gear |
Driven
gear,5th |
|
|
|
|
|
|
| 16 |
M10-162216-00 |
Output
shaft sprocket |
Driving
sprocket |
|
|
|
|
|
|
| 17 |
M10-162217-00 |
Output
shaft sprocket plate |
Driving
sprocket fixture plate |
|
|
|
|
|
|
| 18 |
M10-162212-00 |
Thrust
washer 17x26x1 |
Thrust
washer 17x26x1 |
|
|
|
|
|
|
| 19 |
M10-162213-00 |
Thrust
washers 22x28x1.6 |
Thrust
washer 22x28x1.6 |
|
|
|
|
|
|
| 20 |
M10-162214-00 |
Thrust
washers 22x30x2.3 |
Thrust
washer 22x30x2.3 |
|
|
|
|
|
|
| 21 |
M10-161109-00 |
Thrust
washer 15x25x1 |
Thrust
washer 15x25x1 |
|
|
|
|
|
|
| 22 |
M10-161108-00 |
Splined
washer 20x26x1.6 |
Spline
washer 20x26x1.6 |
|
|
|
|
|
|
| 23 |
GB/T
5783-2000 |
Hex
head bolt M6 × 10 |
Bolt
M6x10 |
|
|
|
|
|
|
| 24 |
GB/T
9877.1-1988 |
Oil
seal 20 × 34 × 7 |
Oil-seal
20x34x7 |
|
|
|
|
|
|
| 25 |
GB/T
276-1994 |
Bearing
62/22x1-RS |
Rolling
bearing 62/22x1-RS |
|
|
|
|
|
|
| 26 |
GB/T894.1-1986 |
Shaft
Circlips 22 |
Circlip
22 |
|
|
|
|
|
|
| 27 |
GB/T
276-1994 |
Bearing
6203 |
Rolling
bearing 6203 |
|
|
|
|
|
|
| A-08 变档机构 I GEAR-CHANGE SYSTEM I |
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 28 |
GB/T 276-1994 |
Bearing 6202RS |
Rolling
bearing 6202RS |
|
|
|
|
|
|
| 29 |
GB/T
276-1994 |
Bearing
6204N |
Rolling
bearing 6204N |
|
|
|
|
|
|
| 30 |
GB/T894.1-1986 |
Shaft
Circlips |
Circlip
20 |
|
|
|
|
|
|
| 31 |
M10-112003-00 |
Bearing
card board |
Bearing
stand |
|
|
|
|
|
|
| 32 |
GB/T
16674.1-2004 |
Hexagon
bolts with flange M6 x 12 |
Bolt
M6x12 |
|
|
|
|
|
|
| 33 |
M50-166100-00 |
Reverse
axis Receiver |
Reverse
shaft |
|
|
|
|
|
|
| 34 |
M50-166102-00 |
Reverse
bridge gear |
Reverse
gear |
|
|
|
|
|
|
| 35 |
M50-112006-00 |
Sleeve
12x16x10 |
Bush
12x16x10 |
|
|
|
|
|
|
| 36 |
GB/T276-1994 |
Bearing
6001 |
Rolling
bearing 6001 |
|
|
|
|
|
|
| 37 |
M50-166104-00 |
Thrust
washer 13x18x1 |
Thrust
washer 13x18x1 |
|
|
|
|
|
|
| 38 |
M50-166103-00 |
Thrust
washer 13x24x1 |
Thrust
washer 13x24x1 |
|
|
|
|
|
|
| 39 |
M50-161101-00 |
Spindle
combination |
Main
shaft assy |
|
|
|
|
|
|
| 40 |
M50-162207-00 |
The
layshaft combination of short-axis short |
Drive
shaft assy |
|
|
|
|
|
|
| 41 |
M50-162207-01 |
The
layshaft combination long axis of the long shaft |
Drive
shaft assy |
|
|
|
|
|
|

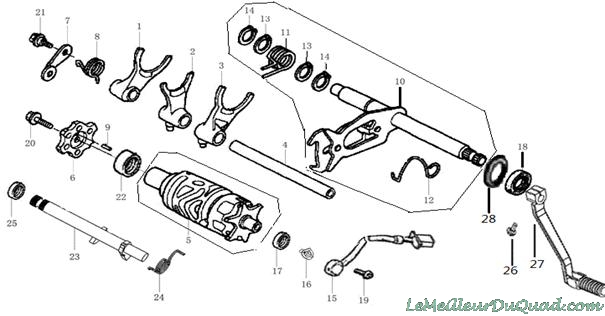

| A-09 变档机构 II GEAR-CHANGE SYSTEM II |
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 1 |
M10-163004-00 |
Plectrum R |
Fork,right |
73A-13222-00-00 |
|
|
|
|
|
| 2 |
M10-163006-00 |
Plectrum
C |
Fork,center |
73A-13223-00-00 |
|
|
|
|
|
| 3 |
M10-1663005-00 |
Plectrum
L |
Fork,left |
73A-13221-00-00 |
|
|
|
|
|
| 4 |
M10-163007-00 |
Fork
shaft speed fork guide |
Fork,shaft |
73A-13224-00-00 |
|
|
|
|
|
| 5 |
M50-163100-00 |
Variable
speed drum assembly |
Shift
drum |
73A-13360-00-00 |
|
|
|
|
|
| 6 |
M10-163001-00 |
Gearshift
dial plate variable speed cam |
Shift
cam |
73AA13113-00-00 |
|
|
|
|
|
| 7 |
M10-163300-00 |
Positioning
plate variable speed tube to stop the assembly |
Stopper
lever assy |
73A-13120-00-00 |
|
|
|
|
|
| 8 |
M50-16302-00 |
Positioning
plate spring variable speed tube to stop the spring |
Spring |
73A-13123-00-00 |
|
|
|
|
|
| 9 |
GB/T
119-1986 |
Cylindrical
pin 3x12 |
Pin
3×12 |
S-4302-03120-00 |
|
|
|
|
|
| 10 |
M10-164120-00 |
Gearshift
welding components |
Gear
shift assy |
73A-13311-00-00 |
|
|
|
|
|
| 11 |
M10-164104-00 |
Gearshift
shaft return spring |
Return
spring,gear shift |
73A-13324-00-00 |
|
|
|
|
|
| 12 |
M10-164106-00 |
Telescopic
spring |
Spring,flex |
S-4101-14201-60 |
|
|
|
|
|
| 13 |
M10-164105-00 |
Thrust
washers 14x20x0.5 |
Thrust
washer 14x20x0.5 |
|
|
|
|
|
|
| 14 |
GB/T
894.1-1986 |
Shaft
Circlips 14 |
Circlip
14 |
S-4511-10120-00 |
|
|
|
|
|
| A-09 变档机构 II GEAR-CHANGE SYSTEM II |
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 15 |
M10-163220-00 |
File
significant contact with the head of the contact gap light switch |
Gea rindicator
connecting,steady |
73A-21192-00-00 |
|
|
|
|
|
| 16 |
M10-163210-00 |
File
significantly moving contact |
Gear
indicator connecting,moving |
S-1305-20180-00 |
|
|
|
|
|
| 17 |
GB/T
9877.1-1988 |
Oil
seal 14 × 22 × 5 |
Oil-seal
14x22x5 |
S-1201-14022-50 |
|
|
|
|
|
| 18 |
GB/T
9877.1-1988 |
Oil
seal 14 × 28 × 7 |
Oil-seal
14x28x7 |
S-1201-14028-70 |
|
|
|
|
|
| 19 |
GB/T
16674.1-2004 |
Hexagon
bolts with flange M6 x 12 |
Bolt
M6x12 |
S-6000-06012-07 |
|
|
|
|
|
| 20 |
GB/T
16674.1 |
Hexagon
bolts with flange M6 × 20 |
Bolt
M6x20 |
S-2000-06025-01 |
|
|
|
|
|
| 21 |
M10-163003-00 |
Positioning
plate bolts variable speed tube to stop |
Bolt,stopper
lever |
S-20000-06025-01 |
|
|
|
|
|
| 22 |
GB/T
290-1998 |
Needle
Roller Bearings HK202610 |
Needle
bearing HK202610 |
|
|
|
|
|
|
| 23 |
M50-166200-00 |
Reverse
protection-axis components |
Protector
shaft assy |
|
|
|
|
|
|
| 24 |
M50-166201-00 |
Reverse
protection spring |
Spring |
|
|
|
|
|
|
| 25 |
GB/T
9877.1-1988 |
Oil
seal 12x18x5 |
Oil-seal
12x18x5 |
|
|
|
|
|
|
| 26 |
|
Hexagonal edge
surface bolt 6x18 |
FLANGE BOLT 6X18 |
S-6001-06018-03 |
|
|
|
|
|
| 27 |
|
Variable-speed
riding rod |
CHANGE PEDAL PAD |
73A-13364-10-00 |
|
|
|
|
|
| 28 |
M10-164108-00 |
Thrust
pads 14 × 20 × 1 |
Thrust washer 20x30x1 |
A-4101-14203-23 |
|
|
|
|
|
| A-10

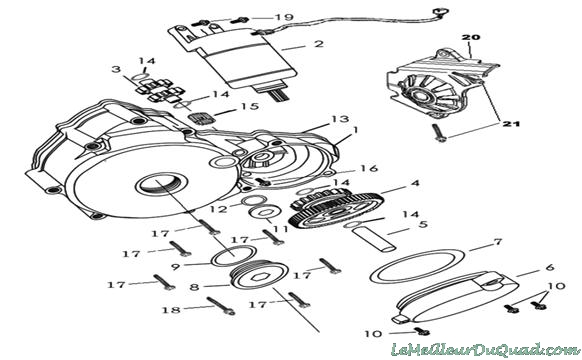

磁电机盖、起动电机 MAGNETO,CRANKING MOTOR |
|
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 1 |
M10-114001-00 |
Left front
cover |
LEFT FR.COVER |
73AA01310-00-00 |
|
|
|
|
|
| 2 |
M10-182200-00 |
Starter
motor |
CRANKING MOTOR |
73AA22200-00-00 |
|
|
|
|
|
| 3 |
M10-182001-00 |
Shaft
gear |
AXIS,GEAR |
73AA22311-00-00 |
|
|
|
|
|
| 4 |
M10-182002-00 |
Double
gear |
DOUBLE-GEAR |
73AA22331-00-00 |
|
|
|
|
|
| 5 |
M10-182003-00 |
Double
gear shaft |
AXIS,DOUBLE-GEAR |
73A-22321-00-00 |
|
|
|
|
|
| 6 |
M10-114007-00 |
Starter
motor cover |
CRANKING MOTOR COVER |
73A-01330-00-00 |
|
|
|
|
|
| 7 |
GB/T3452.1 |
O-ring
70 × 3 |
O-STYLE RING 70×3 |
S-1305-30700-00 |
|
|
|
|
|
| 8 |
M10-114005-00 |
Large
manhole covers |
COVER |
73A-21160-00-00 |
|
|
|
|
|
| 9 |
GB/T3452.1 |
O-ring
27 × 2.5 |
O-STYLE RING 27×2.5 |
S-1305-24274-00 |
|
|
|
|
|
| 10 |
GB/T16674 |
Hexagon
bolts with flange M6 × 20 |
HEXAGON FLANGE BOLT |
S-6001-06020-07 |
|
|
|
|
|
| A-10
磁电机盖、起动电机 MAGNETO,CRANKING MOTOR |
|
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 11 |
M10-114006-00 |
Overlooked
hole cover |
UPPER OPERCULUM |
73A-21180-00-00 |
|
|
|
|
|
| 12 |
GB/T3452.1 |
O-ring
13.8 × 2.5 |
O-STYLE RING
13.8×2.5 |
S-1305-25138-00 |
|
|
|
|
|
| 13 |
M10-114004-00 |
Left
front cover gasket |
SEAL BUSH,LEFT
FR.COVER |
73A-08241-00-00 |
|
|
|
|
|
| 14 |
M10-182004-00 |
Washer
10 × 21 × 1 |
BUSH 10×21×1 |
S-4101-10203-60 |
|
|
|
|
|
| 15 |
GB/T290 |
Needle
Roller Bearings HK101410 |
CON-ROD NEEDLE BRG.
HK101410 |
S-6130-01010-70 |
|
|
|
|
|
| 16 |
GB/T16674 |
Hexagon
bolts with flange M6 × 30 |
HEXAGON FLANGE BOLT |
S-6000-06032-07 |
|
|
|
|
|
| 17 |
GB/T16674 |
Hexagon
bolts with flange M6 × 65 |
HEXAGON FLANGE BOLT |
S-6000-06065-07 |
|
|
|
|
|
| 18 |
GB/T16674 |
Hexagon
bolts with flange M6 × 70 |
HEXAGON FLANGE BOLT |
S-6000-06070-07 |
|
|
|
|
|
| 19 |
GB/T16674 |
Hexagon
bolts with flange M6 × 30 |
HEXAGON FLANGE BOLT |
S-6000-06025-07 |
|
|
|
|
|
| 20 |
M10-114001-00 |
Left
crank box back cover |
L.
CRANK CASE REAR COVER |
73A-01321-00-00 |
|
|
|
|
|
| 21 |
GB/T16674 |
Hexagonal
edge surface bolt 6x18 |
FLANGE BOLT 6X18 |
S-6001-06018-03 |
|
|
|
|
|
| A-11

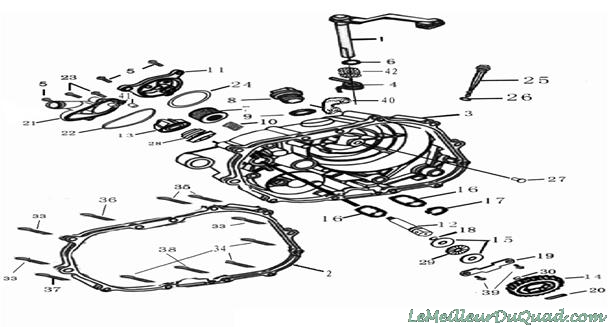

右曲轴箱盖 CLUTCH COVER |
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 1 |
M10-170010-00 |
The clutch
lever combination requires 45 ° |
CLUTCH JOY STICK |
73A-11170-00-00 |
|
|
|
|
|
| 2 |
M10-113001-00 |
Right
Crankcase Cover Gasket |
SEAL
BUSH,RIGHT CRANKCASE COVER |
73A-08231-00-00 |
|
|
|
|
|
| 3 |
M10-113100-00 |
Right
Crankcase Cover |
RIGHT CRANKCASE
COVER |
73AA01401-00-00 |
|
|
|
|
|
| 4 |
M10-170001-00 |
The
clutch lever return spring |
RETURNING
SPRING,CLUTCH HANDLE |
73A-11162-00-00 |
|
|
|
|
|
| 5 |
GB/T16674 |
Hexagon
bolts with flange M6 × 20 |
HEXAGON FLANGE BOLT滤芯盖2 |
S-6000-06020-07 |
|
|
|
|
|
| 6 |
GB/T9877.1 |
Oil
seal 12 × 18 × 5 |
OIL SEAL 12×18×5 |
S-1201-12018-50 |
|
|
|
|
|
| 7 |
M10-152100-00 |
Oil
filter oil filter |
OIL FILTER |
73A-05232-00-00 |
|
|
|
|
|
| 8 |
M10-113002-00 |
Refueling
plug clutch manhole |
OIL SEAL |
73A-11181-00-00 |
|
|
|
|
|
| 9 |
GB/T3452.1 |
O-ring
18 × 3.5 |
O-STYLE RING 18×3.5 |
S-1305-35180-00 |
|
|
|
|
|
| 10 |
M10-152001-00 |
Oil
filter spring oil filter spring |
OIL FILTER SPRING |
73A-05232-00-00 |
|
|
|
|
|
| 11 |
M10-152002-00 |
Oil
filter cover Oil filter cover |
COVER,OIL FILTER |
73AA05231-00-00 |
|
|
|
|
|
| 12 |
M10-190004-00 |
Pump
shaft |
WATER PUMP AXIS |
73A-06112-00-00 |
|
|
|
|
|
| 13 |
M10-190006-00 |
Pump
impeller |
WATER PUMP AXIS GEAR |
73A-06111-00-00 |
|
|
|
|
|
| 14 |
M40-190005-00 |
Pump
shaft driven gear |
WATER PUMP AXIS GEAR |
73A-06132-00-00 |
|
|
|
|
|
| A-11
右曲轴箱盖 CLUTCH COVER |
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 15 |
AS1226 |
Flat washers |
BUSH |
S-4101-12203-60 |
|
|
|
|
|
| 16 |
GB/T9877.1 |
Oil
seal 12 × 20 × 5 |
OIL SEAL 12×20×5 |
S-1201-12020-50 |
|
|
|
|
|
| 17 |
GB/T893.2-20 |
Hole
Circlips |
BORE ROUNDWIRE SNAP
RING |
S-4521-10200-00 |
|
|
|
|
|
| 18 |
GB/T895.2-12 |
Round
wire snap rings |
AXIS ROUNDWIRE SNAP
RING |
73A-06129-00-00 |
|
|
|
|
|
| 19 |
M10-190009-00 |
Pump
shaft plate |
AXIS PLATE,WATER
PUMP |
73A-06135-00-00 |
|
|
|
|
|
| 20 |
GB/T
119-1986 |
Cylindrical
pin 4x22.8 |
WATER PUMP PIN |
73A-17343-00-00 |
|
|
|
|
|
| 21 |
M10-190007-00 |
Water
pump cover |
WATER PUMP |
73AA01461-00-79 |
|
|
|
|
|
| 22 |
M10-190008-00 |
Water
pump cover ring |
SEAL,WATER PUMP
COVER |
73A-06127-00-00 |
|
|
|
|
|
| 23 |
GB/T16674 |
Hexagon
bolts with flange M6 × 25 |
HEXAGON FLANGE BOLT |
S-6000-06025-07 |
|
|
|
|
|
| 24 |
GB/T3452.1-56×2.5 |
O-ring
56 × 2.5 |
O-STYLE RING 56×2.5 |
S-1305-26552-00 |
|
|
|
|
|
| 25 |
M10-113200-00 |
Dipstick |
OIL RULER |
73A-05280-00-00 |
|
|
|
|
|
| 26 |
GB/T3452.1 |
O-ring
9.8 × 2.4 |
O-STYLE RING 9.8×2.4 |
S-1305-24098-00 |
|
|
|
|
|
| 27 |
M10-172013-00 |
Clutch
push rod |
CLUTCH MANDRIL |
73A-11167-00-00 |
|
|
|
|
|
| 28 |
RY125S-196201 |
Water
seal |
WATER SEAL |
82A-06133-00-00 |
|
|
|
|
|
| A-11
右曲轴箱盖 CLUTCH COVER |
|
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 29 |
GB/T301 |
Plane bearing
12 |
PLANE BEARING 12 |
73A-06136-00-00 |
|
|
|
|
|
| 30 |
GB/T894.1-16 |
Shaft
Collar |
AXIS ROUNDWIRE SNAP
RING |
73A-06129-00-00 |
|
|
|
|
|
| 33 |
GB/T16674 |
Hexagon
bolts with flange M6 × 40 |
HEXAGON FLANGE BOLT |
S-6001-06040-07 |
|
|
|
|
|
| 34 |
GB/T16674 |
Hexagon
bolts with flange M6 × 30 |
HEXAGON FLANGE BOLT |
S-6001-06030-07 |
|
|
|
|
|
| 35 |
GB/T16674 |
Hexagon
bolts with flange M6 × 65 |
HEXAGON FLANGE BOLT |
S-6001-06065-07 |
|
|
|
|
|
| 36 |
GB/T16674 |
Hexagon
bolts with flange M6 × 75 |
HEXAGON FLANGE BOLT |
S-6001-06070-07 |
|
|
|
|
|
| 37 |
GB/T16674 |
Hexagon
bolts with flange M6 × 80 |
HEXAGON FLANGE BOLT |
S-6001-06080-07 |
|
|
|
|
|
| 38 |
GB/T16674 |
Hexagon
bolts with flange M6 × 55 |
HEXAGON FLANGE BOLT |
S-6001-06055-07 |
|
|
|
|
|
| 39 |
GB/T16674 |
Hexagon
bolts with flange M6 x 12 |
HEXAGON FLANGE BOLT |
S-6001-06012-07 |
|
|
|
|
|
| 40 |
M10-170002-00 |
Clutch
stretch positioning plate |
CLUTCH WIRE HOLDER |
73A-11158-00-00 |
|
|
|
|
|
| 41 |
M10-110002-00 |
Locating
pin 8X8 |
DOWEL PIN 8x8 |
S-4301-08080-00 |
|
|
|
|
|
| 42 |
GB/T290 |
Needle
Roller Bearings HK121610 |
CON-ROD
NEEDLE BRG |
S-6130-01210-70 |
|
|
|
|
|

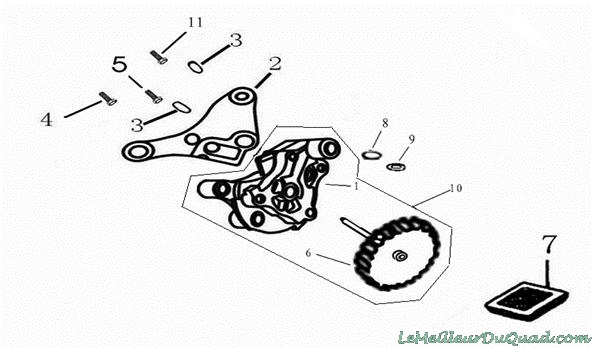

| A-12 机油泵 LUBRICATING PUMP |
|
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 1 |
M10-151103-00 |
Oil pump
components |
LUBRICATING OIL PUMP |
73A-05100-00-00 |
|
|
|
|
|
| 2 |
M10-151006-00 |
The
oil pump gasket |
LUBRICATION OIL PUMP
SEAL |
73A-08235-00-00 |
|
|
|
|
|
| 3 |
M10-110004-00 |
Locating
pin 8 × 14 |
FIXED PIN 8×14 |
S-4301-08140-00 |
|
|
|
|
|
| 4 |
GB/T16674 |
Hexagon
bolts with flange M6 × 25 |
HEXAGON FLANGE BOLT |
S-6001-06025-07 |
|
|
|
|
|
| 5 |
GB/T16674 |
Hexagon
bolts with flange M6 x 35 |
HEXAGON FLANGE BOLT |
S-6001-06035-07 |
|
|
|
|
|
| 6 |
M40-151112-00 |
Oil
pump gear components |
OIL PUMP GEAR |
73A-17351-00-00 |
|
|
|
|
|
| 7 |
M10-150010-01 |
Oil
filters |
OIL FILTERING NET |
73A-05235-00-00 |
|
|
|
|
|
| 8 |
M10-110005-00 |
Locating
pin φ10 × 10 |
FIXED PIN 10×10 |
S-4301-10100-00 |
|
|
|
|
|
| 9 |
GB/T3452.1 |
O-ring
φ9.8 × φ2.4 |
O-STYLE
RING 9.8×2.4 |
S-1305-16100-00 |
|
|
|
|
|
| 10 |
M10-151100-00 |
Oil
pump components |
Oil
pump comp |
|
|
|
|
|
|
| 11 |
GB/T16674 |
Hexagon
bolts with flange M6 × 40 |
HEXAGON FLANGE BOLT |
S-6001-06040-07 |
|
|
|
|
|
| A-13

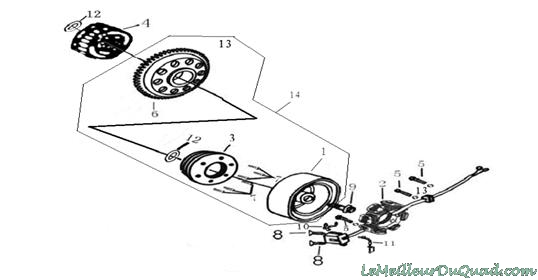

磁电机、起动离合器 MAGNETO ,STARTING CLUTCH |
|
|
| 序号 |
零部件代号 |
Parts
name |
Description |
(TW)零部件代号 |
|
|
|
|
|
| S/N |
Part No. |
|
(TW)Part No. |
|
|
|
|
|
| 1 |
M10-1A1100-00 |
Magnetic rotor
component flywheel |
MAGNETO ROTOR |
73AA21111-00-00 |
|
|
|
|
|
| 2 |
M10-1A1200-00 |
Magnetic
stator assembly state |
MAGNETO STATOR |
73A-21130-00-00 |
|
|
|
|
|
| 3 |
M10-1823000-00 |
Overrunning
clutch to start the clutch coat |
OVERRINNING CLUTCH |
73A-22422-00-00 |
|
|
|
|
|
| 4 |
GB/T97.1 |
Needle
Roller Bearings KK263124 |
NEEDLE ROLLER
BEARING |
73A-22413-00-00 |
|
|
|
|
|
| 5 |
GB/T819 |
Phillips
head screw M5 x 30 |
CROSS CHEESE-HEAD
BOLT |
S-3500-05028-01 |
|
|
|
|
|
| 6 |
M10-182100-00 |
Disk
gear to start the transmission gear |
DISC-OILED BEARING |
73A-22350-00-00 |
|
|
|
|
|
| 7 |
GB/T70 |
Hexagon
socket head bolts |
INNER HEXAGON BOLT |
S-2000-05028-01 |
|
|
|
|
|
| 8 |
GB/T819 |
Bolt
the M5 x 12 |
BOLT M5×12 |
S-3500-05012-01 |
|
|
|
|
|
| 9 |
GB/T16674 |
Bolt
M12 × 1.25 × 45 |
BOLT M12×1.25×40 |
73AA21149-00-00 |
|
|
|
|
|
| 10 |
M10-1A0004-00 |
Trigger
clamp brackets B |
TRIGGER PLATE |
73A-21135-00-00 |
|
|
|
|
|
| 11 |
M10-1A0003-00 |
Fixed
piece B brackets B |
MAGNETO CLIP |
73A-21133-00-00 |
|
|
|
|
|
| 12 |
GB/T97.1 |
Thrust
washer 38 × 26 × 1 |
SPACER 38×26×1 |
S-4101-26383-60 |
|
|
|
|
|
| 13 |
GB/T93-5 |
Spring
washers φ5 |
SPRING SPACER |
S-4111-05103-60 |
|
|
|
|
|
| 14 |
|
Flywheel |
FLY
WHEEL COMP |
73A-21110-00-00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
