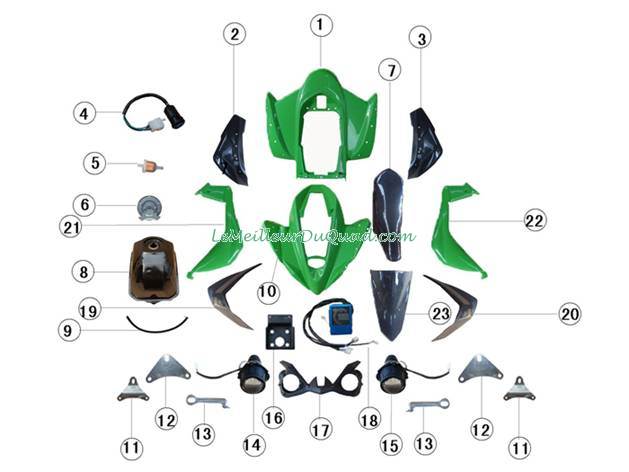

| JLA-21E-SERIES |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Cover |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| JLA-21B-250-A-01 |
后大板 |
REAR FENDER |
|
|
| JLA-21B-250-A-02 |
后左边条 |
REAR LEFT FENDER |
|
|
| JLA-21B-250-A-03 |
后右边条 |
REAR RIGHT FENDER |
|
|
| JLA-21B-250-A-04 |
电门锁 |
IGNITION SWITCH |
|
|
| JLA-21B-250-A-05 |
油滤器 |
OIL FILTER |
|
|
| JLA-21B-250-A-06 |
油箱（铁）二锁 |
GAS TANK CAP |
|
|
| JLA-21B-250-A-07 |
座垫 |
SEAT |
|
|
| JLA-21B-250-A-08 |
油箱 |
GAS TANK |
|
|
| JLA-21B-250-A-09 |
油管 |
GAS PIPE |
|
|
| JLA-21B-250-A-10 |
前大板 |
FRONT FENDER |
|
|
| JLA-21B-250-A-11 |
大灯连接片 |
HEADLIGHT HOLDER PART |
|
|
| JLA-21B-250-A-12 |
大灯连接片 |
HEADLIGHT HOLDER PART |
|
|
| JLA-21B-250-A-13 |
前大灯支架 |
HEADLIGHT HOLDER |
|
|
| JLA-21B-250-A-14 |
左前大灯 |
HEADLIGHT LEFT |
|
|
| JLA-21B-250-A-15 |
右前大灯 |
HEADLIGHT RIGHT |
|
|
| JLA-21B-250-A-16 |
仪表座 |
SPEEDMETER HOLDER |
|
|
| JLA-21B-250-A-17 |
大灯盖板 |
Headlight cover |
|
|
|
| JLA-21B-250-A-18 |
仪表 |
SPEEDMETER |
|
|
| JLA-21B-250-A-19 |
前左边条 |
LEFT LEFT FENDER |
|
|
| JLA-21B-250-A-20 |
前右边条 |
LEFT RIGHTFENDER |
|
|
| JLA-21B-250-A-21 |
左侧板 |
FRONT LEFT FENDER |
|
|
| JLA-21B-250-A-22 |
右侧板 |
FRONT RIGHT FENDER |
|
|
| JLA-21B-250-A-23 |
前盖 |
HEAD COVER |
|
|

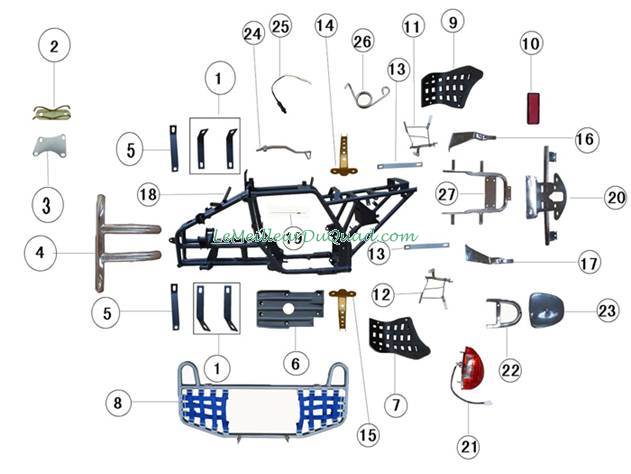

| Frame
and accessories |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| JLA-21B-250-B-01 |
塑料件支架 |
COVER
HOLDER |
|
|
|
| JLA-21B-250-B-02 |
线
卡 |
LINE HOLDER |
|
|
|
| JLA-21B-250-B-03 |
发动机固定板 |
ENGINE HOLDER |
|
|
|
| JLA-21B-250-B-04 |
前保护架 |
FRONT BUMP |
|
|
|
| JLA-21B-250-B-05 |
塑料件支架 |
COVER HOLDER |
|
|
|
| JLA-21B-250-B-06 |
发动机底板 |
ENGINE FENDER |
|
|
|
| JLA-21B-250-B-07 |
右脚踏装饰板 |
FOOT REST FENDER
RIGHT |
|
|
|
| JLA-21B-250-B-08 |
左右脚踏 |
FOOT REST FRAME |
|
|
|
| JLA-21B-250-B-09 |
左脚踏装饰板 |
FOOT REST FENDER
LIFT |
|
|
|
| JLA-21B-250-B-10 |
后反光片 |
REAR REFLECTOR |
|
|
|
| JLA-21B-250-B-11 |
左后泥板支架 |
REAR FENDER HOLDER |
|
|
|
| JLA-21B-250-B-12 |
右后泥板支架 |
REAR FENDER HOLDER |
|
|
|
| JLA-21B-250-B-13 |
塑料件支架 |
COVER HOLDER |
|
|
|
| JLA-21B-250-B-14 |
左脚蹬 |
FOOT REST LIFT |
|
|
|
| JLA-21B-250-B-15 |
右脚蹬 |
FOOT REST RIGHT |
|
|
|
| JLA-21B-250-B-16 |
靠背架 |
REAR SEAT FRAME CARRIER |
|
|
|
| JLA-21B-250-B-17 |
靠背架 |
REAR SEAT FRAME CARRIER |
|
|
|
| JLA-21B-250-B-18 |
主车架 |
FRAME |
|
|
|
| JLA-21B-250-B-19 |
脚刹弹簧 |
REAR BRAKE SWITCH SPRING |
|
|
|
| JLA-21B-250-B-20 |
后尾灯支架 |
REAR LIGHT HOLDER |
|
|
|
| JLA-21B-250-B-21 |
后明尾灯 |
REARLIGHT |
|
|
|
| JLA-21B-250-B-22 |
靠背架 |
REAR SEAT FRAME |
|
|
|
| JLA-21B-250-B-23 |
后靠背 |
REAR SEAT |
|
|
|
| JLA-21B-250-B-24 |
脚刹杆 |
REAR BARKE PEDAL |
|
|
|
| JLA-21B-250-B-25 |
后刹车开关 |
REAR BRAKE SWITCH |
|
|
|
| JLA-21B-250-B-26 |
脚刹回位弹簧 |
SPRING FOR REAR BARKE PEDAL |
|
|
|
| JLA-21B-250-B-27 |
后尾架 |
REAR RACK |
|
|

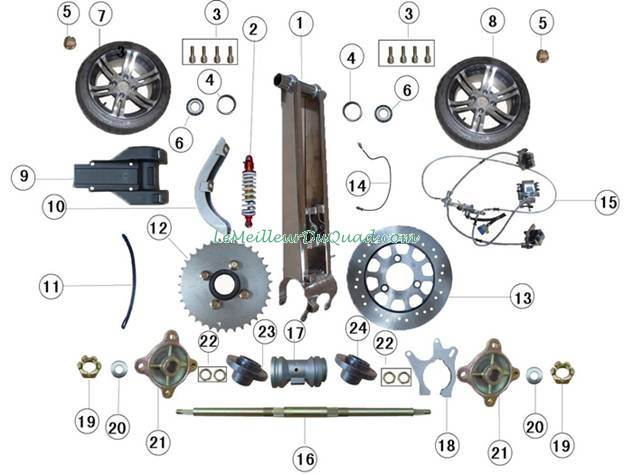

| Rear
wheel and suspension system |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| JLA-21B-250-C-01 |
后平叉 |
REAR FORK ASSY |
|
|
|
| JLA-21B-250-C-02 |
后减震 |
REAR SHOCK |
|
|
|
| JLA-21B-250-C-03 |
轮毂螺丝 |
WHEEL BOLT |
|
|
|
| JLA-21B-250-C-04 |
衬套 |
Bush |
|
|
|
| JLA-21B-250-C-05 |
轮毂盖 |
WHEEL COVER |
|
|
|
| JLA-21B-250-C-06 |
锥度轴承 |
TAPER BEARING |
|
|
|
| JLA-21B-250-C-07 |
后轮带铝轮毂 |
REAR WHEEL AND RIM |
|
|
|
| JLA-21B-250-C-08 |
后轮带铝轮毂 |
REAR WHEEL AND RIM |
|
|
|
| JLA-21B-250-C-09 |
后保护架 |
REAR FORK FENDER |
|
|
|
| JLA-21B-250-C-10 |
链罩 |
CHAIN COVER |
|
|
|
| JLA-21B-250-C-11 |
链条 |
CHAIN |
|
|
|
| JLA-21B-250-C-12 |
链轮 |
REAR SPROCKET |
|
|
|
| JLA-21B-250-C-13 |
后碟刹盘 |
REAR BRAKE DISC |
|
|
|
| JLA-21B-250-C-14 |
传感器 |
SPEED SENSOR |
|
|
|
| JLA-21B-250-C-15 |
一拖三碟刹器 |
DISC BRAKE(WITH 3 ) |
|
|
|
| JLA-21B-250-C-16 |
后轴 |
REAR AXLE ASSY |
|
|
|
| JLA-21B-250-C-17 |
后轮套筒 |
Rear Axle Sleeve |
|
|
|
| JLA-21B-250-C-18 |
碟刹支架 |
BRAKE HOLDER |
|
|
|
| JLA-21B-250-C-19 |
后轴螺丝 |
CROWN NUT |
|
|
|
| JLA-21B-250-C-20 |
颠片 |
WASHER |
|
|
|
| JLA-21B-250-C-21 |
后轮连接板 |
REAR WHEEL HUB |
|
|
|
| JLA-21B-250-C-22 |
|
NUT M22 |
|
|
|
| JLA-21B-250-C-23 |
链轮座 |
REAR SPROCKET |
|
|
|
| JLA-21B-250-C-24 |
碟刹座 |
REAR BRAKE DISC HOLDER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

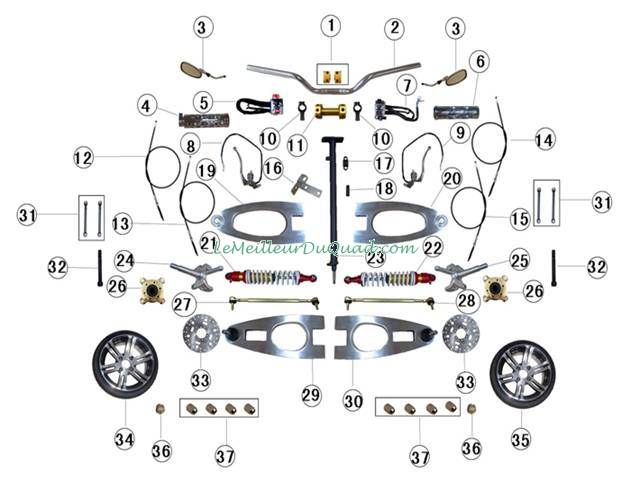

| JLA-21B-250-D-01 |
手把压块（上） |
HANDLE BAR HOLDER UP |
|
|
|
| JLA-21B-250-D-02 |
手把（200-6） |
HANDLE BAR |
|
|
|
| JLA-21B-250-D-03 |
后视镜 |
MIRROR |
|
|
|
| JLA-21B-250-D-04 |
加油座 |
ACC |
|
|
|
| JLA-21B-250-D-05 |
功能开关（欧标）右 |
HANDLE SWITCH
RIGHT |
|
|
|
| JLA-21B-250-D-06 |
手把套 |
HANDLE BAR GRIP |
|
|
|
| JLA-21B-250-D-07 |
功能开关（欧标）左 |
HANDLE SWITCH LEFT |
|
|
|
| JLA-21B-250-D-08 |
前助刹手柄 |
RIGHT HANDLE |
|
|
|
| JLA-21B-250-D-09 |
前离合手柄 |
LEFT HANDLE |
|
|
|
| JLA-21B-250-D-10 |
后视镜座 |
MIRROR HOLDER |
|
|
|
| JLA-21B-250-D-11 |
手把压块（下） |
HANDLE BAR HOLDER DOWN |
|
|
|
| JLA-21B-250-D-12 |
油门线 |
THROTTLE CABLE |
|
|
|
| JLA-21B-250-D-13 |
手
刹线 |
BRAKE CABLE |
|
|
|
| JLA-21B-250-D-14 |
离
合线 |
CLUTCH CABLE |
|
|
|
| JLA-21B-250-D-15 |
风
门线 |
CARBURETOR CABLE |
|
|
|
| JLA-21B-250-D-16 |
龙头锁支架 |
STEERING STEM LOCK HOLDER |
|
|
|
| JLA-21B-250-D-17 |
方向柱压块 |
STEERING STEM CLIP |
|
|
|
| JLA-21B-250-D-18 |
压紧块隔套 |
CLIP BUSH |
|
|
|
| JLA-21B-250-D-19 |
右上摇臂 |
Alloy UPPER FORNT A-ARM RIGHT |
|
|
|
| JLA-21B-250-D-20 |
左上摇臂 |
Alloy UPPER FORNT A-ARM LIFT |
|
|
|
| JLA-21B-250-D-21 |
前减震右 |
FRONT SHOCK RIGHT |
|
|
|
| JLA-21B-250-D-22 |
前减震左 |
FRONT SHOCK LIFT |
|
|
|
| JLA-21B-250-D-23 |
方向柱 |
STEERING STEM |
|
|
|
| JLA-21B-250-D-24 |
转向节右 |
KNUCKLE PIVOT SET RIGHT |
|
|
|
| JLA-21B-250-D-25 |
转向节左 |
KNUCKLE PIVOT SET LIFT |
|
|
|
| JLA-21B-250-D-26 |
旋转体 |
FRONT WHEEL HUB |
|
|
|
| JLA-21B-250-D-27 |
球头拉杆 |
STEERING ROD |
|
|
|
| JLA-21B-250-D-28 |
球头拉杆 |
STEERING ROD |
|
|
|
| JLA-21B-250-D-29 |
下摇臂 |
Alloy LOWER FRONT A-ARM RIGHT |
|
|
|
| JLA-21B-250-D-30 |
下摇臂 |
Alloy LOWER FRONT A-ARM LIFT |
|
|
|
| JLA-21B-250-D-31 |
摇臂螺丝 |
front A arm bolt |
|
|
|
| JLA-21B-250-D-32 |
减震螺丝 |
SHOCK BOLT |
|
|
|
| JLA-21B-250-D-33 |
前碟刹盘 |
FRONT BRAKE DISC |
|
|
|
| JLA-21B-250-D-34 |
前轮带铝轮毂 |
FRONT WHEEL AND RIM |
|
|
|
| JLA-21B-250-D-35 |
前轮带铝轮毂 |
FRONT WHEEL AND RIM |
|
|
|
| JLA-21B-250-D-36 |
轮毂盖 |
WHEEL COVER |
|
|
|
| JLA-21B-250-D-37 |
轮毂螺帽 |
WHEEL NUT |
|
|
|

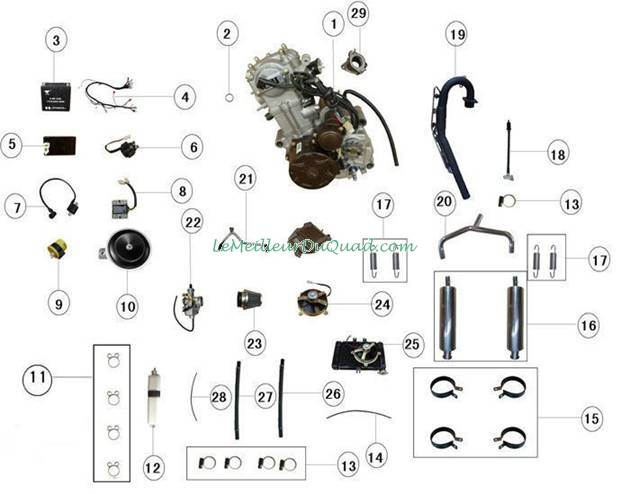

| Engine,
muffler, electrical parts |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| JLA-21B-250-E-01 |
发动机（隆鑫） |
ENGINE 250CC WATER COOLED
LONCIN ENGINE |
|
|
| JLA-21B-250-E-02 |
石棉垫 |
GASKET |
|
|
|
| JLA-21B-250-E-03 |
电池 |
BATTERY |
|
|
|
| JLA-21B-250-E-04 |
总线（欧标） |
MAIN HARNESS |
|
|
|
| JLA-21B-250-E-05 |
点火器 |
CDI |
|
|
|
| JLA-21B-250-E-06 |
继电器 |
RELAY |
|
|
|
| JLA-21B-250-E-07 |
高压包 |
IGNITION COIL |
|
|
|
| JLA-21B-250-E-08 |
整流器 |
VOLTAGE REGULATOR |
|
|
|
| JLA-21B-250-E-09 |
蜂鸣器 |
BUZZGE |
|
|
|
| JLA-21B-250-E-10 |
喇叭 |
HORN |
|
|
|
| JLA-21B-250-E-11 |
油管卡箍 |
GAS PIPE HOOP |
|
|
|
| JLA-21B-250-E-12 |
小水壶 |
WATER TANK |
|
|
|
| JLA-21B-250-E-13 |
水管卡箍 |
WATER PIPE HOOP |
|
|
|
| JLA-21B-250-E-14 |
水管 |
LONG WATER PIPER |
|
|
|
| JLA-21B-250-E-15 |
排气管支架 |
MUFFLER HOLDER |
|
|
|
| JLA-21B-250-E-16 |
排气管 |
EXHAUST MUFFLER |
|
|
|
| JLA-21B-250-E-17 |
排气管弹簧 |
Exhaust Pipe Spring |
|
|
|
| JLA-21B-250-E-18 |
（二次进气） |
ACCELERANT SET |
|
|
|
| JLA-21B-250-E-19 |
排气管消声器 |
silencer
for air inlet and exhaust piper |
|
|
| JLA-21B-250-E-20 |
排气管 |
Exhaust Pipe |
|
|
|
| JLA-21B-250-E-21 |
挂档杆 |
Hanging lever |
|
|
|
| JLA-21B-250-E-22 |
化油器 |
CARBURETOR |
|
|
|
| JLA-21B-250-E-23 |
空滤器 |
AIR FILTER |
|
|
|
| JLA-21B-250-E-24 |
风扇 |
FAN |
|
|
|
| JLA-21B-250-E-25 |
水箱 |
WATER RADIATOR |
|
|
|
| JLA-21B-250-E-26 |
短水管 |
SHORT WATER PIPER |
|
|
|
| JLA-21B-250-E-27 |
长水管 |
LONG WATER PIPER |
|
|
|
| JLA-21B-250-E-28 |
水管 |
LONG WATER PIPER |
|
|
|
| JLA-21B-250-E-29 |
进气管 |
AIR INTAKE PIPER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
