LeMeilleurDuQuad.Com JLA-921E |
|

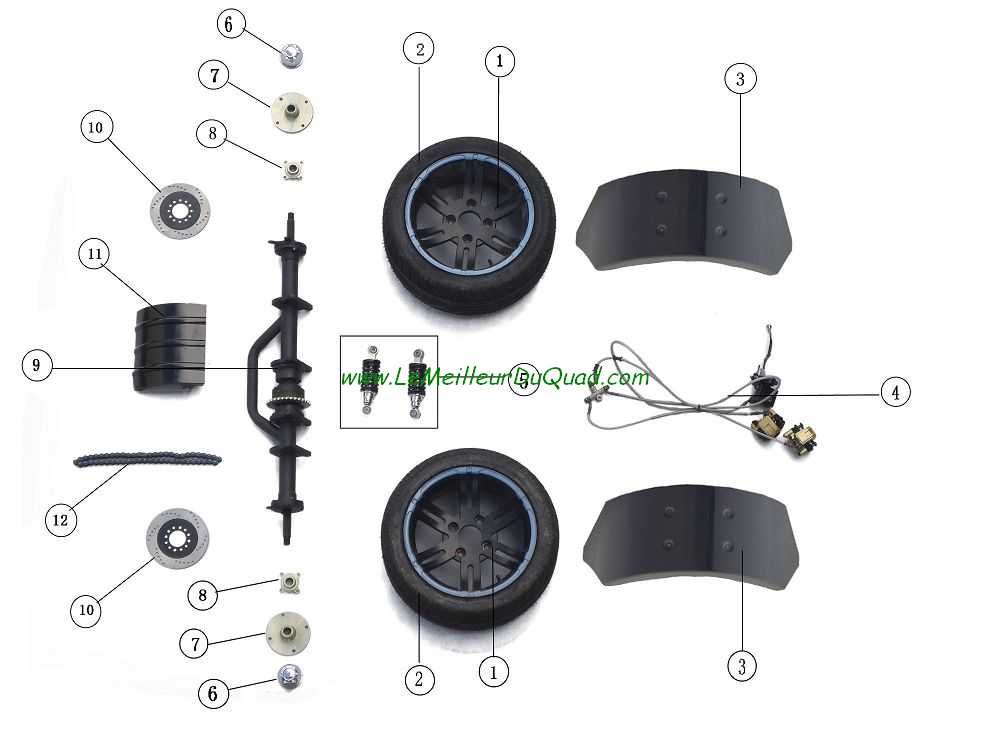

| Rear wheel |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1 |
Rear wheel |
Rear Rim |
|
|
|
|
|
| 2 |
Rear wheel |
Rear Tire |
|
|
|
|
|
| 3 |
Rear wheel |
Rear Fender |
|
|
|
|
|
| 4 |
Rear wheel |
Rear Brake Assembly |
|
|
|
|
|
| 5 |
Rear wheel |
Rear Shock Absorber |
|
|
|
|
|
| 6 |
Rear wheel |
Real Rim Cover |
|
|
|
|
|
| 7 |
Rear wheel |
Real Wheel Hub |
|
|
|
|
|
| 8 |
Rear wheel |
Rear Disk Brake Block |
|
|
|
|
|
| 9 |
Rear wheel |
Rear Axle Assembly |
|
|
|
|
|
| 10 |
Rear wheel |
Rear Brake Disc |
|
|
|
|
|
| 11 |
Rear wheel |
Chain Cover |
|
|
|
|
|
| 12 |
Rear wheel |
Chain |
|
|
|
|
|
| Front wheel |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1 |
Front wheel |
Right Holder Rubber Cover |
|
|
|
|
|
| 2 |
Front wheel |
Steering Holder Plug |
|
|
|
|
|
| 3 |
Front wheel |
handle bar |
|
|
|
|
|
| 4 |
Front wheel |
Left Holder Rubber Cover |
|
|
|
|
|
| 5 |
Front wheel |
Front Brake Assembly |
|
|
|
|
|
| 6 |
Front wheel |
Front Brake Disc |
|
|
|
|
|
| 7 |
Front wheel |
L Mirror |
|
|
|
|
|
| 8 |
Front wheel |
R Mirror |
|
|
|
|
|
| 9 |
Front wheel |
Front Rim |
|
|
|
|
|
| 10 |
Front wheel |
Front Tire |
|
|
|
|
|
| 11 |
Front wheel |
Right Front Shock Absorbing Trim Strip |
|
|
|
|
|
| 12 |
Front wheel |
Right Front Shock Absorber |
|
|
|
|
|
| 13 |
Front wheel |
Left Front Shock Absorbing Trim Strip |
|
|
|
|
|
| 14 |
Front wheel |
Left Front Shock Absorber |
|
|
|
|
|
| 15 |
Front wheel |
Lower Line |
|
|
|
|
|
| 16 |
Front wheel |
Clamping Block Mounting Plate |
|
|
|
|
|
| 17 |
Front wheel |
Steering Column Trim Ring |
|
|
|
|
|
| 18 |
Front wheel |
Steering Column Trim Ring |
|
|
|
|
|
| 19 |
Front wheel |
Upper Pressing Block |
|
|
|
|
|
| 20 |
Front wheel |
Lower Pressing Block |
|
|
|
|
|
| 21 |
Front wheel |
Steel Bowl Bearing |
|
|
|
|
|

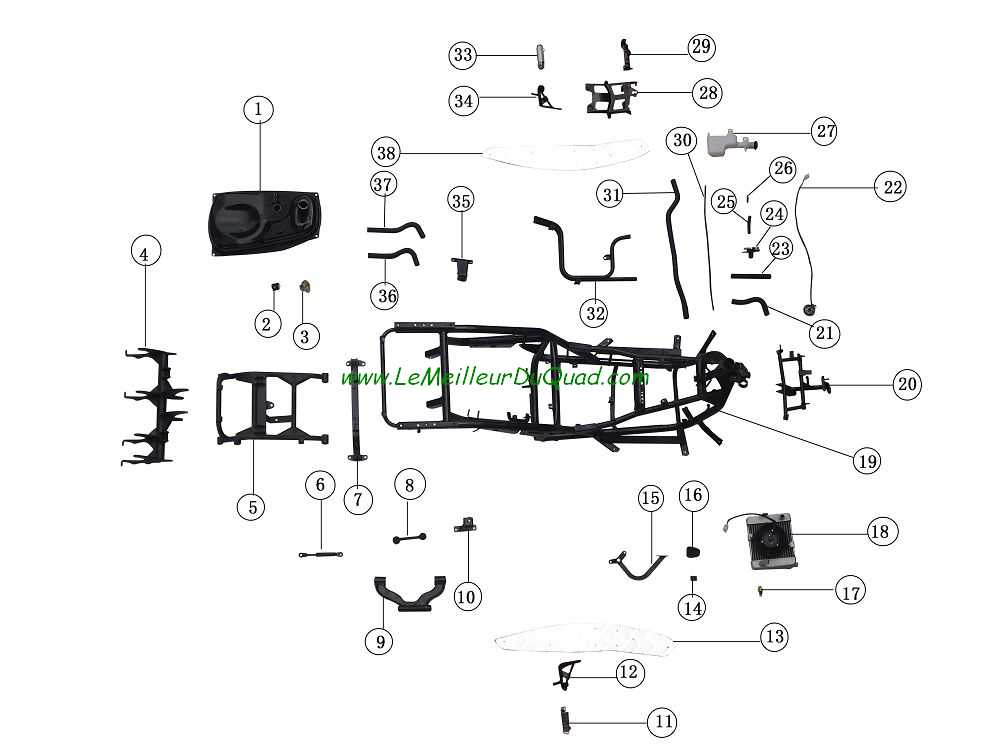

| Frame |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1 |
Frame |
Fuel Tank |
|
|
|
|
|
| 2 |
Frame |
Fuel Filter |
|
|
|
|
|
| 3 |
Frame |
Fuel Tank Cap |
|
|
|
|
|
| 4 |
Frame |
Rear Bottom Fork |
|
|
|
|
|
| 5 |
Frame |
Rear Fork |
|
|
|
|
|
| 6 |
Frame |
Gas Spring |
|
|
|
|
|
| 7 |
Frame |
Taillight Supporter |
|
|
|
|
|
| 8 |
Frame |
Engine Lifting Fixture Rod |
|
|
|
|
|
| 9 |
Frame |
Engine Lifting Fixture |
|
|
|
|
|
| 10 |
Frame |
Rear Shelf Right Bracket |
|
|
|
|
|
| 11 |
Frame |
Right Pedal |
|
|
|
|
|
| 12 |
Frame |
Right Pedal Bracket |
|
|
|
|
|
| 13 |
Frame |
Righ Pedal Mat |
|
|
|
|
|
| 14 |
Frame |
Foot Brake Rubber Mat |
|
|
|
|
|
| 15 |
Frame |
Foot Brake Lever |
|
|
|
|
|
| 16 |
Frame |
Foot Brake Lever Rubber Pad |
|
|
|
|
|
| 17 |
Frame |
Water Temperature Sensor |
|
|
|
|
|
| 18 |
Frame |
Radiator |
|
|
|
|
|
| 19 |
Frame |
FRAME |
|
|
|
|
|
| 20 |
Frame |
Head Lamp Support |
|
|
|
|
|
| 21 |
Frame |
Rubber Cooling Pipe |
|
|
|
|
|
| 22 |
Frame |
Tacho |
|
|
|
|
|
| 23 |
Frame |
Rubber Cooling Pipe |
|
|
|
|
|
| 24 |
Frame |
Filler |
|
|
|
|
|
| 25 |
Frame |
Rubber Cooling Pipe |
|
|
|
|
|
| 26 |
Frame |
Filler Linking Hose |
|
|
|
|
|
| 27 |
Frame |
Radiator |
|
|
|
|
|
| 28 |
Frame |
Seat Rocker |
|
|
|
|
|
| 29 |
Frame |
Rocker-arm Support |
|
|
|
|
|
| 30 |
Frame |
Expansion Tank High Temperature Tube |
|
|
|
|
|
| 31 |
Frame |
Rubber Cooling Pipe |
|
|
|
|
|
| 32 |
Frame |
Cooling Pipe |
|
|
|
|
|
| 33 |
Frame |
Left Pedal |
|
|
|
|
|
| 34 |
Frame |
Left Pedal Bracket |
|
|
|
|
|
| 35 |
Frame |
Rear Shelf Left Bracket |
|
|
|
|
|
| 36 |
Frame |
Rubber Cooling Pipe |
|
|
|
|
|
| 37 |
Frame |
Rubber Cooling Pipe |
|
|
|
|
|
| 38 |
Frame |
Left Pedal Mat |
|
|
|
|
|

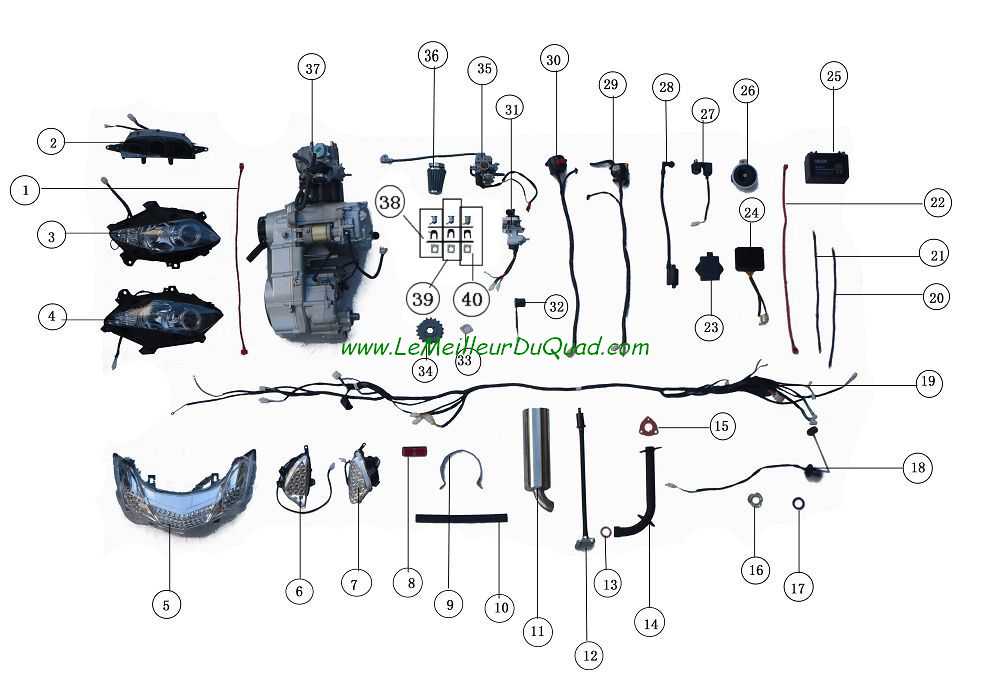

| Electrical device |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1 |
Electrical device |
Motor Wire |
|
|
|
|
|
| 2 |
Electrical device |
Meter |
|
|
|
|
|
| 3 |
Electrical device |
Right Headlight |
|
|
|
|
|
| 4 |
Electrical device |
Left Headlight |
|
|
|
|
|
| 5 |
Electrical device |
Tailight |
|
|
|
|
|
| 6 |
Electrical device |
Right Cornering Lamp |
|
|
|
|
|
| 7 |
Electrical device |
Left Cornering Lamp |
|
|
|
|
|
| 8 |
Electrical device |
Retroreflective Sheet |
|
|
|
|
|
| 9 |
Electrical device |
Exhaust Piple Clamp |
|
|
|
|
|
| 10 |
Electrical device |
Exhaust Pipe Intermediate Leather Lace |
|
|
|
|
|
| 11 |
Electrical device |
Exhaust Pipe |
|
|
|
|
|
| 12 |
Electrical device |
Secondary Gulper |
|
|
|
|
|
| 13 |
Electrical device |
Exhaust Pipe Cushion |
|
|
|
|
|
| 14 |
Electrical device |
Exhaust Pipe |
|
|
|
|
|
| 15 |
Electrical device |
Exhaust Pipe Gasket |
|
|
|
|
|
| 16 |
Electrical device |
Oiler Cardboard |
|
|
|
|
|
| 17 |
Electrical device |
Oiler Rubber Ring |
|
|
|
|
|
| 18 |
Electrical device |
Fuel Level Sensor |
|
|
|
|
|
| 19 |
Electrical device |
harness |
|
|
|
|
|
| 20 |
Electrical device |
Bond Strap |
|
|
|
|
|
| 21 |
Electrical device |
Bond Strap |
|
|
|
|
|
| 22 |
Electrical device |
Battery Wire |
|
|
|
|
|
| 23 |
Electrical device |
Igniter |
|
|
|
|
|
| 24 |
Electrical device |
Rectifier |
|
|
|
|
|
| 25 |
Electrical device |
Battery |
|
|
|
|
|
| 26 |
Electrical device |
Horn |
|
|
|
|
|
| 27 |
Electrical device |
Relay |
|
|
|
|
|
| 28 |
Electrical device |
High Voltage Ignition Coil |
|
|
|
|
|
| 29 |
Electrical device |
Right Functional Switch |
|
|
|
|
|
| 30 |
Electrical device |
Right Functional Switch |
|
|
|
|
|
| 31 |
Electrical device |
Electrical Door Lock |
|
|
|
|
|
| 32 |
Electrical device |
Flash Apparatus |
|
|
|
|
|
| 33 |
Electrical device |
Chain Clamp Circlip |
|
|
|
|
|
| 34 |
Electrical device |
Chain Clamp |
|
|
|
|
|
| 35 |
Electrical device |
Carburetor |
|
|
|
|
|
| 36 |
Electrical device |
Gasoline Filter |
|
|
|
|
|
| 37 |
Electrical device |
Engine Assembly |
|
|
|
|
|
| 38 |
Electrical device |
Left Toolbox Lock |
|
|
|
|
|
| 39 |
Electrical device |
Fuel Tank Cover Panel Lock |
|
|
|
|
|
| 40 |
Electrical device |
Right Toolbox Lock |
|
|
|
|
|
| Outer plastic parts |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1 |
Outer plastic parts |
Front Fender |
|
|
|
|
|
| 2 |
Outer plastic parts |
Headcover |
|
|
|
|
|
| 3 |
Outer plastic parts |
Headcover Trim Strip |
|
|
|
|
|
| 4 |
Outer plastic parts |
Left Plate |
|
|
|
|
|
| 5 |
Outer plastic parts |
Meter Cover |
|
|
|
|
|
| 6 |
Outer plastic parts |
Right Plate |
|
|
|
|
|
| 7 |
Outer plastic parts |
Left Front Ornamental Plate of Left Toolbox |
|
|
|
|
|
| 8 |
Outer plastic parts |
Toolbox Ornamental Cover |
|
|
|
|
|
| 9 |
Outer plastic parts |
Left Front Ornamental Plate of Right Toolbox |
|
|
|
|
|
| 10 |
Outer plastic parts |
Fuel Tank Cover |
|
|
|
|
|
| 11 |
Outer plastic parts |
Left Pedal Cover |
|
|
|
|
|
| 12 |
Outer plastic parts |
Fuel Tank Ornamental Ring |
|
|
|
|
|
| 13 |
Outer plastic parts |
Right Pedal Cover |
|
|
|
|
|
| 14 |
Outer plastic parts |
Left Toolbox Cover |
|
|
|
|
|
| 15 |
Outer plastic parts |
Cushion Front Ornamental Plate |
|
|
|
|
|
| 16 |
Outer plastic parts |
Right Toolbox Cover |
|
|
|
|
|
| 17 |
Outer plastic parts |
Right Regula |
|
|
|
|
|
| 18 |
Outer plastic parts |
Cushion |
|
|
|
|
|
| 19 |
Outer plastic parts |
Left Regula |
|
|
|
|
|
| 20 |
Outer plastic parts |
Left Panel |
|
|
|
|
|
| 21 |
Outer plastic parts |
Rear Rack |
|
|
|
|
|
| 22 |
Outer plastic parts |
Right Panel |
|
|
|
|
|
| 23 |
Outer plastic parts |
Tailight Bottom Cover |
|
|
|
|
|
| 24 |
Outer plastic parts |
Rear Storage Rack Cover |
|
|
|
|
|
| Inner plastic parts |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1 |
Inner plastic parts |
Righ Pedal Mat |
|
|
|
|
|
| 2 |
Inner plastic parts |
Battery Plate |
|
|
|
|
|
| 3 |
Inner plastic parts |
Battery Compartment Cover |
|
|
|
|
|
| 4 |
Inner plastic parts |
Grocery Box |
|
|
|
|
|
| 5 |
Inner plastic parts |
Toolbox |
|
|
|
|
|
| 6 |
Inner plastic parts |
Frame Fender |
|
|
|
|
|
| 7 |
Inner plastic parts |
Aire Intake Grid |
|
|
|
|
|
| 8 |
Inner plastic parts |
Panel Mounted Cushion |
|
|
|
|
|
| 9 |
Inner plastic parts |
Frame Front Fender |
|
|
|
|
|
| 10 |
Inner plastic parts |
Left Toolbox Cover |
|
|
|
|
|
| 11 |
Inner plastic parts |
Seat Ledger Plate |
|
|
|
|
|
| 12 |
Inner plastic parts |
Grocery Box Small Cover |
|
|
|
|
|
| 13 |
Inner plastic parts |
Left Pedal Mat |
|
|
|
|
|
| 14 |
Inner plastic parts |
Grocery Box Cover |
|
|
|
|
|
| 15 |
Inner plastic parts |
Rear Fender |
|
|
|
|
|
