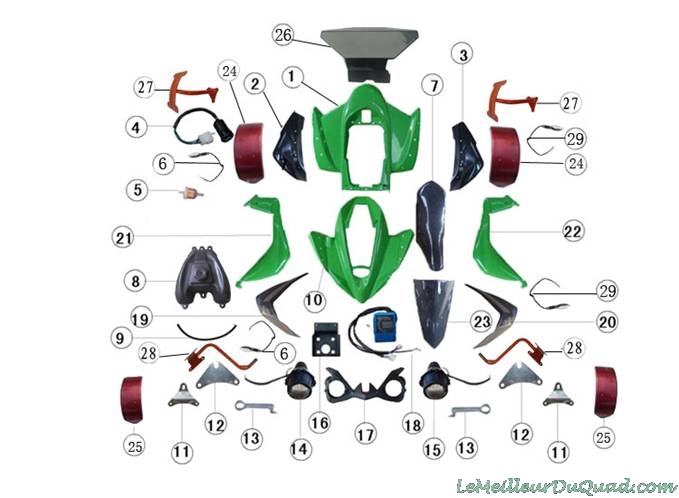

| 覆盖件 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| JLA-300CC-01 |
后大板 |
REAR FENDER |
|
|
|
|
| JLA-300CC-02 |
后左边条 |
REAR LEFT FENDER |
|
|
|
|
| JLA-300CC-03 |
后右边条 |
REAR RIGHT FENDER |
|
|
|
|
| JLA-300CC-04 |
电门锁 |
IGNITION SWITCH |
|
|
|
|
| JLA-300CC-05 |
油滤器 |
OIL FILTER |
|
|
|
|
| JLA-300CC-06 |
右转向灯 |
|
|
|
|
|
| JLA-300CC-07 |
座垫 |
SEAT |
|
|
|
|
| JLA-300CC-08 |
油箱 |
GAS TANK |
|
|
|
|
| JLA-300CC-09 |
油管 |
GAS PIPE |
|
|
|
|
| JLA-300CC-10 |
前大板 |
FRONT FENDER |
|
|
|
|
| JLA-300CC-11 |
大灯连接片 |
HEADLIGHT HOLDER PART |
|
|
|
|
| JLA-300CC-12 |
大灯连接片 |
HEADLIGHT HOLDER PART |
|
|
|
|
| JLA-300CC-13 |
前大灯支架 |
HEADLIGHT HOLDER |
|
|
|
|
| JLA-300CC-14 |
左前大灯 |
HEADLIGHT LEFT |
|
|
|
|
| JLA-300CC-15 |
右前大灯 |
HEADLIGHT RIGHT |
|
|
|
|
| JLA-300CC-16 |
仪表座 |
SPEEDMETER HOLDER |
|
|
|
|
| JLA-300CC-17 |
大灯盖板 |
|
|
|
|
|
| JLA-300CC-18 |
仪表 |
SPEEDMETER |
|
|
|
|
| JLA-300CC-19 |
前左边条 |
LEFT LEFT FENDER |
|
|
|
|
| JLA-300CC-20 |
前右边条 |
LEFT
RIGHTFENDER |
|
|
|
|
| JLA-300CC-21 |
左侧板 |
FRONT LEFT FENDER |
|
|
|
|
| JLA-300CC-22 |
右侧板 |
FRONT RIGHT FENDER |
|
|
|
|
| JLA-300CC-23 |
前盖 |
HEAD COVER |
|
|
|
|
| JLA-300CC-24 |
后挡泥板 |
|
|
|
|
|
| JLA-300CC-25 |
前挡泥板 |
|
|
|
|
|
| JLA-300CC-26 |
后轴盖 |
|
|
|
|
|
| JLA-300CC-27 |
后挡泥板支架 |
|
|
|
|
|
| JLA-300CC-28 |
前挡泥板支架 |
|
|
|
|
|
| JLA-300CC-29 |
左转向灯 |
|
|
|
|
|
| |
|
|
|
|
|
|
| 车架及附件 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| JLA-300CC-B-01 |
塑料件支架 |
COVER HOLDER |
|
|
|
|
| JLA-300CC-B-02 |
脚刹杆 |
REAR BARKE PEDAL |
|
|
|
|
| JLA-300CC-B-03 |
后刹车开关 |
REAR BRAKE SWITCH |
|
|
|
|
| JLA-300CC-B-04 |
线卡 |
LINE HOLDER |
|
|
|
|
| JLA-300CC-B-05 |
刹车回位弹簧 |
|
|
|
|
|
| JLA-300CC-B-06 |
塑料件支架 |
COVER
HOLDER |
|
|
|
|
| JLA-300CC-B-07 |
右脚踏护栏 |
|
|
|
|
|
| JLA-300CC-B-08 |
塑料件支架 |
COVER
HOLDER |
|
|
|
|
| JLA-300CC-B-09 |
后反光片 |
REAR REFLECTOR |
|
|
|
|
| JLA-300CC-B-10 |
靠背架 |
REAR SEAT FRAME
CARRIER |
|
|
|
|
| JLA-300CC-B-11 |
后尾架 |
|
|
|
|
|
| JLA-300CC-B-12 |
靠背架 |
REAR SEAT FRAME
CARRIER |
|
|
|
|
| JLA-300CC-B-13 |
后靠背 |
REAR SEAT |
|
|
|
|
| JLA-300CC-B-14 |
靠背架 |
REAR SEAT FRAME |
|
|
|
|
| JLA-300CC-B-15 |
后尾灯 |
REARLIGHT |
|
|
|
|
| JLA-300CC-B-16 |
左脚踏护栏 |
|
|
|
|
|
| JLA-300CC-B-17 |
左脚踏 |
|
|
|
|
|
| JLA-300CC-B-18 |
脚蹬片 |
|
|
|
|
|
| JLA-300CC-B-19 |
右脚踏 |
|
|
|
|
|
| JLA-300CC-B-20 |
塑料件支架 |
COVER
HOLDER |
|
|
|
|
| JLA-300CC-B-21 |
前保护架 |
FRONT BUMP |
|
|
|
|
| JLA-300CC-B-22 |
主车架 |
FRAME |
|
|
|
|
| |
|
|
|
|
|
|
| 后轮及悬挂系统 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| JLA-300CC-C-01 |
后摇臂 |
|
|
|
|
|
| JLA-300CC-C-02 |
传感器 |
SPEED SENSOR |
|
|
|
|
| JLA-300CC-C-03 |
轮毂螺丝 |
WHEEL BOLT |
|
|
|
|
| JLA-300CC-C-04 |
后轮带铝轮毂 |
REAR WHEEL AND
RIM NUT M22 |
|
|
|
|
| JLA-300CC-C-05 |
轮毂盖 |
WHEEL COVER |
|
|
|
|
| JLA-300CC-C-06 |
后减震 |
REAR SHOCK |
|
|
|
|
| JLA-300CC-C-07 |
发动机前固定架 |
|
|
|
|
|
| JLA-300CC-C-08 |
发动机底盘保护架 |
|
|
|
|
|
| JLA-300CC-C-09 |
链条 |
CHAIN |
|
|
|
|
| JLA-300CC-C-10 |
链轮 |
REAR SPROCKET |
|
|
|
|
| JLA-300CC-C-11 |
发动机后固定架 |
|
|
|
|
|
| JLA-300CC-C-12 |
一拖三碟刹器 |
DISC BRAKE(WITH 3 ) |
|
|
|
|
| JLA-300CC-C-13 |
后碟刹盘 |
REAR BRAKE DISC |
|
|
|
|
| JLA-300CC-C-14 |
后轴 |
REAR AXLE ASSY |
|
|
|
|
| JLA-300CC-C-15 |
M22螺母 |
NUT M22 |
|
|
|
|
| JLA-300CC-C-16 |
后桥偏心轮 |
|
|
|
|
|
| JLA-300CC-C-17 |
后轮连接板 |
REAR WHEEL HUB |
|
|
|
|
| JLA-300CC-C-18 |
后桥隔套 |
|
|
|
|
|
| JLA-300CC-C-19 |
后轴螺丝 |
CROWN NUT |
|
|
|
|
| JLA-300CC-C-20 |
垫片 |
WASHER |
|
|
|
|
| JLA-300CC-C-21 |
后桥后固定架 |
|
|
|
|
|
| JLA-300CC-C-22 |
传感器固定架 |
|
|
|
|
|
|
|
|
|
|
|
|
| 前轮操作系统 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| JLA-300CC-D-01 |
手把压块（上） |
HANDLE BAR HOLDER UP |
|
|
|
|
| JLA-300CC-D-02 |
手把（200-6） |
HANDLE BAR |
|
|
|
|
| JLA-300CC-D-03 |
后视镜 |
MIRROR |
|
|
|
|
| JLA-300CC-D-04 |
左手把套 |
HANDLE BAR GRIP |
|
|
|
|
|
| JLA-300CC-D-05 |
左右把套堵头 |
|
|
|
|
|
| JLA-300CC-D-06 |
右手把套 |
HANDLE BAR GRIP |
|
|
|
|
| JLA-300CC-D-07 |
功能开关（欧标）右 |
HANDLE SWITCH LEFT |
|
|
|
|
| JLA-300CC-D-08 |
龙头锁支架 |
STEERING STEM LOCK
HOLDER |
|
|
|
|
| JLA-300CC-D-09 |
前助刹手柄 |
RIGHT HANDLE |
|
|
|
|
| JLA-300CC-D-10 |
后视镜座 |
MIRROR HOLDER |
|
|
|
|
| JLA-300CC-D-11 |
手把压块（下） |
HANDLE BAR HOLDER
DOWN |
|
|
|
|
| JLA-300CC-D-12 |
油门线 |
THROTTLE
CABLE |
|
|
|
|
| JLA-300CC-D-13 |
手刹线 |
BRAKE
CABLE |
|
|
|
|
| JLA-300CC-D-14 |
右上摇臂 |
|
|
|
|
|
| JLA-300CC-D-15 |
左上摇臂 |
|
|
|
|
|
| JLA-300CC-D-16 |
方向柱 |
STEERING STEM |
|
|
|
|
| JLA-300CC-D-17 |
方向柱压块 |
STEERING STEM CLIP |
|
|
|
|
| JLA-300CC-D-18 |
压紧块隔套 |
CLIP BUSH |
|
|
|
|
| JLA-300CC-D-19 |
转向节左 |
KNUCKLE PIVOT SET
LIFT |
|
|
|
|
| JLA-300CC-D-20 |
旋转体 |
FRONT WHEEL HUB |
|
|
|
|
| JLA-300CC-D-21 |
前减震右 |
FRONT SHOCK RIGHT |
|
|
|
|
| JLA-300CC-D-22 |
前减震左 |
FRONT SHOCK LIFT |
|
|
|
|
| JLA-300CC-D-23 |
球头拉杆 |
STEERING ROD |
|
|
|
|
| JLA-300CC-D-24 |
转向节右 |
KNUCKLE PIVOT SET
RIGHT |
|
|
|
|
| JLA-300CC-D-25 |
球头拉杆 |
STEERING ROD |
|
|
|
|
| JLA-300CC-D-26 |
前碟刹盘 |
FRONT BRAKE DISC |
|
|
|
|
| JLA-300CC-D-27 |
前轮带铝轮毂 |
FRONT WHEEL AND RIM |
|
|
|
|
| JLA-300CC-D-28 |
轮毂螺帽 |
WHEEL NUT |
|
|
|
|
| JLA-300CC-D-29 |
右下摇臂 |
|
|
|
|
|
| JLA-300CC-D-30 |
左下摇臂 |
|
|
|
|
|
| JLA-300CC-D-31 |
轮毂盖 |
WHEEL COVER |
|
|
|
|
| 发动机，消声器，电器件 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| JLA-300CC-E-01 |
发动机 |
ENGINE |
|
|
|
|
| JLA-300CC-E-02 |
石棉垫 |
GASKET |
|
|
|
|
| JLA-300CC-E-03 |
电池 |
BATTERY |
|
|
|
|
| JLA-300CC-E-04 |
总线（欧标） |
MAIN HARNESS |
|
|
|
|
| JLA-300CC-E-05 |
整流器 |
VOLTAGE REGULATOR |
|
|
|
|
| JLA-300CC-E-06 |
继电器 |
RELAY |
|
|
|
|
| JLA-300CC-E-07 |
高压包 |
IGNITION COIL |
|
|
|
|
| JLA-300CC-E-08 |
点火器 |
CDI |
|
|
|
|
| JLA-300CC-E-09 |
蜂鸣器 |
BUZZGE |
|
|
|
|
| JLA-300CC-E-10 |
喇叭 |
HORN |
|
|
|
|
| JLA-300CC-E-11 |
油管卡箍 |
GAS PIPE HOOP |
|
|
|
|
| JLA-300CC-E-12 |
小水壶 |
WATER TANK |
|
|
|
|
| JLA-300CC-E-13 |
水管卡箍 |
WATER PIPE HOOP |
|
|
|
|
| JLA-300CC-E-14 |
水管 |
LONG WATER PIPER |
|
|
|
|
| JLA-300CC-E-15 |
排气管支架 |
MUFFLER HOLDER |
|
|
|
|
| JLA-300CC-E-16 |
排气管 |
EXHAUST MUFFLER |
|
|
|
|
| JLA-300CC-E-17 |
水管 |
LONG WATER PIPER |
|
|
|
|
| JLA-300CC-E-18 |
长水管 |
LONG WATER PIPER |
|
|
|
|
| JLA-300CC-E-19 |
短水管 |
SHORT WATER PIPER |
|
|
|
|
| JLA-300CC-E-20 |
空滤器 |
AIR FILTER |
|
|
|
|
|
| JLA-300CC-E-21 |
挂档杆 |
|
|
|
|
|
|
| JLA-300CC-E-22 |
化油器 |
CARBURETOR |
|
|
|
|
| JLA-300CC-E-23 |
水箱 |
WATER RADIATOR |
|
|
|
|
| JLA-300CC-E-24 |
排气管消声器 |
silencer for air inlet and
exhaust piper |
|
|
|
|
| JLA-300CC-E-25 |
档位指示 |
|
|
|
|
|
| JLA-300CC-E-26 |
（二次进气） |
ACCELERANT SET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
