                                    LINGYING VEHICLE CO.,LTD
Add:Shihou Industrial Area,Yongkang City,Zhejiang Province,China,321306
LYDA203E-6(luxury version)
Parts Service Manual
(References can be used for LYDA203E-3/5/6A)
调整大小 未命名副本.jpg

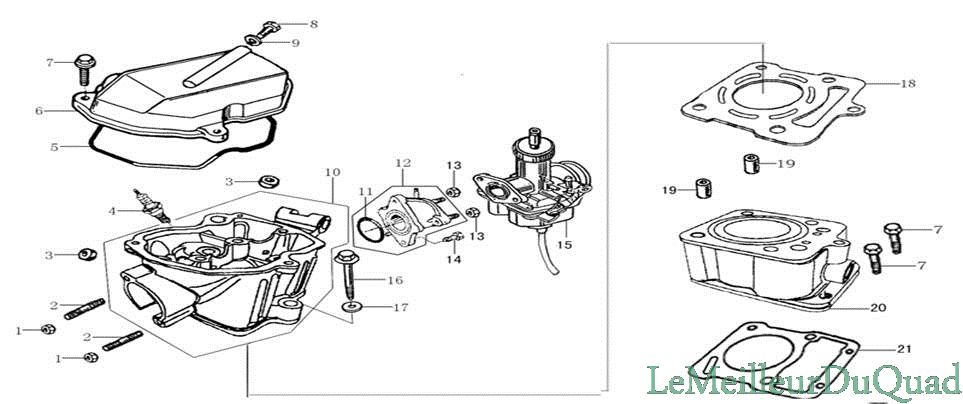

E-1 气缸 Cylinder Assembly
气缸部件CG250(水冷摩擦倒档)

    Parts name Description
S/N Part No.
1 B06170000800009 GB6170 nuts M8 NUT M8
2 91138-G012-0000 AX100 cylinder head exhaust port stud the M8 × 36 STUD M8×36
3 1572B-I008-0000 CG125D gear oil cover combination VALVE STEM SEAL  ASSY
4 81300-I006-0000 The CB125 spark plug (D8TC) SPARK PLUG  (D8TC)
5 90103-LA51-0000 The SB200 cylinder head cover seals SEAL RING,
CYLINDER HEAD UPPER COVER
6 11226-LA73-0000 CG200-A water-cooled cylinder head cover CYLINDER HEAD UPPER COVER
7 B05789000600287 Bolt M6 × 28 BOLT M6×28
8 B05789000600127 Bolt M6 × 12 BOLT M6×12
9 93301-70651012000 Aluminum gasket 6.5 × 1 × 12 WASHER 6.5×1×12
10 1122B-MA97-1000 CG250 water-cooled cylinder head assembly CYLINDER HEAD ASSY
11 90101-20335000300 O-ring 33.5 x 3 O-RING 33.5×3
12 15800-L044-41HB CB200 intake manifold combinations (JQ-41HB) PIPE COMP,INTAKE (JQ-41)
13 B06170000600009 GB6170 nut M6 NUT M6
14 B0578300060020700 Bolt M6, × 20 BOLT M6×20

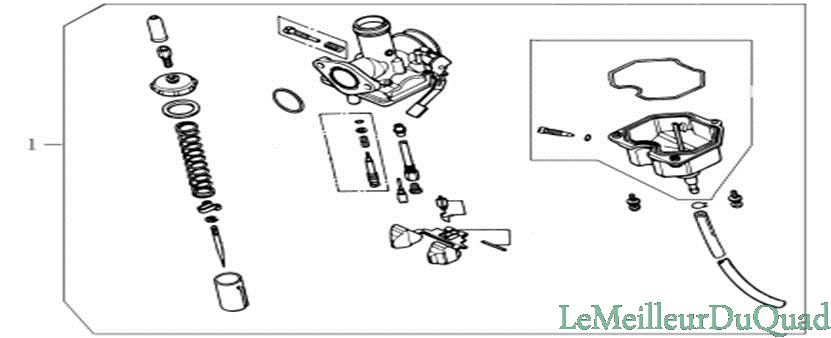

15 17100-MA97-0000 CG250 water-cooled carburetor(PZ30 automatic throttle with pump) CARBURETOR ASSY
16 91104-MA95-0000 CG250 cylinder head and cylinder bolts M8 × 86 BOLT M8×82
17 93301-80852218000 Copper washer 8.5 × 2.2 × 18 WASHER 8.5×2.2×18
18 9022B-MA97-0000 CG250 water-cooled cylinder head gasket combination GASKET ASSY,
CYLINDER HEAD
19 91521-10002000000 Locating pin 10 × 20 DOWEL PIN 10×20
20 1110B-MA97-0000 CG250 water-cooled cylinder block parts CYLINDER BLOCK  COMP
21 90205-LA73-0000 Cylinder block gasket GASKET,CYLINDER BLOCK

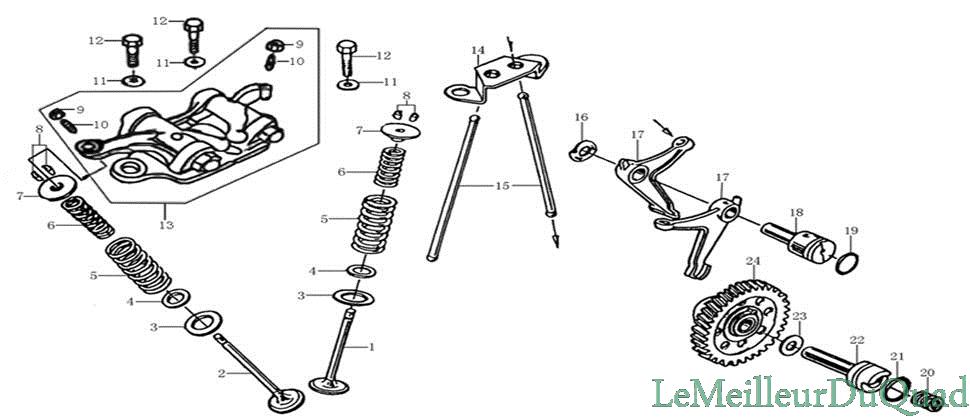

E-2 配气机构 Camshaft & Valves
配气机构CG250(水冷摩擦挡)


    Parts name Description
S/N Part No.
1 15701-LA01-0000 CB200-A oil cooling the intake valve INLET VALVE
2 15702-LA01-0000 CB200-A oil cooled exhaust valve OUTLET VALVE
3 15706-I008-0000 CG125D gas door spring seat SPPING SEAT VALVE
4 15708-I008-0000 CG125D valve spring seat INNER SPRING SEAT,VALVE
5 15703-I008-0000 CG125D gas outside the spring OUTER SPRING
6 15704-I008-0000 CG125D valve within the spring INNER SPRING
7 15705-I006-0000 CB125 valve spring bearing (Theravada) RETAINER,VALVE SPRING
8 15707-I006-0000 CB125 gas door lock folder VALVE COTTER
9 15403-I008-0000 CG125D valve clearance adjusting nut ADJUSTING NUT,VALVE CLEARANGE
10 15404-I008-0000 CG125D valve clearance adjusting screw ADJUSTING SCREW,VALVE CLEARANGE
11 93301-80852218000 Copper washer 8.5 × 2.2 × 18 WASHER 8.5×2.2×18
12 91180-IA20-0000 SB125 on the rocker arm bolts M8 × 33 BOLT M8×33
13 1540A-IA20-0000 SB125 valve rocker arm combination ARM ROCKER ASSY
14 15501-LA73-0000 CG200-A water-cooled push rod guide tube PUSH LEVER STAND
15 1532A-MA95-0000  putter Package PUSH LEVER COMP
16 93303-51230220900 Wave washers, 12.3 × 0.2 × 20.9 WAVE WASHER
12.3×0.2×20.9
17 15407-I008-0000 CG125D under the rocker arm LOWER ROCKER ARM
18 15408-I008-0000 CG125D under the rocker shaft SHAFT,LOWER ROCKER ARM
19 90101-20180000250 O-ring 18 × 2.5 O-RING 18×2.5
20 15109-I008-0000 CG125D with camshaft spring SPRING
21 90101-20200000250 O-ring 20 × 2.5 O-RING 20×2.5
22 15105-J034-0000 CG150D with gas cam mandrel AIR MLET  CAM  SHAFT
23 93301-51421024000 Camshaft washer 14.2 × 1 × 24 THRUST WASHER
14.2×1×24
24 1510A-I008-0000 CG125D being driven gear parts TIMING DRIVEN
 SPROCKET COMP

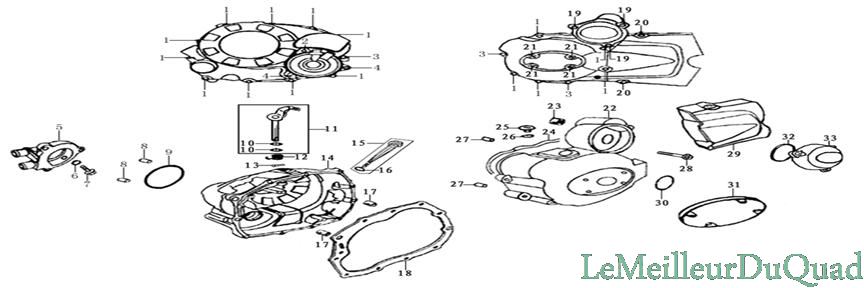

E-3 曲轴箱盖  Crankcase  Cover
曲轴箱盖3-1CG250(水冷摩擦倒


    Parts name Description
S/N Part No.
1 B166740A0600407 Small cap bolt M6 × 40 BOLT M6×40
2 B166740A0600167 Small cap bolt M6 × 16 BOLT M6×16
3 B166740A0600507 Small cap bolt M6 × 50 BOLT M6×50
4 B166740A0600257 Small cap bolt M6 × 25 BOLT M6×25
5 19001-IA20-0003 The SB125 pump cover WATER PUMP COVER
6 90101-30085000190 O-ring 8.5 × 1.9 (fluorine rubber) O-RING  8.5×1.9
7 91132-IA20-0000 SB125 water pump cover water bolt the M8 × 10 BOLT M8×10
8 91521-08001200063 Locating pin 8 × 12 × 6.3 DOWEL PIN 8×12
9 90101-30630000265 O-ring 63 x 2.65 (fluorine rubber) O-RING  65×2.65
10 90101-10090000180 O-ring 9 × 1.8 O-RING9×1.8
11 2242A-I006-0300 CB125-3 clutch operating arm combination CLUTCH LEVER ASSY
12 22427-I006-0000 CB125 clutch operating arm spring CLUTCH LEVER SPRING 3*12
13 B0087901030120000 GB879.1 pin 3 × 12 POSITION PIN
14 12421-IA20-0501 SB125 right crankcase cover -4 # only charged to start R.CRANKCASE COVER ASSY
15 14301-I006-0000 CB125 oil foot combination OIL RULER ASSY
16 90101-10180000300 O-ring 18 x 3 O-RING 18×3
17 91521-08001400000 Locating pin 8 × 14 DOWEL PIN 8×14
18 90206-I008-0000 CG125D right crankcase cover gasket GASKET,R.CRANKCASE COVER
19 B166740A0600207 Small cap bolt M6 × 20 BOLT M6×20
20 B166740A0600287 Small cap bolt M6 × 28 BOLT  M6×28
21 B00818000600122 Screw M6 × 12 SCREW M6×12
22 12301-I008-1000 CG125D left crankcase cover (whale paragraph) L.CRANKCASE COVER
23 92102-000HK101410 Needle bearing (HK101410,) NEEDLE BEARING(HK101410)
24 90204-I008-0000 CG125D left crankcase front cover gasket GASKET,L.CRANKCASE COVER
25 12303-G011-0000 C100 overlooked manhole covers CAP,SMALL SIGHT HOLE
26 90101-10132000265 O-ring 13.2 × 2.65 O-RING  13.2×2.65
27 91521-10001400000 Locating pin 10 × 14 DOWEL PIN 10×14
28 B166740A0600257 Small cap bolt M6 × 25 BOLT  M6×25
29 12302-I008-1000 CG125D left crankcase cover (whale models) BACK COVER,L.CRANKCASE
30 90101-10274000265 O-ring 27.4 × 2.65 O-RING 27.4×2.65
31 12307-I008-1000 CG125D left crankcase cover the decorative cover DECORATE COVER,
L.CRANKCASE
32 90101-10620000300 (Whale paragraph) " O-RING 62×3
33 12308-I008-1000 O-ring 62 x 3 COVER,REDUCTION GEAR

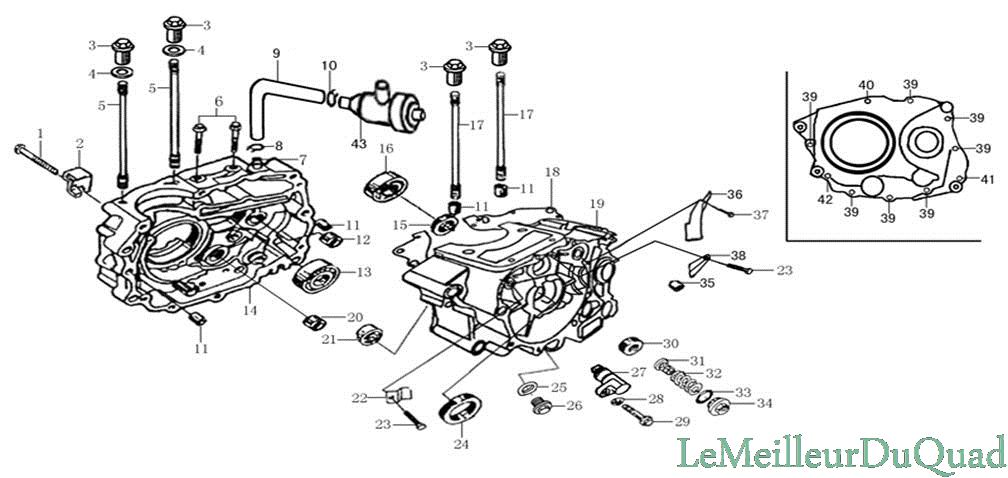

E-4 曲轴箱 Crankcase
曲轴箱CG250(水冷摩擦倒档)


    Parts name Description
S/N Part No.
1 B166740A0600657 Small cap bolt M6 × 65 BOLT  M6×65
2 22422-I006-0001 CB125-2 # clutch wire rope bracket CLUTCH CABLE  STAND
3 91212-I008-0000 CG125D nut the M8 × 32 NUT  M8×32
4 93301-C125202200B Flat washers 12.5 × 2 × 22 WASHER 12.5×2×22
5 91102-MA95-0000  cylinder stud B STUD B
6 B05789000600287 Bolt M6 × 28 BOLT M6×28
7 12109-I006-0000 CB125 through the tracheal connector BREATHER TUBE
8 16157-I008-0300 CG125D exhaust gas recirculation pipe clamp 15.3(Strip type) BREATHER TUBE
9 12105-J034-0000 CG150D snorkel BREATHER TUBE
10 16157-I008-0100 CG125D exhaust gas circulation pipe clamp 15.3 BREATHER TUBE
11 91521-10001400000 Locating pin 10 × 14 DOWEL PIN 10×14
12 92102-000NK152712 Needle Roller Bearings (NK152712) NEEDLE BEARING (NK152712)
13 92102-00000006006 Bearings (6006) BEARING (6006)
14 1222B-MA97-0000  water-cooled friction reverse right crankcase combination R.CRANKCASE ASSY
15 90303-I006-0000 The CB125 Vice shaft seal 20 × 34 × 7 OIL SEAL 20×34×7
16 92102-00000006204 Bearings (6204) BEARING (6204)
17 91101-MA95-0000  cylinder stud A STUDA
18 90208-LA73-0000 CG200-A water-cooled crankcase gasket GASKET,CRANKCASE
19 1212B-MA97-0000  water-cooled friction reverse left crankcase combination L.CRANKCASE ASSY
20 92102-00000HK2110 Needle Roller Bearings (HK2110) NEEDLE BEARING (HK2110)
21 92102-0000006202Z Bearing (6202Z) BEARING (6202Z)
22 12102-I008-0000 CG125D gear positioning plate GEAR LOCATING PLATE
23 B05783000600127 Bolt M6 × 12 BOLT M6×12
24 90302-I008-0000 CG125D crankshaft oil seal 34 × 50 × 7 OIL SEAL 34×50×7
25 93301-71251520000 Aluminum washer 12.5 × 1.5 × 20 WASHER 12.5×1.5×20
E-4 曲轴箱 Crankcase
曲轴箱CG250(水冷摩擦倒档)


    Parts name Description
S/N Part No.
26 91103-D002-0000 70 oil drain plug M12 x 1.5 DRAIN PLUG  M12x1.5
27 1213B-MA95-0000 The  pressure off body combination PRESSING PIN ASSY
28 93301-60671014400 Thrust washer 6.7 × 1 × 14.4 THRUST WASHER
 6.7×1×14.4
29 B05783000600257 Bolt M6 × 25 BOLT M6×25
30 90301-I006-0000 The CB125 shift arm oil seal 14 × 28 × 7 OIL SEAL 14×28×7
31 1431B-I006-0000 CB125 oil filter combinations OIL MESH SCREEN COMP
32 14221-I006-0000 CB125 oil filter spring SPRING,OIL MESH SCREEN
33 90101-20350000300 O-ring 35 x 3 O-RING 35×3
34 11230-I006-0000 CB125 valve chamber cover VALVE COVER
35 92102-00000HK101410 Needle bearing (HK101410,) NEEDLE BEARING(HK101410)
36 12103-I008-0000 CG125D block line piece PLATE
37 B166740A0600127 Small cap bolts M6 x 12 BOLT M6×12
38 15108-I008-0000 CG125D camshaft baffle POSITION PLATE,CAMSHAFT
39 B166740A0600507 Small cap bolt M6 × 50 BOLT M6×50
40 B166740A0601007 Small cap bolt M6 × 100 BOLT M6×100
41 B166740A0600707 Small cap bolt M6 × 70 BOLT M6×70
42 B166740A0600607 Small cap bolt M6 × 60 BOLT M6×60
43 12162-MA75-0000 The LY250 oil and gas separator SEPARATOR, FUEL AND AIR
E-5 机油泵 Oil Pump
机油泵-滤清器总成CG250(水冷


    Parts name Description
S/N Part No.
1 14200-IA20-0100 SB125-2 # oil filter parts OIL FILTER COMP
2 14201-I006-0000 CB125 flowlines EX-TUBE,OIL
3 B00820000500122 Screw M5 x 12 SCREW M5×12
4 14202-I006-0000 CB125 oil filter tubing spring SPRING,EX TUBE
5 14207-I006-0000 CB125 oil filter cover COVER,OIL FILTER
6 14208-I006-0000 CB125 oil filter cotter pin COTTER PIN,OIL FILTER
7 90209-IA20-0000 The SB125 filter end cap seal GASKET,FILTER HEAD COVER
8 14203-IA20-0100 SB125-2 # oil filter rotor components OIL FILTER BODY
9 23101-I006-0000 CB125 driving gear DRIVE GEAR
10 B00819010600302 Screw M6, × 30 SCREW  M6×30
11 14107-LA73-0000 CG200-A water-cooled gear drive shaft DRIVE SHAFT, GEAR
12 14102-LA73-0000 CG200-A water-cooled machine oil pump gear DRIVE GEAR,OIL PUMP
13 14110-LA73-0000 CG200-A water-cooled machine pump housing OIL PUMP CASING
14 14112-LA73-0000 CG200-A water-cooled oil pump outer rotor OUTER ROTOR,OIL PUMP
15 14111-LA73-0000 CG200-A water-cooled oil pump inner rotor INNER ROTOR,OIL PUMP
16 14108-I006-0000 The CB125 machine oil pump cover OIL PUMP COVER
17 B00819000400122 Screw M4 x 12 SCREW M4×12
18 90101-10094000240 O-ring 9.4 × 2.4 O-RING 9.4×2.4
19 14100-LA73-0000 CG200-A water-cooled machine pump parts OIL PUMP ASSY

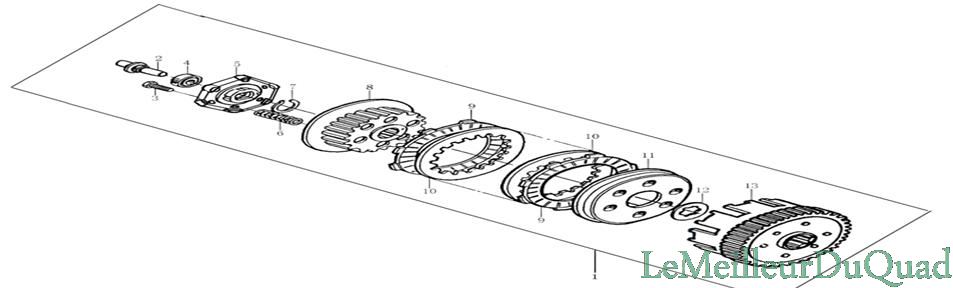

E-6 离合器 Clutch
离合器-CG250水冷倒档


    Parts name Description
S/N Part No.
1 22000-MA96-0000 CB250 clutch assembly CLUTCH COMP
2 22403-I006-0000 CB125 clutch putt PUSH ROD,CLUTCH
3 91129-I008-0000 CG125D clutch flange bolt M6 × 25 BOLT M6×25
4 92102-00000016003 Bearings (16003) BEARING (6001)
5 22121-LA12-0000 CG200-B clutch end cap combination END COVER,CLUTCH
6 22142-LA73-0000 CG200-A water-cooled clutch spring SPRING,CLUTCH
7 91403-I008-0000 CG125D clutch retaining ring 20 CIRCLIP 20
8 22105-LA73-0000 CG200-A water-cooled clutch center CENTRAL SLEEVE.,CLUTCH
9 22214-LA73-0000 CG200-A water-cooled clutches active friction plate FRICTION PLATE ASSY
10 22215-LA73-0000 CG200-A water-cooled clutch friction plate FRICTION PLATE ASSY
11 22122-LA73-0100 CG200-A water-cooled clutch pressure plate CLUTCH PRESSING PLATE
12 22002-I006-0000 CB125 clutch flower key washers SPLINE WASHER
13 22150-LA73-0100 CG200-A water-cooled clutch housing combination CLUTCH OUTER CASE COMP

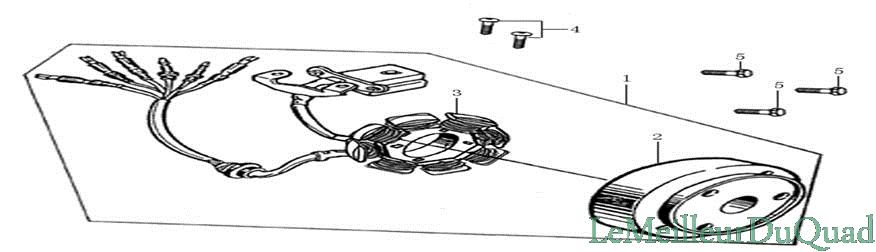

E-7 磁电机总成 Magneto Comp
磁电机CG250(水冷摩擦倒档)


    Parts name Description
S/N Part No.
1 82100-I008-0000 CG125D magnetic motor MAGNETO
2 82130-I008-0000 CG125D magneto rotor combination ROTOR ASSY,MAGNETO
3 82120-I008-0100 CG125D magneto stator combination STATOR ASSY,MAGNETO
4 B00823000500162 Screw M5 x 16 SCREW M5×16
5 B05783000500257 Bolt the M5 × 25 BOLT M5×25

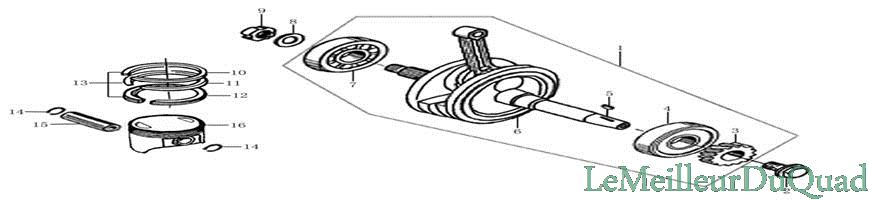

E-8 曲轴、活塞、连杆部件 Crankshaft 、 Piston、Connecting rod comp
曲轴-活塞-连杆CG250水冷摩擦


    Parts name Description
S/N Part No.
1 1320B-MA97-0000  water-cooled crankshaft connecting rod parts CRANKSHAFT CONNECTING ROD ASSY
2 91106-I008-0000 CG125D magnetic motor mounting bolts M10 × 36 BLOT M10×36
3 13222-I008-0000 CG125D crankshaft driving gear CRANKSHAFT TIMING GEAR
4 92102-0063-28-1RS Bearings (63/28-1RS) BEARING (63/28-1RS)
5 91601-I006-0000 CB125 magneto Woodruff key 25 × 14 × 4 SEMICIRCLE KEY 25×14×4
6 13220-MA97-0000  water-cooled crankshaft connecting rod combination CONNECTING ROD COMP 3
7 92102-0063-28-1P5 Bearings (63/28/1P5) BEARING(63/28/1P5)
8 22004-I006-0000 CB125 clutch dish washer DISH WASHER
9 91203-I008-0000 CG125D oil filter nut  NUT, OIL FILTER
10 13103-L067-0000 LY200 piston ring 1 PISTON RING 1
11 13104-L067-0000 LY200 piston ring 2 PISTON RING 2
12 13120-L067-0000 Oil ring combination OIL RING ASSY
13 1310A-L067-0000 LY200 piston ring assembly PISTON RING COMP
14 91401-L067-0000 LY200 piston pin circlip CLIPCLIP, PISTON PIN
15 13102-LA51-0000 SB200 piston pin PISTON PIN
16 13101-MA95-0000  piston PISTON

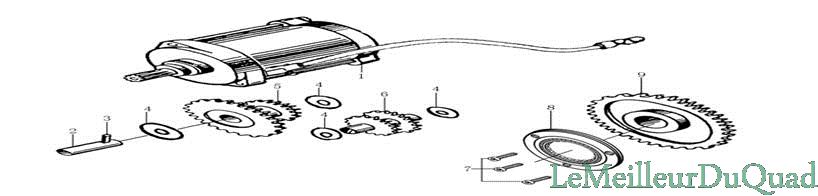

E-9电启动机构  Electric Starting Mechanism
电启动系统CG250(水冷摩擦倒


    Parts name Description
S/N Part No.
1 82200-LA73-0002 CG200-A water-cooled starter motor parts STARTING MOTOR ASSY
2 21402-I008-0000 CG125D double gear shaft GEARSHAFT,CONNECTED
3 91522-03000600000 Double gear shaft locating pin 3 × 6 LOCATING PIN 3×6
4 93301-51050518000 Washer 10.5 × 0.5 × 18 WASHER 10.5×0.5×18
5 2140A-I008-0000 CG125D double gear (a) GEAR,CONNECTED,1
6 21401-I008-0000 CG125D double gear (2) GEAR,CONNECTED,2
7 B0070010800187 Screw the M8 × 18 SCREW  M8×18
8 21300-LA73-0000 CG200-A water-cooling start clutch assembly STARTER CLUTCH COMP.
9 21422-LA73-0000 CG200-A water-cooling start gear STARTER GEAR

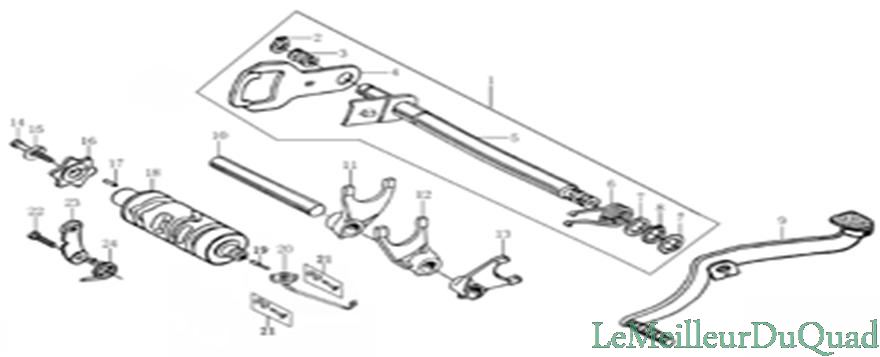

E-10 变速机构 Gearshift Mechanism
变速机构CG250倒档


    Parts name Description
S/N Part No.
1 24300-LA73-0100 CG200-A water-cooled shift arm parts ASSEMBLY,GEARSHIFT LEVER
2 B0089401120000000 Retaining ring 12 CIRCLIP 12
3 24303-I006-0000 The CB125 shift plate spring SPRING,GEARSHIFT LEVER
4 24319-I008-0000 CG125D shift plate LEVEL,GEARSHIFT
5 24301-LA73-0000 CG200-A water-cooled shift shaft combination GEARSHIFT SHAFT
6 24302-I008-0000 CG125D shift return spring RETURN SPRING,
GEARSHIFT LEVER
7 93301-51400520000 Shift arm washer 14 × 0.5 × 20 WASHER 14×0.5×20
8 B0089401140000000 Retaining ring 14 CIRCLIP 14
9 24400-I008-0016 CG125D variable speed pedal (BT-16) PEDAL,GEARSHIFT(BT-16)
10 24107-I006-0000 CB125 shift fork shaft SHAFT, FORK
11 24104-I006-0000 The CB125 Vice right axis shift fork RIGHT FORK,COUNTERSHAFT
12 24106-I006-0000 CB125 spindle Plectrum CENTER FORK, MAINSHAFT
13 24105-MZ01-0000 The layshaft friction and the protection CG250D reverse left shift fork LEFT FORK,COUNTERSHAFT
14 B05783000600257 Bolt M6 × 25 BOLT M6×25
15 B00093000600000 Elastic cushion 6 WASHER 6
16 24202-I008-0600 CG125D five-star board STOPPING PLATE
17 B0011901040100000 Pin 4 × 10 PIN  4×10
18 24213-MZ01-0000 The Friction protection CG250D reverse variable speed drum GEARSHIFT DRUM
19 88004-JZ02-0000 Friction the protection CG150D reverse file obviously moving contact CONTACT,CEARINDICATION
20 88031-JZ02-0000 Friction protect CG150D reverse file significantly harness combination CABLE ASSEMBLY,
GEAR INDICATION
21 9115B-JZ02-0000 Friction protect CG150D reverse file significantly screw combination BOLTM5×20
22 91115-I008-00000B CG125D stalls positioning plate bolts BOLTM6×20
23 2434A-I008-0100 CG125D positioning plate combination LOCATING PLATE UNIT
24 24304-I006-0000  CB125 positioning plate return spring RETURN SPRING,
LOCATING PLATE

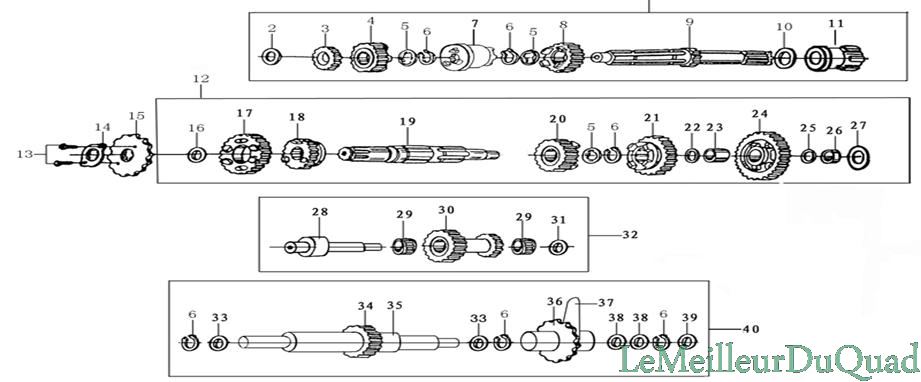

E-11传动机构 Transmission Mechanism
传动机构CG250倒档


    Parts name Description
S/N Part No.
1 23220-MZ01-0000 Friction to protect CG250D reverse spindle combination MAIN SHAFT ASSY
2 93301-E1521002500 Spindle thrust washers 15.2 × 1 × 25 THRUST WASHER
15.2×1×25
3 23222-LA73-0002 CG200-A water-cooled spindle gear MAINSHAFT 2ND SPEED GEAR
4 23222-MZ01-0000 Friction and protect the  electric reverse gear spindle 4 speed gear MAINSHAFT 4ND SPEED GEAR
5 23223-I006-0000 CB125 gear spacer SPACER WASHER
17.3(20)×1.6×26
6 91402-D002-0100 17.3 (20) × 1.6 × 26 CIRCLIP
18.5×1.2×φ22.1
7 23229-MZ01-0000 70 start shaft retaining ring

φ18.5 × 1.2 × φ22.1 		 REVERSE GEAR,
COUNTERSHAFT
8 23222-LA73-0003 Friction to protect CG250D reverse spindle slider MAINSHAFT 3TH SPEED GEAR
9 23221-LA73-0000 CG200-A water-cooled spindle gear PIVOT, MAINSHAFT
10 93301-62020527000 CG200-A water-cooled spindle mandrel THRUST WASHER
20×0.5×27
11 23231-JZ02-0000 CB125 spindle thrust washers ASSEMBLY, STARTING GEAR
12 23240-MZ01-0000  20.2 × 0.5 × 27 " ASSEMBLY, COUNTERSHAFT
13 B0578300060010700 The friction protect CG150D reverse starter gear combinations BOLT M6×10
14 23402-I006-0000 The layshaft combination of the friction the protection CG250D reverse FIXING PLATE, DRIVE SPROCKET
15 23401-I008-0008 Bolt M6 × 10 DRIVE SPROCKET
16 93301-61521030000 CB125 initiative sprocket fixing plate THRUST WASHER 20×1×27
17 23242-LA73-0002 CG125D initiative sprocket (428.15) COUNTERSHAFT
2ND SPEED GEAR
18 23242-MZ01-0004 CB125 layshaft thrust washer 15.2 × 1 × 30 4ND SPEED GEAR
19 23241-MZ01-0000 CG200-A water-cooled, vice-axis gear PIVOT, COUNTERSHAFT
20 23243-MZ01-0000 Friction the protection CG250D reverse gear layshaft gear REVERSE GEAR,
COUNTERSHAFT
E-11传动机构 Transmission Mechanism
传动机构CG250倒档


    Parts name Description
S/N Part No.
21 23242-MZ01-0003 Friction the protection CG250D reverse gear layshaft gear COUNTERSHAFT
3RD SPEED GEAR
22 93301-E1650524000 Thrust washers THRUST WASHER
15×1×30
23 23203-I006-0001 CB125 Vice shaft gear bushing COUNTERSHAFT
4TH SPEED GEAR
24 23242-LA73-0001 CG200-A water-cooled, vice-axis gear SPACER WASHER
25 93301-61650524000 CG125D layshaft thrust washer 16.5 × 0.5 × 24 BUSH,COUNTERSHAFT
1ST SPEED GEAR
26 23247-JZ02-0000 Friction the protection CG150D reverse countershaft gear sleeve COUNTERSHAFT
1ST SPEED GEAR
27 93301-61521030000 CB125 layshaft thrust washer 15.2 × 1 × 30 BUSH, STARTING GEAR, COUNTERSHAFT
28 23608-JZ02-0000 Friction protection CG150D reverse double gear shaft SHAFT,REDUCTION GEAR
29 92102-000HK121810 Needle bearing (HK121810,) NEEDLE  BEARING
30 23607-MZ01-0000 Friction and protect the  electric reverse double gear GEAR,REOULTION
31 93301-61201018000 Double-toothed washer 12 × 1 × 18 SHAFT,REDUCTION O-PING
32 2360B-MZ01-0000 Double axis of combination of friction protection CG250D reverse GEAR,REOULTION ASSEMBLY
33 23223-I008-0000 CG125D gear spacer THRUST WASHER
34 23604-MZ01-0000 The friction the protection CG250D reverse idler IDLE GEAR CONP
35 23602-JZ02-0000 Friction protection CG150D reverse idler IDLE GEAR CONP STARTEAR
36 23236-MZ01-0000 Friction to protect CG250D reverse friction gear COUNTERSHAFT 1ST SPEED
37 23245-JZ02-0000 The friction protect CG150D reverse the lock plate LOCK UP PLY
38 93301-52020527000 Thrust washers 20.2 × 0.5 × 27 THRUST WASHER
20.2×0.5×27
39 93301-61201018000 Friction the protection CG150D reverse double axis washer12 × 1 × 18 WASHER
40 23601-MZ01-0000 The friction the protection CG250D reverse idler combination ASSEMBLY IDLE GEAR CONP

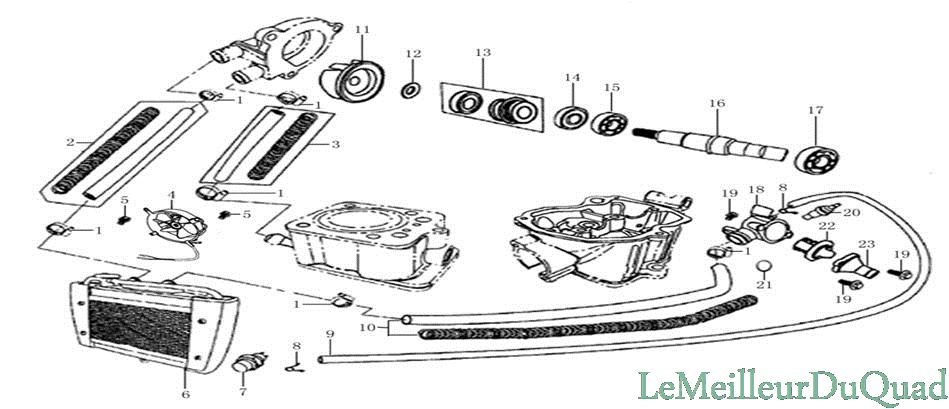

E-12水冷系统   Water Cooling System
水冷却部件CG250(水冷摩擦倒


    Parts name Description
S/N Part No.
1 19520-IA20-0000 SB125 water pipe clamp components WATER PIPE COLLAR CLAMP ASSY
2 19225-IA20-0006 SB125 spring water pipes(13 × 20 × 420 with spring) TUBE  (13×20×420)
3 19225-IA20-0002 SB125 spring water pipes(13 × 20 × 185 with spring) TUBE  (13×20×185)
4 1910B-LA51-0000 SB200 cooling fan components COOLING FAN ASSY
5 B166740A0600207 Small cap bolt M6 × 20 BOLT M6×20
6 19200-IA20-0000 The SB125 water-cooled WATER COOLER
7 1925A-IA20-0000 SB125 thermal switch SWITCH THERMISTOR
8 91404-IA20-0000 SB125 pipes retainer CLIP , WATER PIPE
9 19207-IA20-0002 SB125 water cooler small cycles the inlet(3.5 × 7.5 × 600) SMALL CIRCULATING FEEDING PIPE
10 19225-IA20-0008 SB125 pump outlet(13 × 20 × 590) with a spring TUBE  (13×20×590)
11 19002-IA20-0000 SB125 pump impeller VANE WHEEL WATER PUMP
12 19003-IA20-0000 SB125 pump liner GASKET,
VANE WHEEL WATER PUMP
13 1901B-IA20-0000 SB125 mechanical seal combination MECHANISM SEAL ASSY
14 90326-I024-0000 CH125 pump shaft oil seal12 × 20 × 5 (AEM material) OIL SEAL 20×12×5
15 92102-00000006901 Bearings (6901) BEARING (6901)
16 19004-IA20-0000 SB125 pump shaft SHAFT , WATER PUMP
17 92102-00000006000 Bearings (6000) BEARING (6000)
18 1921B-IA20-0000 SB125 thermostat housing combination CASE , THERMOSTAT
19 B166740A0600167 Small cap bolt M6 × 16 BOLT M6×16
20 19206-I024-0000 CH125 water temperature sensor SENSER,WATER COOLER
21 90101-30148000190 O-ring 14.8 x 1.9 O-RING 14.8×1.9
22 1924B-I024-0000 CH125 cooled thermostat combination THERMOSTAT ASSY,COOLING
23 19220-IA20-0000 SB125 thermostat cover (8802) THERMOSTAT COVER
E-13 化油器 Carburetor


    Parts name Description
S/N Part No.
1 17100-MA97-0000 Carburetor assembly CARBURETOR ASSY

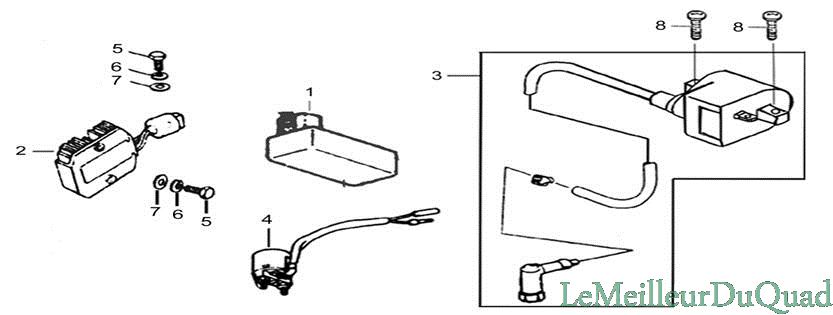

E-14 电器 Electric Elements
E-14 电器


    Parts name Description
S/N Part No.
2 31600/161MJ Voltage Regulator (Rectifier) VOLTAGE REGULATOR
1 34400/163ML-2 Ignition controller (ignition) IGNITION CONTROLLER
3 34500/161MJ Ignition coils (ignition coil) IGNITION COIL
4 34600/161MJ Starter relay STARTER RELAY
5 GB/T5783-2000 Bolt M6, × 20 BOLT M6×20
6 GB/T93-1987 Spring washer 6 SPRING WASHER 6
7 GB/T97.2-1985 Washer 6 WASHER 6
8 GB/T818-2000 Screw M6, × 25 BOLT M6×25

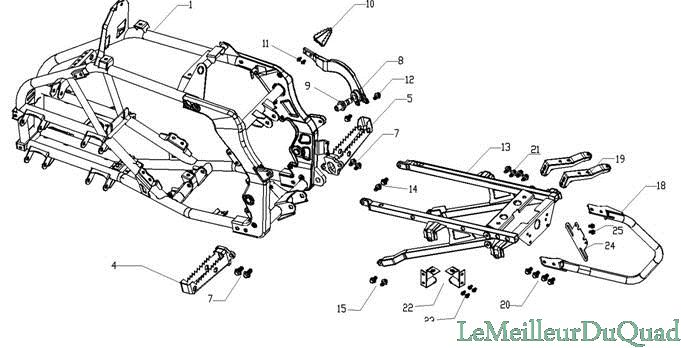

E-15 车架系统 Frame
0123


    Parts name Description
S/N Part No.
1 203E-5-CJ-01   FRAME (FRONT)
4 203E-5-JT-01 The left pedal FOOTREST(LEFT)
5 203E-5-JT-02 Right pedal FOOTREST(RIGHT)
7 GB/T 16674. -1996 Flange bolts M8 * pins P1.25 * 20 BOLT M8*P1.25*20
8 203E-5-WG-18 Brake rod BRAKE CONNECTING ROD
9 203E-5-WG-20 Brake rod axis AXLE,BRAKE CONNECTING ROD
10 203E-5-WG-19 Brake rod head HEAD,BRAKE CONNECTING ROD
11 GB/T 16674. -1996 Flange bolts M6 * the P1.0 * 25 BOLT M6*P1.0*25
12 GB/T 16674. -1997 Flange bolts M8 * pins P1.25 * 20 BOLT M8*P1.25*20
13 203E-5-CJ-03 Tailstock of the main frame
14 GB/T 16674. -1996 Flange bolts M8 * pins P1.25 * 35 BOLT M8*P1.25*35
15 GB/T 16674. -1996 Flange bolts M8 * pins P1.25 * 25 BOLT M8*P1.25*25
18 203E-5-CJ-04 The rear wing REAR WING
19 203E-5-CJ-05 Plastic parts after the holder FIXED BASE,PLASTIC COVER
20 GB/T 97.1-2002 Flat pad D8.5 * D22 * 1.6 WASHER D8.5*D22*1.6
21 GB/T 16674. -1996 Flange bolts M8 * pins P1.25 * 20 BOLT M8*P1.25*20
22 203E-5-CJ-11 After steering the light bracket (about) HOLDER,REAR TURNING LIGHT(L+R)
23 GB/T 16674. -1996 Flange bolts M6 * the P1.0 * 16 BOLT M6*P1.0*16
24 GB/T 6787.1-2002 Flange nuts M6 * the P1.0 BOLT M6*P1.0
25 203E-5-CJ-12 License bracket HOLDER,LICENSE PLATE

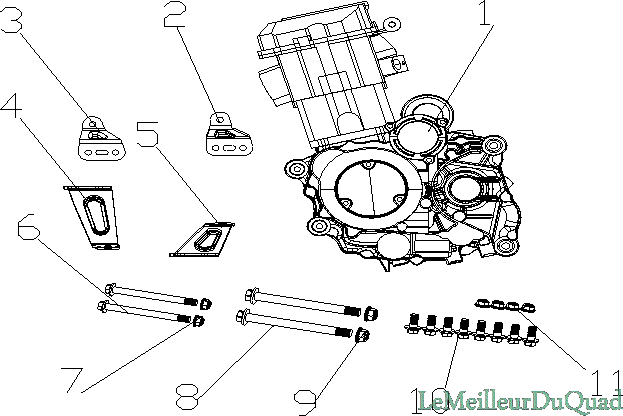

E-16 发动机吊装 Installation of Engine


    Parts name Description
S/N Part No.
1 203E-5- FDJ-SYT 250cc engine 250CC ENGINE
2 203E-5-CJ-06 On the right brackets after the engine FIXED PLATE,REAR,RIGHT
3 203E-5-CJ-07 Engine on the left tab FIXED PLATE,REAR,LEFT
4 203E-5-CJ-08 Engine front right brackets FIXED PLATE,FRONT,RIGHT
5 203E-5-CJ-09 Engine front right brackets FIXED PLATE,FRONT,LEFT
6 GB/T  16674. -1996 Flange bolts, pins P1.25 * 90, M8 * BOLT M8*P1.25*90
7 GB/T  6787.1-2002 Flange self-locking nut M8 * pins P1.25 LOCKNUT M8*P1.25
8 GB/T  16674. -1996 Flange bolts M10 * pins P1.25 * 110 BOLT M10*P1.25*110
9 GB/T  6787.1-2002 Flange self-locking nut M10 * pins P1.25 LOCKNUT  M10*P1.25
10 GB/T  16674. -1996 Flange bolts M8 * pins P1.25 * 20 BOLT M8*P1.25*20
11 GB/T  6787.1-2003 Flange self-locking nut M8 * pins P1.25 LOCKNUT M8*P1.25

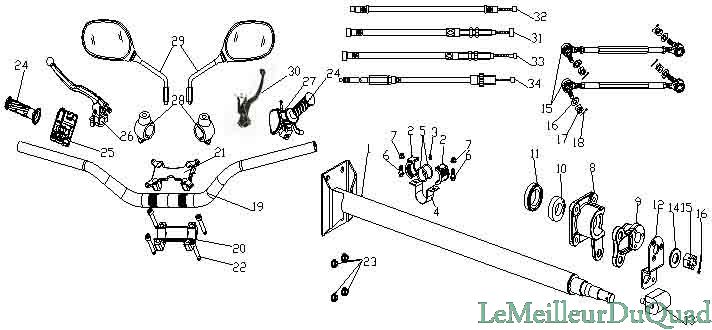

E-17 转向系统 Steering System


    Parts name Description
S/N Part No.
1 203E-5- FXZ -01 Steering column STEERING COLUMN
2 203E-5- FXZ -02 Steering column clamp deck CLIP,STEERING COLUMN
3 JB/T 7940.1-1995 Grease fittings NIPPLE
4 203E-5- FXZ -03 Direction column package hoop HOOP,STEERING COLUMN
5 GB/T3452.1-2005 O-ring O-WASHER
6 GB/T 16674. -1996 Flange bolts M8 * pins P1.25 * 20 BOLT M8*P1.25*20
7 GB/T 6787.1-2002 Flange self-locking nut M8 * pins P1.25 LOCKNUT M8*P1.25
8 203E-5- FXZ -04 Direction column base BASE,STEERING COLUMN
9 203E-5- FXZ -05 Steering column fork SHIFTING FORK,
STEERING COLUMN
10 GB/T  276-1994 Deep groove ball bearing 61904 BEARING 61904
11 203E-5- FXZ -06 Steering column lock nut LOCKNUT,STEERING COLUMN
12 203E-5- FXZ -07 Leading lock fixed piece FIXED PLATE,
13 203E-5-WG-01 Leading lock LOCK
14 GB/T68-2000 Slotted countersunk head screws M6 * 12 SCREW M6*12
15 203E-5-WX-01 Steering tie rod TIE ROD
16 GB/T 97.1-2002 Flat pad ˘ 15 ˘ 30 * T3 WASHER ￠15*￠30*T3
17 GB/T 6181-1986 Hexagon slotted nuts M14 BOLT  M14
18 GB/T 91-2000 Cotter pin 3.2 * 26 COTTER PIN 3.2*26
19 203E-5- FXZ -08 Handle tube HANDLE BAR
20 203E-5- FXZ -09 Handle tube under the folder CLAMP DOWN,HANDLE BAR
21 203E-5- FXZ -10 Handle tube on the folder CLAMP UPPER,HANDLE BAR
22 GB/T 70.1-2000 Hexagon socket head bolts M8 * pins P1.25 * 50 BOLT M8*P1.25*50
23 GB/T 6787.1-2002 Flange self-locking nut M8 * pins P1.25 LOCKNUT M8*P1.25
24 203E-5-WG-04 Hand sets GRIP
25 203E-5-WG-03 Handlebar switch holder HOLDER,HANDLE SWITCH
26 203E-5-WG-05 Clutch to CLUTCH LEVER
27 203E-5-WG-02 Oiler THROTTLE LEVER
28 203E-5-WG-10 Rearview Mirror Block REARVIEW MIRROR HOLDER
29 203E-5-WG-11 Rearview mirror REARVIEW MIRROR
30 203E-5-WX-15-04 Parking brake parking lever
31 203E-5-WG-06 Throttle cable THROTTLE CABLE
32 203E-5-WG-07 Clutch line CLUTCH CABLE
33 203E-5-WG-08 Parking line BRAKE CABLE
34 203E-5-WG-09 Throttle line CHOKE CABLE

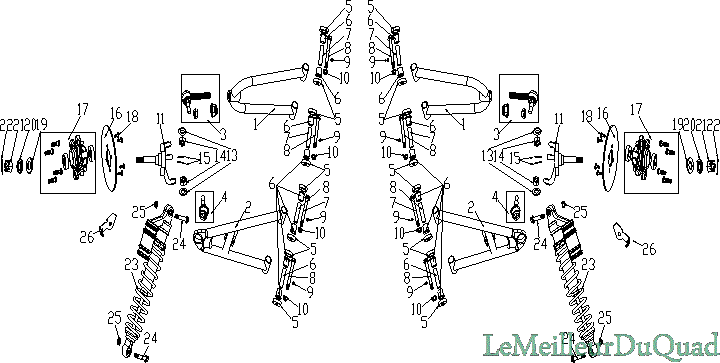

E-18 前悬挂系统 Front Suspension System


    Parts name Description
S/N Part No.
1 203E-5-YB-01 On arm SWING ARM UPPER
2 203E-5-YB-03 Under the arm SWING ARM DOWN
3 203E-5-YB-02 On the arm ball head assembly STEERING SWIVEL BALL UPPER
4 203E-5-YB-04 Arm ball assembly STEERING SWIVEL BALL DOWN
5 203E-5-YB-07 Arm dust cover DUST-PROOF COVER,SWING ARM
6 203E-5-YB-05 Arm nylon sleeve NYLON COLLAR,SWING ARM
7 203E-5-YB-06 Arm lined pipe NYLON TUBE,SWING ARM
8 GB/T 16674. -1996 Flange bolts M10 * pins P1.25 * 78 BOLT M10*P1.25*78
9 203E-5-ZX-03 Grease fittings(Material: brass, M6 * 1.0 * 6 threads) NIPPLE
10 GB/T 6787.1-2002 Flange self-locking nut M10 * pins P1.25 LOCKNUT M10*P1.25
11 203E-5-WX-03 Left steering knuckle STEERING KNUCKLE (LEFT)
12 203E-5-WX-04 Right steering knuckle STEERING KNUCKLE (RIGHT)
13 GB/T 97.1-2002 Flat pad ˘ * ˘ 20 * the T2 WASHER ￠11*￠20*T2
14 GB/T 6181-1986 Hexagon slotted nuts M10 BOLT M10
15 GB/T 91-2000 Cotter pin 2.5 * 20 COTTER PIN 2.5*20
16 203E-5-WX-06 Front disc brakes ˘ 160 * 2 FRONT BRAKE DISK ￠160*2
17 203E-5-WX-05 Front flange assembly FRONT FRANGE COMP.
18 GB/T818-2000 Hexagon screws M6 * the P1.0 * 16 SCREW M6*P1.0*16
19 GB/T 97.1-2002 Flat pad ˘ 15 ˘ 30 * T3 WASHER ￠15*￠30*T3
20   Shoots the washer M14 WASHER M14
21 GB/T 6181-1986 Hexagon slotted nuts M12 * 1.5 * 14.1 BOLT M12*1.5*14.1
22 GB/T 91-2000 Opening pin ˘ 3.2 * 26 COTTER PIN  ￠3.2*26
23 203E-5-WX-07 Before the shock absorption center distance: 380mm FRONT SHOCK ABSORBER
24 GB/T 16674. -1996 Flange bolts M10 * pins P1.25 * 45 BOLT M10*P1.25*45
25 GB/T 6787.1-2002 Flange self-locking nut M10 * pins P1.25 LOCKNUT M10*P1.25
26 203E-5-WG-28 Front turn lamp bracket (or so) HOLDER,FRONT TURNING LIGHT

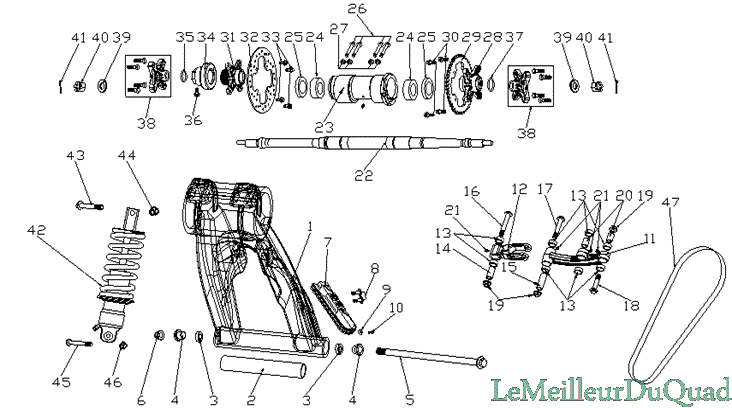

E-19 后悬挂系统 Rear Suspension System
未命名


    Parts name Description
S/N Part No.
1 203E-5-HPC-01   SWING ARM REAR
2 203E-5-HPC-02 After the fork liner TUBE INNER,SWING ARM REAR
3 203E-5-HPC-03 After fork outside liner TUBE OUTER,SWING ARM REAR
4 203E-5-HQ-04 Deep groove ball bearings BEARING
5 GB/T 16674. -1996 Flange bolts M14 * Pin P1.5 is * 290 BOLT  M14*P1.5*290
6 GB/T 6787.1-2002 The flanges self-locking nut M14 of Beta corolliflora * Pin P1.5 is LOCKNUT M14*P1.5
7 203E-5-HPC-04 Chain protection cover PROTECTIVE CASING
8 GB/T818-2000 Cross a large flat head M6 * the P1.0 * 16
9 GB/T 97.1-2002 Flat pad ˘ 6.5 * ˘ 12 * 1 WASHER ￠6.5*￠12*1
10 GB/T 819.2-1997 Cross recessed countersunk head screw M6 * 1.0 * 10
11 203E-5-HPC-08 A connecting rod CONNECTING ROD A
12 203E-5-HPC-11 B rod CONNECTING ROD B
13 GB/T 290-1998 Drawn Cup Needle Roller Bearing HK1812 BEARING HK1812
14 203E-5-HPC-12 B rod liner TUBE,CONNECTING ROD B
15 203E-5-HPC-09 A connecting rod length of liner LONG TUBE,CONNECTING ROD A
16 GB/T 16674. -1996 Flange bolts M12 * pins P1.25 * 90 BOLT M12*P1.25*90
17 GB/T 16674. -1996 Flange bolts M12 * pins P1.25 * 80 BOLT M12*P1.25*80
18 GB/T 16674. -1996 Flange bolts M12 * pins P1.25 * 65 BOLT M12*P1.25*65
19 GB/T 6787.1-2002 Flange lock nuts M12 * pins P1.25 * 65 LOCKNUT M12*P1.25*65
20 203E-5-HPC-10 A connecting rod short liner SHORT TUBE,CONNECTING ROD A
21 203E-5-ZX-03 Butter mouth M6 NIPPLE
22 203E-5-HPC-13 Rear axle 825 (925) REAR AXLE
23 203E-5-HPC-14 Aluminum eccentric REAR AXLE HOUSING
24 GB/T 297-1994 Single row tapered roller bearings 32008 TAPER ROLLER BEARING
25   Oil seal OIL SEAL
E-20 后悬挂系统 Rear Suspension System
未命名


    Parts name Description
S/N Part No.
26 GB/T 16674. -1996 Flange bolts M8 * pins P1.25 * 65 BOLT M8*P1.25*65
27 GB/T 6787.1-2002 Flange self-locking nut M8 * pins P1.25 LOCKNUT M8*P1.25
28 203E-5-HPC-15 Sprocket holder HOLDER,SPROCKET WHEEL
29 203E-5-WX-07 Sprocket plate DISK,SPROCKET WHEEL
30 GB/T 16674. -1996 Flange bolts M8 * pins P1.25 * 20 BOLT M8*P1.25*20
31 203E-5-HPC-17 Brake disc holder HOLDER,BRAKE DISK
32 203E-5-WX-08 After the brakes ˘ 220 * 4 REAR BRAKE DISK ￠220*4
33 GB/T 16674. -1996 Within the hexagonal recessed countersunk head screw M8 * pins P1.25 * 15 SCREW  M8*P1.25*15
34 203E-5-HPC-19 Locking block LOCK BLOCK
35 203E-5-HPC-18 Axis wire snap rings (small)GB / T 895.2-1996 RETAINER RING(SMALL)
36 GB/T 16674. -1996 Flange bolts M6 * the P1.0 * 30 BOLT M6*P1.0*30
37 203E-5-HPC-16 Axis wire snap rings (large)GB / T 895.2-1996 RETAINER RING(BIG)
38 203E-5-WX-09 Rear wheel connection seat assembly FRANGE FOR REAR AXLE
39 GB/T 97.1-2002 Washer ˘ 15 * ˘ 30 * T3 WASHER ￠15*￠30*T3
40 GB/T 6181-1986 Hexagon slotted nuts and M14 of Beta corolliflora * 1.5 * 14.1 BOLT M14*1.5*14.1
41  GB/T 91-2000 Cotter pin 3.2 * 26 COTTER PIN 3.2*26
42 203E-5-WX-10 After the shock absorber REAR SHOCK ABSORBER
43 GB/T 16674. -1996 Flange bolt M12 * 55 pins P1.25 * BOLT M12*P1.25*55
44 GB/T 6787.1-2002 Flange self-locking nut M12 * pins P1.25 LOCKNUT M12*P1.25
45 GB/T 16674. -1996 Flange bolts M10 * pins P1.25 * 60 BOLT M10*P1.25*60
46 GB/T 6787.1-2002 Flange self-locking nut M10 * pins P1.25 LOCKNUT M10*P1.25
47 GB/T 1243-1997 Chain 428, 122 CHAIN 428#

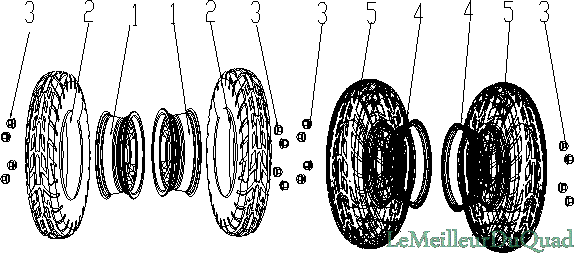

E-21 轮胎 Tyre


    Parts name Description
S/N Part No.
1 203E-5-WG-12 Front-wheel aluminum rim (so) 10-inch FRONT RIM(L+R) 12
2 203E-5-WG-13 Front tires 235/30-12 FRONT TYRE 235/30-12
3 GB/T802-1988 Cap nut BOLT
4 203E-5-WG-14 Rear aluminum wheels (left and right) 12-inch REAR RIM(L+R) 12
5 203E-5-WG-15 After the tire assembly 235/30-12 REAR TYRE 235/30-12

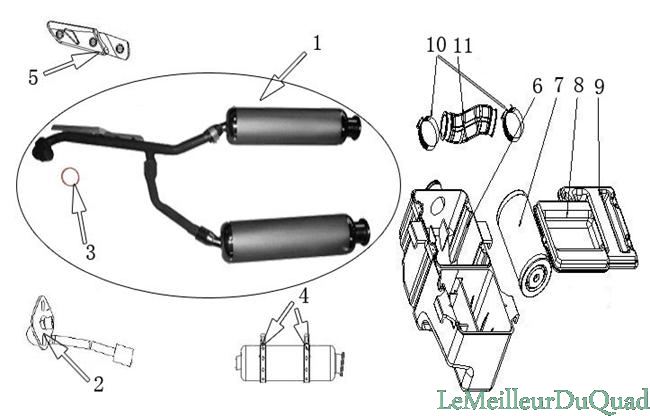

E-22 环保系统


    Parts name Description
S/N Part No.
1 203E-5-WX-14 Drum impedance compound muffler assembly MUFFLER ASSY
2 203E-5-WX-14-07 Exhaust pipe lock piece LOCKING PALTE,MUFFLER
3 203E-5-WX-14-04 Asbestos gasket ASBESTOS WASHER
4 203E-5-WX-14-05 Hoop HOOP
5 203E-5-WX-14-01 Exhaust pipe of the anti-hot film scald-guard
6 203E-5-WX-12-01 Air filter bottom shell BOTTOM CASE,AIR FILTER
7 203E-5-WX-12-04 Air filters, filter FILTER ELEMENT
8 203E-5-WX-12-03 Electrical box cover CAP,ELECTRIC BOX
9 203E-5-WX-12-02 Air Filter Cover AIR FILTER CAP
10   Hoop plated white zinc 35-51 HOOP
11 203E-5-WX-11 Air filter hose TUBE,AIR FILTER

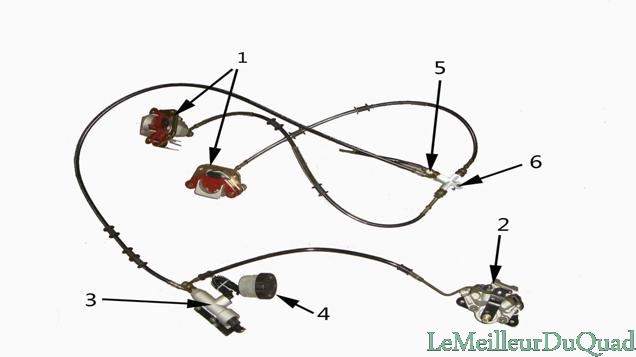

E-23 驻车系统


    Parts name Description
S/N Part No.
1 203E-5-WX-15-01 Front left disc clamp assembly BRANCH PUMP FOR FRONT BRAKE(L)
2 203E-5-WX-15-10 Disc brakes clamp assembly rear break branch pump
3 203E-5-WX-15-06 Foot brake pump assembly. brake cylinder
4 203E-5-WX-15-08 Oil cup assembly FUEL CUP
5 203E-5-WX-15-04 Brake sensor head brake sensor
6 203E-5-WX-15-05 Three links brakes connecter
E-24 灯具类


    Parts name Description
S/N Part No.
1 203E-5-DQ-13 Meter SPEED METER
2 203E-5-DQ-12 Instrument pouches (sponge)
3 203E-5-DQ-14 Meter rubber ferrule
4 GB/T818-2000 Cross a large flat head M6 * the P1.0 * 16
5 203E-5-WG-31 Speaker HORN
6 GB/T 16674. -1996 Flange bolts M6 * the P1.0 * 16 BOLT M6*P1.0*16
7 203E-5-WG-30 Buzzer BLINK RELAY
8 203E-5-WG-28-1 Front turn signals TURNING LIGHT (FRONT)
9 203E-5-WG-28-2 After the turn signal TURNING LIGHT (REAR)
10 203E-5-WG-29 After the taillights TAILLIGHT
11 203E-5-WG-22 Tank TANK
12 203E-5-WG-22-01 Fuel tank lock cap TANK CAP
13 GB/T 16674. -1996 Flange bolts M6 * the P1.0 * 20 BOLT M6*P1.0*20
14 GB/T 97.1-2002 Flat pad D6.5 * D18, * 1 WASHER D6.5*D18*1
15 GB/T 6787.1-2002 Flange self-lock nut M6 * P1, LOCKNUT M6*P1
16 203E-5-WG-33 Battery 12V, 12AH BATTERY 12V,12AH

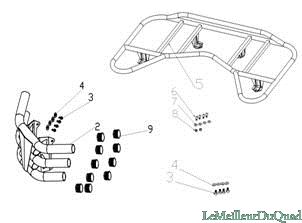

E-25 前后保护架及电缆
01234


    Parts name Description
S/N Part No.
1 203E-5-WG-23 Main cable MAIN CABLE
2 203E-5-HJ-01 Front bumper FRONT BUMPER
3 GB/T 16674. -1996 Flange screw M8 * pins P1.25 * 20 SRCEW M8*P1.25*20
4 GB/T 97.1-2002 Flat pad D8.5 * D22X1.5 WASHER D8.5*D22X1.5
5   After the shelf REAR CARRIER
6 GB/T 16674. -1996 Flange bolts M6 * the P1.0 * 25 BOLT M6*P1.0*25
7 GB/T 97.1-2002 Flat pad D6.5 * D18, * 1 WASHER D6.5*D18*1
8 GB/T 6787.1-2002 Flange self-lock nut M6 * P1, LOCKNUT M6*P1
9 203E-5—JT-02 Feet net FOOT STEP(METAL WITH STRAP)

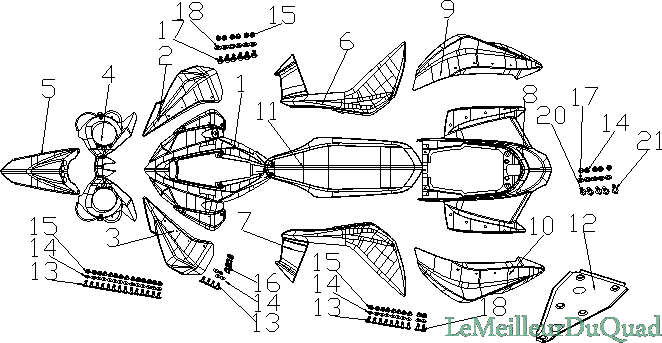

E-26 塑件


    Parts name Description
S/N Part No.
1 203E-5-SJ-001 Kawasaki plastic parts precursors FRONT BODY
2 203E-5-SJ-002 Kawasaki plastic parts of the former right-wing FRONT RIGHT WING
3 203E-5-SJ-003 Kawasaki plastic parts of the former left-wing FRONT LEFT WING
4 203E-5-SJ-004 Kawasaki Plastic lamp cover LAMPSHADE
4,1 203E-5-SJ-004.1 Before lighting (1 set) LAMP(1SET)
4,2 203E-5-SJ-004.2 First lamp fixed piece left LEFT FIXED PLATE,LAMP
4,3 203E-5-SJ-004.3 Fixed piece right before lighting RIGHT FIXED PLATE,LAMP
5 203E-5-SJ-005 Kawasaki plastic parts hood
6 203E-5-SJ-006 Kawasaki, plastic parts right guard FENDER,RIGHT
7 203E-5-SJ-007 Kawasaki plastic pieces left guard FENDER,LEFT
8 203E-5-SJ-008 Kawasaki plastic parts after the body REAR BODY
9 203E-5-SJ-009 Kawasaki plastic parts after right-wing REAR RIGHT WING
10 203E-5-SJ-010 Kawasaki plastic parts after left-wing REAR LEFT WING
11 203E-5-SJ-011 Cushion SEAT
12 203E-5-SJ-012 Engine protection plate ENGINE FENDER
13 GB/T70.2-2000 Hexagon large flat head M6 * the P1.0 * 20
14   Plastic spacers WASHER
15 GB/T 6787.1-2002 Flange self-lock nut M6 * P1, BOLT M6*P1
16   Nut card M6 * 1
17 GB/T 16674. -1996 Flange bolts M6 * the P1.0 * 16 BOLT M6*P1.0*16
18 GB/T 97.1-2002 Flat pad D18, * D6.5 * 1 WASHER D18*D6.5*1
19 GB/T70.2-2000 Flange bolts M6 * the P1.0 * 25 BOLT M6*P1.0*25
20 GB/T 16674. -1996 Flange bolts M6 * the P1.0 * 20 BOLT M6*P1.0*20
21 GB/T 16674. -1996 Flange bolts M6 * the P1.0 * 25 BOLT M6*P1.0*25
