   LINGYING VEHICLE CO.,LTD
                                                                                          Add:Shihou Industrial Area,Yongkang City,Zhejiang Province,China,321306
MAD MAX  LYDA203E-9(luxury version)
Parts Service Manual
1 PLEASE CHOOSE THE BELOW INFORMATION OF YOUR ATV
2 PLEASE WRITE DOWN THE QUANTITY YOU WANT IN COLUMN "ORDER"
3 PLEASE WRITE DOWN IN COLUMN "REMARK" WHEN YOU THINK IT IS NECESSARY TO INFORM
4 PLEASE DON'TMAKE ANY CHANGE TO THE ORIGINAL INFORMATION IN THIS SHEET
5 PLEASE ALWAYS USE THIS SHEET TO ORDER PARTS AND SEND BACK TO US BY EMAIL
    Handlebar Component

      Description
S/N Part No.  Size Req.Quantity
1 2804-10010100A  [1] handle pipe Side length 805mm 1
2 2801-19010100A   steering handle Aluminum 1
3 2801-21010100A   rear view mirror place Aluminum 2
4 2801-21030100A  [2] rear view mirror  E4-00085 97/24/EC 1
5 2801-18010100A   gasoline throttle   Vehicles with warning lights switch 1
6 2801-27010100A   handle bar cap Rubber 2
7 2801-10020100A   clutch bar Aluminum 1
8 2801-21020100A  [3] left rear view mirror E4-00085 97/24/EC 1
9 2801-16110100A   Combination switch    1
10 2808-17030100B   Throttle cable Length 1150mm stroke 75 mm 1
11 2808-17040100B   clutch cable 130mm length 1140mm stroke 1
12 2808-17010100B   oil cable Length 1170mm stroke 75mm 1
13 2810-17020100B   handle brake line Length 1925mm stroke 75 mm 1
14 2804-28010100A  [4] Instrument  EGL special instrument 1
15 2801-27030201A   rubber washer ￠6 Black rubber mat 4
16 A05-2009-M06L016g   screws M6*16 M6 * 16 8.8 4
17 2804-28010302A   instrument rubber cover   1
18 2804-28010301A   instrument sponge cover   1
19 2804-28010303A   Instrument cover
   1
Steering Column Component

      Description
S/N Part No.  Size Req.Quantity
1 2808-10040100B   STEERING COLUMN  Welded pipe length ¢ 32 * 575 1
2 2804-10030201A  [5] the under block of handle pipe   Aluminum 1
3 2804-10030101A  [6] the up block of handle pipe   Aluminum 1
4 A04-M08L050g   Bolt M8*P1.25*50  M8 * P1.25 * 50 8.8 级 4
5 A23-D032L3d5   O-ring Diameter ¢ 32 ¢ 3.5 2
6 2804-10050101A   steering column clamping block  White reinforced nylon 2
7 2804-10050201A   steering column hoop Stamping 1
8 A02-M08L016g   Bolt M8*P1.25*16 M8 * P1.25 * 16 8.8 级 2
9 A22-D044L008   oil seal ¢ 44 * ¢ 25 * T8 1
10 2801-10050601A   steering column locknut Lathe 1
11 A24-00006904   bearing 6904   Specifications: 6904 1
12 2801-10050301A   steering column foundation Steel Castings 1
13 2801-10050401A   steering column fork Steel Castings 1
14 2801-10050701A   steering lock fixing plate Stamping 1
15 A03-M006L12c   screw M6*12  M6 * 12 GB/T818-2000 2
Steering Column Component

      Description
S/N Part No.  Size Req.Quantity
16 2801-16070100A   steering lock   Two locks: power door locks, lock direction 1
17 A14-00000015   spring washer ¢ 14.8 * ¢ 27.5 * T2 1
18 A07-M0000014   Nut M14*1.5*14.1 M14 * 1.5 * 14 bottom thickness 9mm 1
19 A19-D03dL040   split pin ￠3*40  ¢ 3 * 40 OD 1
20 2804-10060101A   turning ball (left thread)M12 M12 left hand thread, color zinc plated 2
21 A08-M0000012L   Hexagon nut M12L (left thread) M12 left nut, color zinc plated 2
22 2804-10060102A   stearing rod 350mm Color zinc plated 2
23 A08-M0000012   Hexagon nut M12L (right thread) M12 D-nut, color zinc plated 2
24 2804-10060103A   turning ball (right thread) M12 right hand thread, color zinc plated 2
25 2804-10060104A   Dustproof rubber cover Black oil resistant rubber 4
26 2804-10060105A   round steel wire Table color zinc plated diameter Ø1 4
27 A14-00000010   spring washer ¢ 10 surface dark green 4
28 A07-M0000010   Nut M10 M10 OD surface 4
29 A19-D2d5L025   split pin ¢ 2.5 * 25 surface dark green 4
30 2808-10050201B   steering cloumn line plate  Aluminum 1
31 A05-M06L016g   screw M6*12 M6*16 M6 * 16 Army Green 8.8 2

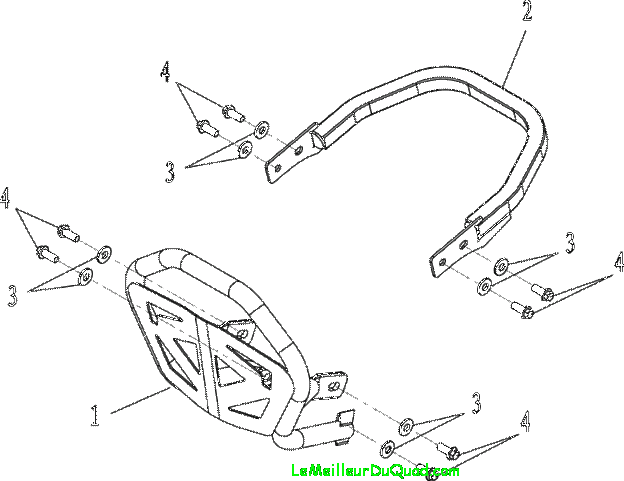

Front Bumper and Back Armrest Parts

      Description
S/N Part No.  Size Req.Quantity
1 2808-22010100B   FRONT BUMPER Pieces of aluminum 1
2 2808-22030100B   back armrest Steel weldments 1
3 A12-00000008   flat washer ￠8.5*￠16*T1.5 ¢ 8.5 * ¢ 16 * T1.5 8
4 A02-M08L016g   nut M8*P1.25*16 M8 * P1.25 * 16 OD 8.8 8

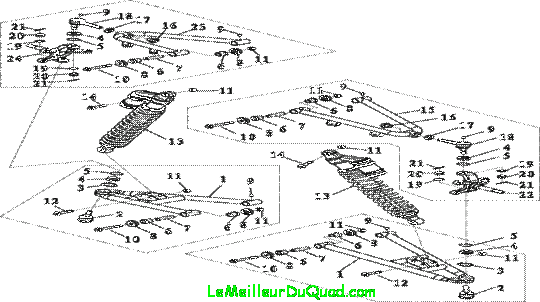

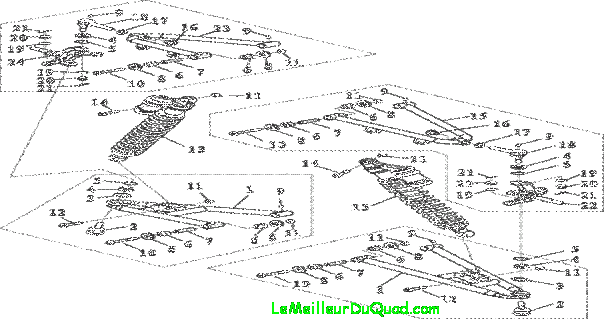

front suspension arm parts

      Description
S/N Part No.  Size Req.Quantity
1 2804-08020100A  [7] SWING ARM UPPER Weldment 2
2 2801-08020201A   low suspension arm ball Color zinc plated 2
3 A17-00000030   A-external circlips Dimension ¢ 29 * 1 GB/T895.2 2
4 2804-10060104A   dustproof cover Black oil resistant rubber 4
5 2804-10060105A   round steel wire Color zinc plated diameter Ø1 4
6 2801-08030201A   suspension arm nylon cap White reinforced nylon 16
7 2801-08030301A   suspension arm inner liner tube ¢ 10.5 * ¢ 15 * 55 8
8 2801-08030401A   suspension arm dustproof cover Wire coat black rubber 16
9 2801-08030101A   grease nipple  Brass M6 JB/T7940.1 8
10 A02-M10L078g   bolt M10*P1.25*78 M10 * P1.25 * 78 8.8 级 8
11 A09-M0000010   hexagon flange locknut M10 * P1.25 OD 8.8 8
12 A02-M10L050g   bolt M10*P1.25*50 M10 * P1.25 * 50 8.8 级 2
front suspension arm parts

      Description
S/N Part No.  Size Req.Quantity
13 2808-14020100B   front air shock absorber Oil and Gas Combined 465mm ø9 2
14 A02-M10L045g   bolt M10*P1.25*45 M10 * P1.25 * 45 8.8 级 2
15 2808-08010100A  [8] front upper suspension/left Weldment 1
16 2801-08010201A   ball joint nut M14 M14, surface Dacromet 2
17 A08-M0000016   hexagon nut M16 M16, surface Dacromet 2
18 2801-08010202A   ball joint upper Surface Dacromet 2
19 A12-00000012   flat washer ￠12.2*￠24*T2 ¢ 12.2 * ¢ 24 * T2 OD 4
20 A07-M0000012   nut ￠2.5*30   M12 * P1.5 OD 4
21 A19-D2d5L030   split pin  ¢ 2.5 * 30 OD 4
22 2801-10070100A   left steering knuckle Steel Castings 1
23 2808-08010301A  [9] front upper suspension, right Weldment 1
24 2801-10070200A   right steering knuckle Steel Castings 1

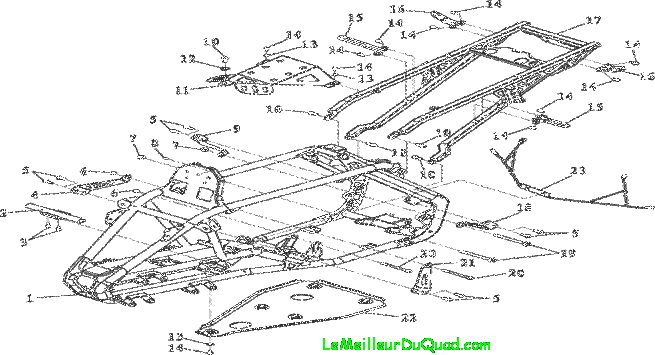

Frame Component

      Description
S/N Part No.    Size Req.Quantity
1 2808-02010100B  [10] FRAME Steel weldments 1
2 2804-22060201A   tube of foot rest net Steel weldments 1
3 A02-M06L016g   Bolt M6*16 M6 * 16 OD 8.8 2
4 2808-22050103B   front right fixed plate of motor Stamping 1
5 A02-M08L020g   Bolt M8*P1.25*20 M8 * P1.25 * 20 OD 8.8 8
6 A09-M0000008   hexagon flange locknut  M8 * P1.25 OD 8.8 2
7 A09-M0000010   hexagon flange locknut  M10 * P1.25 OD 8.8 2
8 2801-08030101A   grease nipple Brass M6 JB/T7940 1
9 2804-22050101A   rear right fixed plate of motor Stamping 1
10 A02-M08L025g   bolt M8*P1.25*25 M8 * P1.25 * 25 OD 8.8 5
11 2808-22050103B   strengthen plate of seat Aluminum 1
12 A12-00000008   flat washer ￠8.5*￠16*T1.5 ¢ 8.5 * ¢ 16 * T1.5 1
Frame Component

      Description
S/N Part No.    Size Req.Quantity
13 A12-00000006   flat washer ￠6.5*￠12*T1.5 ¢ 6.5 * ¢ 12 * T1.5 7
14 A02-M06L016g   bolt M6*16 M6 * 16 Army Green 8.8 15
15 2808-22050102B   plastic cover supporter 1   2
16 2808-22050103B   plastic cover supporter 2   2
17 2808-02020100B  [11] rear carrier  Weldment 1
18 2804-22050102A   rear left fixed blade of motor Stamping 1
19 A02-M10L110g   bolt M10*P1.25*110 M10 * P1.25 * 110 8.8 级 2
20 A02-M08L090g   bolt M8*P1.25*90 M8 * P1.25 * 90 OD 8.8 2
21 2808-22050104B   front left fixed plate of motor Stamping 1
22 2801-25010105A   plastic base plate Plastic Material: ABS 1
23 2808-22050101B   front kuppe cover supporter Steel weldments 1

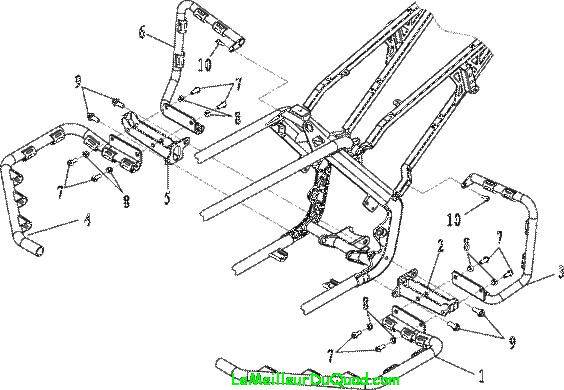

foot pedal and foot net component

      Description
S/N Part No.  Size Req.Quantity
1 2804-22070100A   front left foor net guardrail Pieces of aluminum 1
2 2804-22060100A  [12] foot pedal left part Steel weldments 1
3 2804-22070300A   back left foor net guardrail Pieces of aluminum 1
4 2804-22070200A   front right foot net guardrail Pieces of aluminum 1
5 2804-22060300A  [13] foot pedal right part   1
6 2804-22070400A   back right foot net guardrail Pieces of aluminum 1
7 A02-M08L020g   Bolt M8*P1.25*20 M8 * P1.25 * 20 OD 8.8 8
8 A09-M0000008   hexagon flange locknut M8*P1.25 M8 * P1.25 military green, 8.8 8
9 A02-M10L020g   bolt M10*P1.25*20 M10 * P1.25 * 20 8.8 级 4
10 A02-M06L016g   bolt M6*16 M6 * 16 Army Green 8.8 2

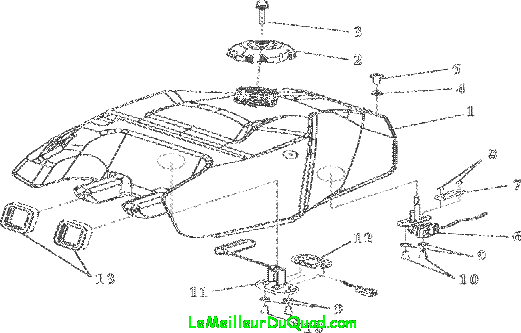

oil tank component

      Description
S/N Part No.  Size Req.Quantity
1 2808-15010201A   frel tank   1
2 2808-15010101A   frel tank cap    1
3 2804-15010102A   fuel air vent   1
4 A08-M0000006   nut M6 M6 Army Green 8.8 1
5 A02-M06L020g   bolt M6*20 M6 * 20 Army Green 8.8 1
6 2808-15010301B   fuel switch With spare oil switch 1
7 2808-15010302B   fuel switch sealing ring Black oil resistant rubber 1
8 2808-15010303B   fuel switch O-sealing ring Black oil resistant rubber 2
9 2808-15010304B   fuel switch washer  Plastic washers 2
10 A03-M006L12c   screw M6*12   M6 * 12 GB/T818-2000 2
11 2808-15010401A   oil lever sensor   1
12 2808-15010402A   sensor sealing ring  Black oil resistant rubber 1
13 2808-27030101B   front fixting rubber cap of oil tank Black oil resistant rubber 2

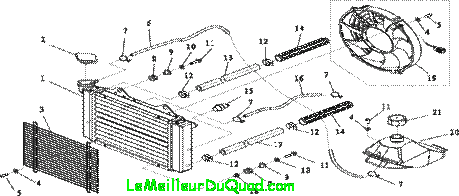

water tank component

      Description
S/N Part No.  Size Req.Quantity
1 2801-05010100A   radiator
2 2801-05010102A   radiator cap   1
3 2801-05010103A   radiator protection net   1
4 A12-00000006   flat washer ￠6.5*￠12*T1.5 ¢ 6.5 * ¢ 12 * T1.5 8
5 A03-M006L12c   screw M6*12  M6 * 12 GB/T818-2000 8
6 2801-05020600A   sub water tank connection tube   1
7 2808-05020800B   small hoop ¢ 12 * ¢ 8.5 * L900 small circulation pipe 4
8 2801-27030101A   rubber washer ￠12*￠26*T12 ¢ 12 * ¢ 26 * T12 4
9 2801-05010104A   rubber inner supporter pipe Pieces of aluminum 4
10 A12-00000006   flat washer ￠6.5*￠12*T1.5 ¢ 6.5 * ¢ 12 * T1.5 5
11 A02-M06L025g   bolt M6*25 M6 * 25 Army Green 8.8 5
12 2801-05020700A   water pipe hoop   4
13 2801-05020400A   outlet pipe ￠12*￠20*L550 ¢ 12 * ¢ 20 * L550 1
14 2801-05020900A   water pipe protection spring   2
15 2801-05010200A   thermostat    1
16 2801-05020500A   cycle water pipe L900 1
17 2801-05020300A   inlet water pipe ¢ 12 * ¢ 20 * L350 1
18 A09-M0000006   hexagon flange locknut M6 M6 OD 8.8 5
19 2801-05010300A   radiator fan   1
20 2801-05020100A   storage kettle   1
21 2801-05020200A   storage kettle cap   1

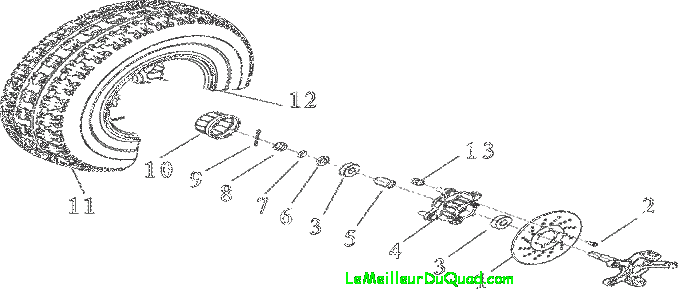

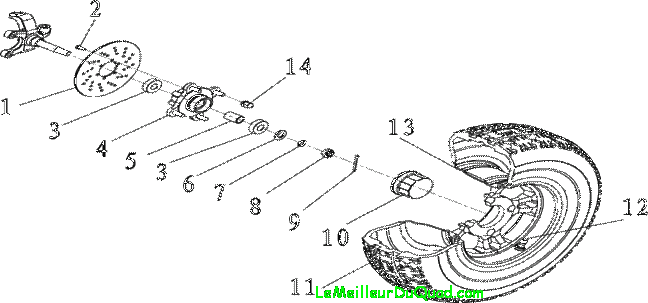

left steering component

      Description
S/N Part No.  Size Req.Quantity
1 2801-07010100A   FRONT BRAKE DISK ￠175 ¢ 175 * ¢ 48 * 3.5 1
2 A01-M06L016g   screw M6*16  M6 * 16 Army Green 8.8 12
3 A24-006203RZ   bearing 6203 Bearings: 6203RZ 2
4 2801-23010100A   front axle Color zinc plated 1
5 2801-23010101A   inner liner tube ￠22*￠18*31.5 ¢ 22 * ​​¢ 18 * 31.5 color zinc plated 1
6 A12-00000014   flat washer ￠14.8*￠27.5*T2  ¢ 14.8 * ¢ 27.5 * T2 OD 1
7 A14-00000014   spring washer ￠14.8  ¢ 14.8 OD 1
8 A07-M0000014   nut M14*1.5*14.1 M14 * 1.5 * 14.1 bottom thickness 9 Army Green 1
9 A19-D2d8L030   spilt pin ￠2.8*30 ¢ 2.8 * 30 Army Green 1
10 2801-29010104A   hub dustproof cover   1
11 2802-29010200A  [14] front off road tire 21*7.0-10 21 * 7.0-10 1
12 A10-M0000010   cap nut M10*P1.25   M10 * P1.25 GB/T802 4
13 2801-29010101A   FRONT RIM 10 "x5.5 1
right steering component

      Description
S/N Part No.  Size Req.Quantity
1 2801-07010100A   FRONT BRAKE DISK ￠175 ¢ 175 * ¢ 48 * 3.5 1
2 A01-M06L016g   screw M6*16  M6 * 16 OD 8.8 12
3 A24-006203RZ   bearing 6203 Bearings: 6203RZ 2
4 2801-23010100A   front axle Color zinc plated 1
5 2801-23010101A   inner liner tube ¢ 22 * ​​¢ 18 * 31.5 color zinc plated 1
6 A12-00000014   flat washer ¢ 14.8 * ¢ 27.5 * T2 OD 1
7 A14-00000014   spring washer ¢ 14.8 Army Green 1
8 A07-M0000014   nut M14*1.5*14.1 M14 * 1.5 * 14.1 bottom thickness 9 Army Green 1
9 A19-D2d8L030   split pin M14*1.5*14.1 M14 * 1.5 * 14.1 OD 1
10 2801-29010104A   hub dustproof cover   1
11 2802-29010200A  [15] front off road tire 21*7.0-10 21 * 7.0-10 1
12 2801-29010101A   FRONT RIM 10 "x5.5 1
13 A10-M0000010   cap nut M10*P1.25   M10 * P1.25 GB/T802 4
rear flat fork

      Description
S/N Part No.  Size Req.Quantity
1 A02-M14L275 i   BOLT  M14*P1.5*290 M14 * P1.5 * 275 / 10.9 级 1
2 2801-11010201A   rear fork outer liner  ¢ 15 * ¢ 22 * ​​20 2
3 A24-00006003   bearing 6003 Specifications 6003 GB / T 276 2
4 2805-11020000A   rear fork Welding parts (sheet metal) 1
5 2804-11010101A   rear fork inner liner  ¢ 16 * ¢ 20 * 190 1
6 A09-M0000014   hexagon flange locknut M14 * P1.5 Army Green 8.8 1
7 2805-27030201A   chain protection cap Black abrasion rubber 1
8 A05-M06L010g   screw M6*10 M6 * 10 Army Green 8.8 2
9 A02-M08L065g   bolt M8*P1.25*65 M8 * P1.25 * 65 OD 8.8 4
10 A09-M0000008   mhexagon flange locknut M8 * P1.25 Army Green 8.8 6
11 A22-D068L008   oil seal ￠50*￠68*8 Seal: ¢ 50 * ¢ 68 * 8 2
12 A21-00032008   bearing 32008 Ø68*Ø40*20.5 Bearing 32008 Ø68 2
13 2801-08030101A   grease nipple Brass M6JB/T7940 1
14 2805-12020100A   Bearing support   1
15 2805-07070100A  [16] disc brake fixed connection plate(Alu)   1

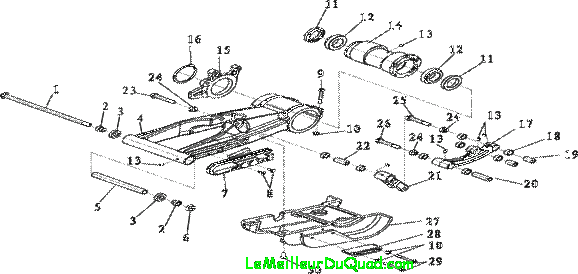

rear flat fork

      Description
S/N Part No.  Size Req.Quantity
16 A17-00000080   Clamping spring ¢ 80 * 2.5 74.5 within the outer 85 1
17 2805-11030100A  [17] A connecting rod Steel Castings 1
18 A21-00HK1812   Bearing HK1812 ¢ 18 * ¢ 24 * 12) 8
19 2801-11040202A   A-Lined pipe 30mm  ¢ 12.2 * ¢ 18 * 30 1
20 2801-11030201A   A-Lined pipe 60mm  ¢ 12.2 * ¢ 18 * 60 1
21 2805-11040100A  [18] B connecting rod  Steel Castings 1
22 2804-11040201A   B-lined pipe 42mm ¢ 12.2 * ¢ 18 * 42 1
23 A02-M12L100g   bolt M12*P1.25*100 M12 * P1.25 * 100 OD 8.8 1
24 A09-M0000012   metal hexagon flange locknut  M12 * P1.25 Army Green 8.8 3
25 A02-M12L064g   bolt M12*P1.25*64 M12 * P1.25 * 64 OD 8.8 1
26 A02-M12L084g   bolt M12*P1.25*84 M12 * P1.25 * 84 OD 8.8 1
27 2805-22090101A  [19] Chain protection support Rubber 1
28 2805-22090102A  [20] Support horse Rubber 1
29 A02-M08L065g   bolt M8*P1.25*65 M8 * P1.25 * 65 OD 8.8 2
30 A02-M08L025g   bolt M8*P1.25*25 M8 * P1.25 * 25 OD 8.8 4

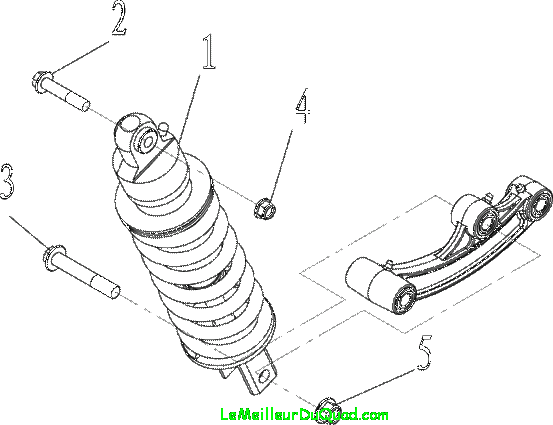

rear absorber component

      Description
S/N Part No.  Size Req.Quantity
1 2808-14020200B   REAR SHOCK ABSORBER Pitch 350mm ø12 * 40 1
2 A02-M10L050g   bolt M10*P1.25*50 M10 * P1.25 * 50 / 8.8 级 1
3 A02-M12L064g   bolt M12*P1.25*64 M12 * P1.25 * 64 / 8.8 级 1
4 A09-M0000010   metal hexagon flange locknut  M10 * P1.25 OD 8.8 1
5 A09-M0000012   metal hexagon flange locknut  M12 * P1.25 OD 8.8 1

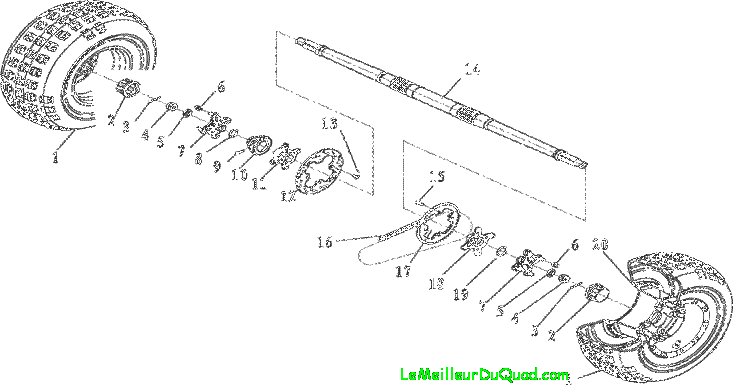

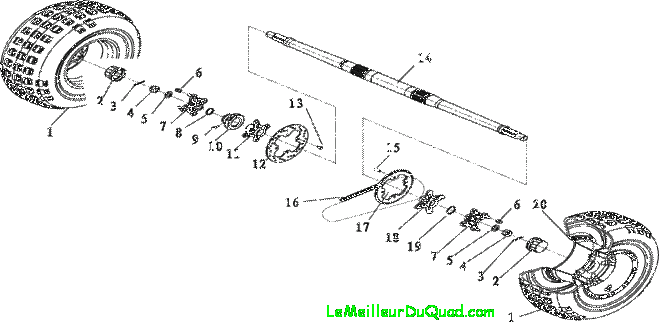

后桥总成组件 rear axle component

      Description
S/N Part No.  Size Req.Quantity
1 2802-30010200A   REAR TYRE 22 * 11-10 1
2 2801-29010104A   hub dustproof cover   2
3 A19-D2d8L040   split pin ￠2.8*40 ¢ 2.8 * 40 Army Green 2
4 A07-M0000020   nut M20*P1.5*14 M20 * P1.5 * 14 bottom thickness 14mm 2
5 A12-00000020   flat washer ￠20.2*￠37*T3 ¢ 20.2 * ¢ 37 * T3 2
6 A10-M0000010   cap nut M10*P1.25  M10 * P1.25GB/T802 8
7 2804-12070101A  [21] rear axle Bolt M10 * P1.25 * 30 2
8 A18-00000039   steel collar of shaft ￠39*4 ¢ 39 * 4 1
9 A02-M06L025g   bolt M6*25 M6 * 25 OD 8.8 1
10 2805-12080101A  [22] lock block M50*2-L M50 * 2-L Left Thread 1
11 2805-12050101A  [23] rear brake plate Steel Castings (Z = 38) 1
12 2804-07020100A  [24] rear brake disc ￠220 ¢ 220 * 4 1
rear axle component

      Description
S/N Part No.  Size Req.Quantity
13 A05-M08L016g   screw M8*P1.25*16 M8 * P1.25 * 16 OD 8.8 4
14 2805-12060101A  [25] rear axle shaft        L955mm Materials 40Grmo shaft Ø40mm 2
15 A02-M08L020g   bolt M8*P1.25*20 M8 * P1.25 * 20 OD 8.8 4
16 2801-24010100A   chain 428#   Model: 428 #, 122 1
17 2805-12040101A  [26] rear chain disk 428# 48 tooth 428 # 48 teeth 1
18 2805-12030101A  [27] chain disk foundation   Steel Castings (Z = 41) 1
19 A18-00000045   steel collar of shaft ￠45*4 ¢ 45 * 4 1
20 2801-30010101A   REAR RIM 10 "x7 2

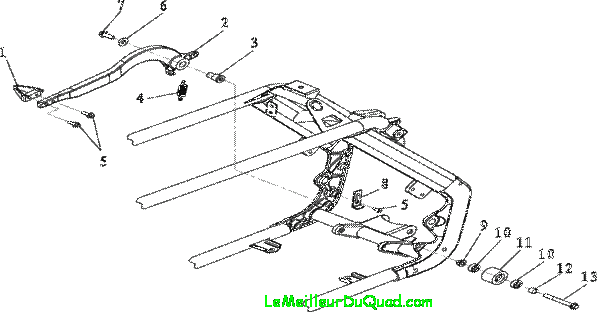

foot brakem guide chian wheel component
14脚刹组件

      Description
S/N Part No.  Size Req.Quantity
1 2804-07040201A  [28]   Aluminum
2 2804-07040100A  [29] foot brake pole Steel Castings (Central concave) 1
3 2804-07040301A  [30] foot brake shaft Lathe machining parts 1
4 2801-07060100A   spring ￠2*40 Wire diameter: ¢ 2 * 40 1
5 A02-M06L016g   bolt M6*16 M6 * 16 OD 8.8 3
6 A12-00000008   flat washer ￠8.5*￠20*T2 ¢ 8.5 * ¢ 20 * T2 1
7 A02-M08L020g   bolt M8*P1.0*20 M8 * P1.0 * 20 OD 8.8 1
8 2804-07040401A   foot brake limit block Stamping 1
9 A09-M0000008   metal hexagon flange locknut M8*P1.25 M8 * P1.25 OD 8.8 1
10 A24-000608ZZ   bearing 608ZZ Bearing: 608ZZ 2
11 2804-27020101A  [31] guide chian wheel Reinforced nylon 1
12 2804-27020201A  [32] guide chian wheel spacer  ¢ 12 * ¢ 8 * 9 1
13 A02-M08L050g   bolt M8*P1.25*50 M8 * P1.25 * 50 OD 8.8 1

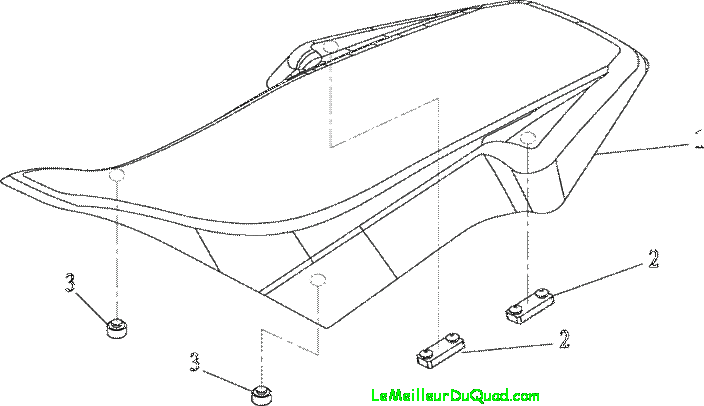

Seat

      Description
S/N Part No.  Size Req.Quantity
1 2808-26010000B   seat   1
2 2808-27030501A   anti shock rubber washer Black Rubber 2
3 2801-27030501A   anti shock rubber washer Black Rubber 2

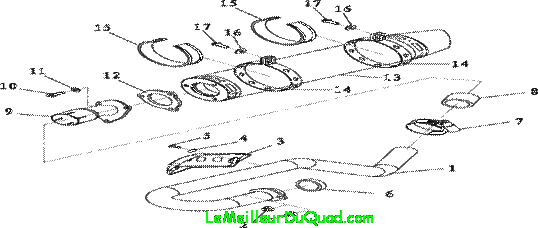

Muffler Component

      Description
S/N Part No.  Size Req.Quantity
1 2808-04010100B  [33] front tube of muffler  Front-end stainless steel spray sand treatment 1
2 A09-M0000008   Nut M8*P1.25 M8 * P1.25 OD 8.8 2
3 2810-04010400B  [34] anti hot plate   1
4 A14-00000006   spring washer ø6 ø6 2
5 A05-M06L012g   screw M6*12 M6 * 12 OD 8.8 2
6 2801-04010601A   muffler copper washer   1
7 2810-04010701B   muffler hoop   1
8 2810-04010501B   muffler graphite washer   1
9 2808-04010200B  [35] rear tube of muffler Rear section made ​​of iron, chrome plated 1
10 A02-M08L020g   bolt M8*P1.25*30 M8*P1.25*20 M8 * P1.25 * 20 OD 8.8 3
11 A12-00000008   flat gasket ￠8.5*￠16*T1.5 ¢ 8.5 * ¢ 16 * T1.5 3
12 2810-04010105B   muffler gasket   1
13 2810-04010300B  [36] muffler Impedance composite 97/24/EC 1
14 2810-04010702B   muffler hoop   2
15 2810-04010801B   anti slip washer   2
16 A12-00000008   flap gasket ￠8.5*￠22*T1.5 ¢ 8.5 * ¢ 22 * ​​T1.5 2
17 A02-M08L030g   bolt M8*P1.25*30 M8 * P1.25 * 30 OD 8.8 2
Rear Light.Indicator Lamp

      Description
S/N Part No.  Size Req.Quantity
1 2804-16100101A   indicator lamp E9/50R-001302 93/92 4
2 A08-M0000010   nut M10 M10 nuts, color zinc plated 4
3 2801-25010107A   Thread elastic washer M6 M6 2
4 2808-22050107B   indicator lamp fixed plate Stamping 2
5 A12-00000006   flap gasket ￠6.5*￠12*T1.5 ¢ 6.5 * ¢ 12 * T1.5 2
6 A05-M06L012g   Bolt M6*12 M6 * 12, Army Green 8.8 4
7 A09-M0000006   Nut M6 M6, military green, 8.8 5
8 2801-22050501A   license bracket Stamping 1
9 2801-20020101A   rear reflector   1
10 2804-16100101A   rear Tail Lamp E4-50R-000513 93/92/EEC 1
11 2804-22050105A   left front indicator lamp bracket  Stamping 1
12 2804-22050106A   right front indicator lamp bracket Stamping 1
Second Compensating Valve

      Description
S/N Part No.  Size Req.Quantity
1 2804-04020101A   fill valve gasket   1
2 2804-04020102A   fill valve tube Surface temperature paint 1
3 A02-M06L020g   bolts M6*20 M6 * 20 Army Green, 8.8 2
4 2804-04020103A   hoop   1
5 2804-04020104A   anti temperature tube   1
6 2804-04020105A   clamp   3
7 2804-04020106A   second compensating valve assy   1
8 2804-04020107A   tube   1
9 2804-04020107A   gasoline trap   1
10 A02-M06L020g   bolts M6*20 M6 * 20 Army Green 8.8 4
11 2804-04020201A   second compensating fixed plate   1
12 A09-M0000006   Nuts M6 M6 Surface Army Green 8.8 4
13 2804-04020108A   clamp spring   1
14 2804-04020109A   fuel tube   1
15 2801-06010101A   foot gear shift lever Surface plating 1
16 2801-06010102A   gear shift lever sleeve Black non-slip rubber 1
17 A01-M06L020g   bolts M6*20 M6 * 20 chrome plated 8.8 1

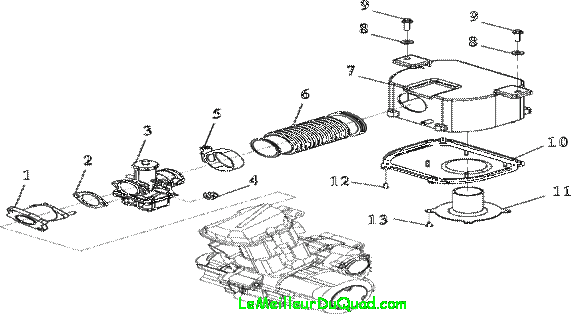

Induction System

      Description
S/N Part No.  Size Req.Quantity
1 2801-03010100A   induction pipe   1
2 2801-03010201A   induction pipe paper washer   1
3 2801-03020100A   carburetor/PZ27 PZ27, with cable throttle control 1
4 A09-M0000006   nuts M6 M6 OD 8.8 2
5 2801-03040101A   air filter hoop 35-51 White zinc plated 35-51 1
6 2801-03030100A   air filter soft tube  Oil and rubber 1
7 2801-03030200A   air filter With air filter cartridge 1
8 2801-27030201A   rubber gasket    Black rubber mat 2
9 A02-M06L025g   bolts M6*25 M6 * 25 OD 8.8 2
10 2801-03030400A   air filter cap 400A   1
11 2801-03030500A   air filter cap 500A   1
12 A06-ST004L15   Bolt ST4*15 GB845 ST4 * 15 GB845 OD 4
13 A06-ST3d5L10   Bolt ST3.5*10 GB845 ST3.5 * 10 GB845 OD 4

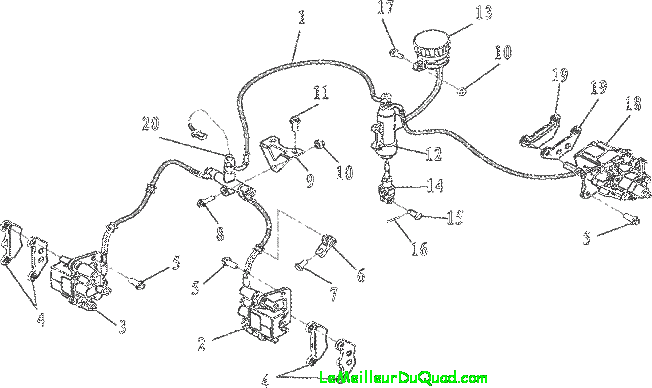

Braking System

      Description
S/N Part No.  Size Req.Quantity
1 2808-07030300B   brake assembly After the L1350 L650 L560 ago 1
2 2808-07030301A   front sub-cylinder assy(L) Surface passivation, aluminum color 1
3 2808-07030302A   front sub-cylinder assy(R) Surface passivation, aluminum color 1
4 2808-07030303A   front cylinder brake pad   4/2付
5 A02-M08L025g   bolts M8*P1.25*25 M8 * P1.25 * 25 OD 8.8 6
6 2801-07050101A   fuel tube fixed hoop Black 6
7 A05-M06L016g   screws M6*16 M6 * 16 Army Green 8.8 6
8 A02-M06L035g   bolts M6*35 M6 * 35 Army Green 8.8 1
9 2801-10050501A   fixed plate Stamping 1
10 A09-M0000006   nuts M6 M6 army green, 8.8 2
Braking System

      Description
S/N Part No.  Size Req.Quantity
11 A02-M08L020g   bolts M8*P1.25*20 M8 * P1.25 * 20 OD 8.8 4
12 2808-07030304A   pump assembly Including piston, dust cover 1
13 2808-07030305A   oil cup   1
14 2808-07030306A   brake pole With ejector, connecting fork 1
15 2808-07030307A   straight pin     1
16 A19-D002L040   cotter pin ￠2*20 ¢ 2 * 20 Army Green 1
17 A02-M06L020g   bolts M6*20 M6 * 20 Army Green 8.8 3
18 2808-07030308A   rear brake pump Surface passivation, aluminum color 1
19 2808-07030309A   rear brake pad    2
20 2808-07030310A   hydraulic sensor switch With wiring ports 1

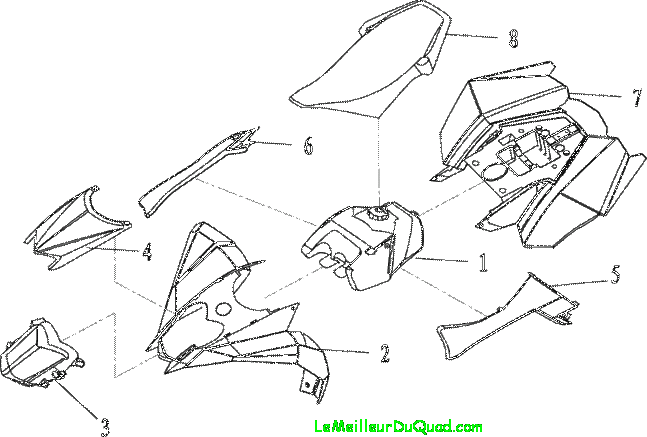

Plastic covers

      Description
S/N Part No.  Size Req.Quantity
  2808-15010200A   fuel tank    1
2 2808-25010101B   forebody plastic cover/ABS Plastic Material: ABS 1
3 2808-16100301B   front light/E4 12038 E4 12038 93/92/EE 1
4 2808-25010102B   light plastic cover/ABS Plastic Material: ABS 1
5 2808-25010103B   left kuppe plastic cover/ABS Plastic Material: ABS 1
6 2808-25010104B   right kuppe plastic cover/ABS Plastic Material: ABS 1
7 2808-25010105B   afterbody plastic cover/ABS Plastic Material: ABS 1
8 2808-26010000B   seat   1

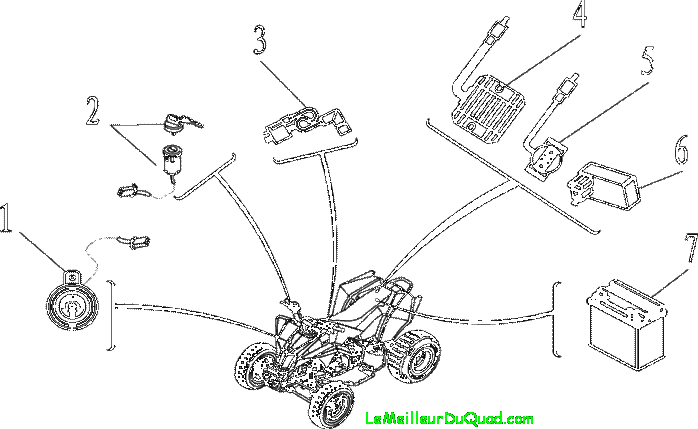

Electric Parts

      Description
S/N Part No.  Size Req.Quantity
1 2801-16080100A  [37] horn/E4-00066 E4-00066 / 93/30/EEC 1
2 2801-16070100A  [38] electric lock Two tranches of electric door locks 1
3 2801-16030100A   ignitor Cap with metal shield 1
4 2801-16050100A   rectifier   1
5 2801-16040100A   start relay   1
6 2801-16020100A   CDI   1
7 2801-16010100A   battery 12V， 9HA 1

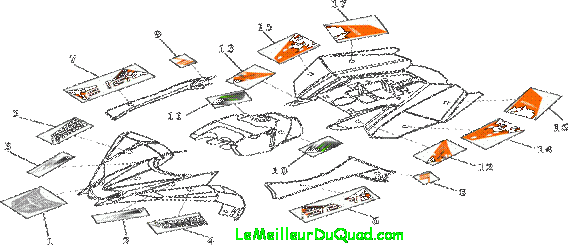

Stickers

      Description
S/N Part No.  Size Req.Quantity
1 2808-79010001A   Front cover sticker   1
2 2808-79010002A   forebody left sticker1   1
3 2808-79010003A   forebody right sticker1   1
4 2808-79010004A   forebody left sticker2   1
5 2808-79010005A   forebody right sticker2   1
6 2808-79010006A   left kuppe sticker 1 1
7 2808-79010007A   right kuppe sticker 1   1
8 2808-79010008A   left kuppe sticker 2   1
9 2808-79010009A   left kuppe sticker 2   1
10 2808-79010010A   fuel tank left sticker    1
11 2808-79010011A   fuel tank right sticker   1
12 2808-79010012A   afterbody left sticker1   1
13 2808-79010013A   afterbody right sticker1   1
14 2808-79010014A   afterbody left sticker2   1
15 2808-79010015A   afterbody right sticker2   1
16 2808-79010016A   afterbody left sticker 3   1
17 2808-79010017A   afterbody right sticker3   1
